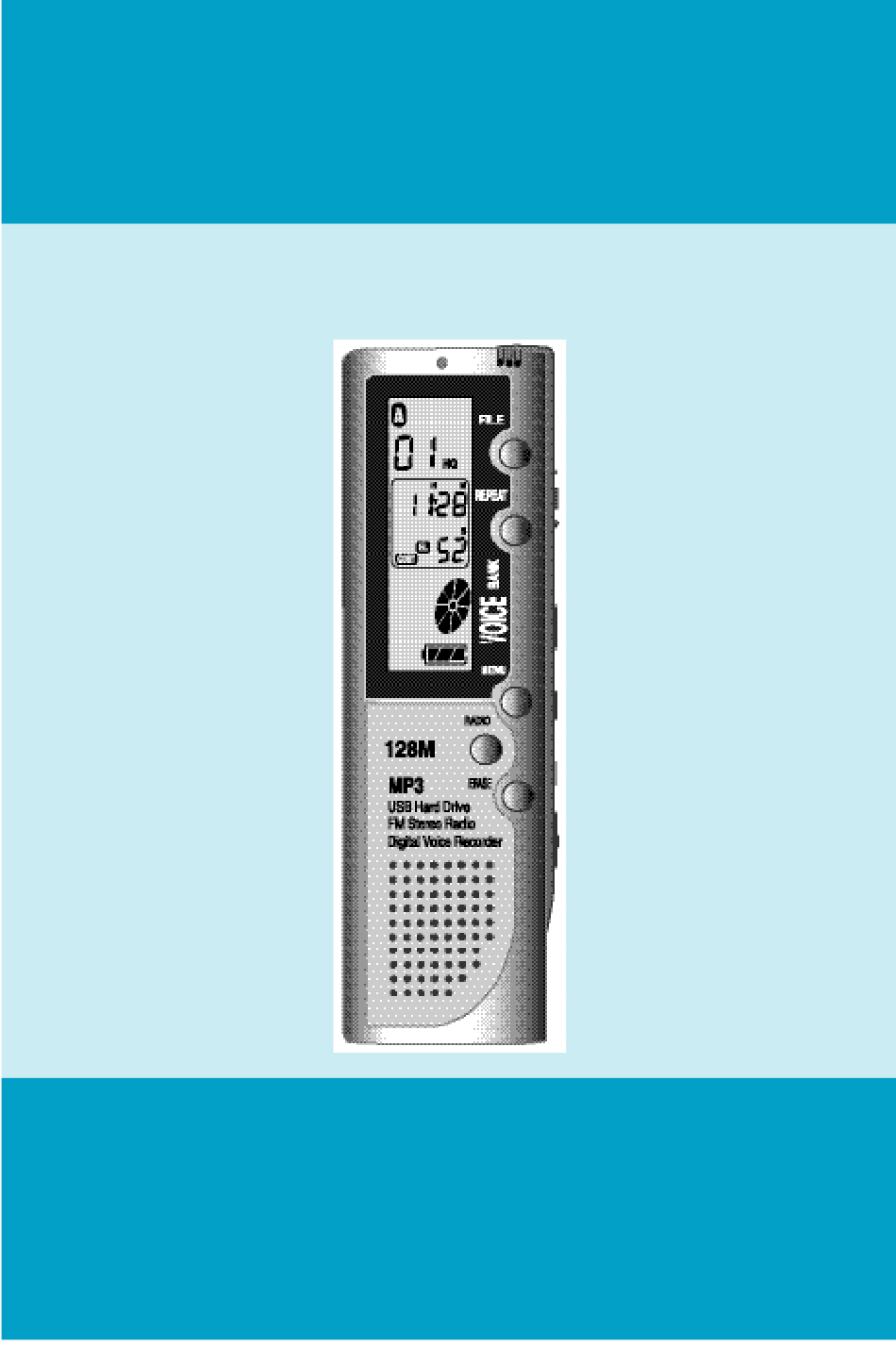

DIGITAL VOICE RECORDER & AUDIO PLAYER
MODEL : D D R - 3 0 3 2 / D D R - 3 0 6 4 / D D R - 3 1 2 8
D D R - 3 0 3 2 R / D D R - 3 0 6 4 R / D D R - 3 1 2 8 R
User's Manual
Thank you for choosing our DIGITAL VOICE RECODER&AUDIO
PLAYER of DIASONIC TECHNOLOGY Co. LTD. Before use, read
through the User's Manual carefully, then, enjoy the player
appropriately and safely. While using, we advise you to keep this
user's manual to avoid possible technical difficulties.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDR-3032 and is the answer not in the manual?

Questions and answers

Related Manuals for Diasonic DDR-3032

Summary of Contents for Diasonic DDR-3032

  • Page 1 D D R - 3 0 3 2 R / D D R - 3 0 6 4 R / D D R - 3 1 2 8 R User's Manual Thank you for choosing our DIGITAL VOICE RECODER&AUDIO PLAYER of DIASONIC TECHNOLOGY Co. LTD. Before use, read through the User's Manual carefully, then, enjoy the player appropriately and safely. While using, we advise you to keep this...
  • Page 2 COPYRIGHT ●Copyright ⓒ 2001, DIASONIC TECHNOLOGY CO. LTD. All rights reserved. No part of this User's Manual may be reproduced, translated or used for profits. It is against copyright law to violate these rules. The content of this User's Guide is produced under the greatest care of our company.

  • Page 3: Table Of Contents

    CONTENTS 1. DDR-3000/R SERIES 1) Suggestions for Users ・・・・・・・・・・・・・・・・・ 1 2) About DDR-3000/R SERIES ・・・・・・・・・・・・・・・ 2 3) Functions and Features ・・・・・・・・・・・・・・・・・ 3 4) Names of Each Part/ LCD Screen ・・・・・・・・・・・・ 5 5) How to Use Battery and Components of Package ・・・・・ 6 6) Basic Directions for Use・・・・・・・・・・・・・・・・・...

  • Page 4: Suggestions For Users

    ● DIASONIC TECHNOLOGY Co. cannot be held responsible for any kind of damage by the use of this product or reparation for injury by a third party [or individuals].

  • Page 5: About Ddr-3000/R Series

    DDR-3000/R SERIES is the recording and playback device with high quality of sound and with intensive and excellent technology of DIASONIC TECHNOLOGY. It provides customers various ways to record (SHQ/HQ/SP/Timer Recorder Function) and to play (ALARM/PLAY / speakers playback/ earphone playback/ real time playback), and you can also enjoy MP3 files, which are digital compression music files, in various ways.

  • Page 6: Functions And Features

    ● Additional DVR-EXPLORER / MAIL MANAGER DDR-3000/R SERIES is the player, which is convenient when transmitting recorded data, and MP3 files from one PC to another, and which helps regenerating, managing saved data and sending data through e-mail. ● ALARM/PLAY, TIMER/REC, SETTING UP TIMER DDR-3000/R SERIES sets up timer or alarm to record or play messages or songs at any time, and it helps recording or playback be processed smoothly.
  • Page 7 ● TIMER RECORDER FUNCTION: can receive and record radio broadcast automatically -daily, weekly or monthly. ● ALARM PLAY FUNCTION: can play messages automatically at requested time after setting time and date. ● Repeat & A-B Repeat function: can play as long as you want to, and you choose the intervals between two part that you want to listen.

  • Page 8: Names Of Each Part/ Lcd Screen

    Names of Each Part/ LCD Indicator USB JACK NECK STRAP Ext C-MIC.JACK EARPHONE JACK C-MIC FILE FF/PLAY/REW REPEAT REC/STOP D.C JACK MENU VOL+/VOL- RADIO ERASE HOLD ON/OFF FILE USE OF PORTABLE SAVING DEVICE MESSAGE NO. REC MODE REC TIME/PLAY TIME/ Mhz/ARS/EL/CONT/TIMER/ VOLUME/TIME REC/PLAY/USB DISK...

  • Page 9: How To Use Battery And Components Of Package

    Use of Battery and Components of Package 1. Open the cover of battery. 열림 2. Put two LR 03 batteries in accordance with (+) (-) of inside of the device, and put the cover back on. Battery: LR 03 or similar batteries of same kind (size "AAA" or UM-4) 3.
  • Page 10 4. Lifetime of Battery Playback through earphone Playback through speaker Battery in use Recording (Level of Volume: Medium) (Level of Volume: Medium) Alkaline Battery About 15 hr. About 9 hr. About 15 hr. Size "AAA" LR-03 5. Suggestions when using batteries ●...

  • Page 11: Basic Directions For Use

    Basic Directions for Use ● Power ON/OFF After pressing Playback or REC button for 1 second, power is on as soon as LCD screen displays as the picture shows below. If no button gets any order in 1 minute, player turns off power automatically.

  • Page 12: How To Use Buttons

    How to Use Buttons ● VOICE FILE SECTION(A/B/C/D) Key Action: — means short press, and —— means long press(more than 1 second). BUTTON KEY ACTION WHEN PLAYER IS NOT WORKING WHEN PLAYER IS RECORDING WHEN PLAYER IS PLAYING — Start playing current index Stop playing index Check the memory capacity ▶/■...
  • Page 13 ● FM RADIO SECTION(RADIO KEY) BUTTON KEY ACTION WHEN RECEIVING FM SIGNALS WHEN RECORDING FM RADIO BROADCAST — Start to create and set channels ▶/■ for each FM station — Select channel memory(01~10) and ▶▶ frequency Select channel memory(01~10)and — ◀◀...
  • Page 14 ● MP3 FILE SECTION(MP3) WHEN PLAYER IS PLAYING BUTTON KEY ACTION WHEN PLAYER IS NOT WORKING ㅡ Stop playing track Start playing current track ▶/■ ㅡㅡ Stop playing track Start scanning/playing from current track ㅡ Start playing the next track Conversion to next track ▶▶...

  • Page 15: How To Set Menu In Voice/Mp3/Fm Part ・・・・・・・・・12

    How to set Menu in VOICE/MP3/FM Part 1. Map of menu-Voice section S H Q MENU M O D E A R S O F F C O N T O F F Y E A R D A Y S E T M O N T H H O U R...
  • Page 16 2. Map of Menu-MP3 Part MENU EL(BACK LIGHT) O F F D A Y M O N T H H O U R M I N U T E D A T ( D A T E ) (ALARM) O F F S U N ~ S A T H O U R M I N U T E...

  • Page 17: Operation Of Playback Dial ・・・・・・・・・・・・・・・13

    Operation of Playback Dial Move Playback dial upward and downward, (2) press it in one way (you can press it in two ways)Handle the dial correctly as User's Guide reads. When setting menu, (1)move the button up and down(when it is moving up and down, playback dial does not work), and (2) press it.

  • Page 18: How To Record And To Set Up Mode・・・・・・・・・・・・15

    How to Record and to Set Up Mode ● How to record You can record up to 99 messages in each four A, B, C and D files. ① Press the button for each file, and select one on which you want to record.(Choose one among A/B/C/D) ②...
  • Page 19 ● How to Set ARS When you press MENU button and select ARS while player is not working, ARS is on, and it stop automatically when there is no sound so that you can save and minimize recording time. While ARS is in action, A-mode performs ARS PAUSE.

  • Page 20: Various Methods For Playback ・・・・・・・・・・・・・・17

    Various Methods for Playback ● How to Play Voice Part ① Choose the message that you want to listen. ② Choose one file among A, B, C and D, and select the file with FILE button. ③ By moving PLAYBACK dial up and down, select the number of the m e s s a g e .
  • Page 21 ● Search & Play If you press PLAYBACK dial for 2 seconds, the recorder will play its every message for just 10 seconds orderly. While the recorder is scan-playing, if you press PLAYBACK dial one more time, you can hear the message of the number you chose. As for playback of MP3, its Search &...

  • Page 22: Deleting And Controlling Data ・・・・・・・・・・・・・・・19

    Deleting and Controlling Data ※ Deleting massages is only possible when the player stops it's work completely. ● Deleting Messages One by One ① Choose one message that you want to erase. Select the message by moving FILE button and PLAYBACK dial. ②...
  • Page 23 TIMER/REC & ALARM/PLAY Function ※ For TIMER/REC, SET mode and time need to be fixed. ① If you press MENU buttons, "MODE" appears on LCD. Set “TMR(Timer)” by moving and pushing PLAYBACK dial. ② Delete "ON" by shifting PLAYBACK dial and set PLAYBACK dial. ③...
  • Page 24 ● Cancel of TIMER/REC ① Change "ON" to "OFF" in the second step of TIMER/REC (Cancel) ● Stop during TIMER/REC ① Press REC button ※ Caution -. Only one item of TIMER/REC is possible -one for each VOICE files/FM radio -.
  • Page 25 ● How to Set ALARM/PLAY Function ALARM/PLAY is the function which automatically starts the message that you selected before. ① Bring the message that you want to play with ALARM/PLAY function on LCD screen.(See No. 1 of How to Play to know specifically) ②...
  • Page 26 ● If you want to play messages at the same time everyday ① Set ARM(ARAM) up "ON" in the same way with step 1~3 of setting ALARM/PLAY function. ② By moving PLAYBACK dial up and down, select "DLY(DAILY)" and set up ③...

  • Page 27: How To Connect With External Appliances ・・・・・・・・・24

    How to Connect with External Appliances ● How to Connect with External Microphone -. Put the plug of a microphone into the external microphone terminal of the player. ※ When the external mike is connected with the microphone terminal of the player, internal microphone does not work. ●...
  • Page 28 ● Recording from external appliances When you record certain messages from external appliances, turn down the volume of the appliance, and then connect audio cable with it and start to record. When recording, set up the volume of the appliance as medium level, and try not to change it during the recording process.
  • Page 29 FM Signal-Receiving Function ※ Note: This function is available only for the models those have the function of radio. If you want high quality of sound when you listen to FM radio, use earphones. Insert the antenna into earphone jack if you want to use speakers. ※...

  • Page 30: What Is Dvr-Explorer? ・・・・・・・・・・・・・・・・・27

    What is DVR-Explorer? DVR-Explorer is a managing program for DDR-3000/R SERIES which transfer or plays MP3 files from computer to DDR-3000/R SERIES, it manages recorded voice or FM radio file (DVF) from DDR-3000/R SERIES and has following features. ● Transferring(upload/download) file to DDR-3000/R SERIES - MP3,DVF and normal data file ●...

  • Page 31: Connecting Ddr-3000/R Series And Setting Up Dvr-Explorer ・・28

    ROM:\setup.exe" or "CD-ROM:\DVR-Explorer \setup.exe". Setup will progress automatically, once setup is completed DVR-Explorer will be registered to "DIASONIC" in start program. (2) Using USB Cable connect USB port terminal from DDR-3000/R SERIES to USB port at PC. Then, "New Hardware detected" will execute and end automatically when using Window 2000.
  • Page 32 (6) Searched USB driver file and click on ' NEXT ' button. (7) Click on ' NEXT ' button to finish wizard. (8) Once USB drive setup is completed, check for setup progress from device manager at My Computer. ※ If DDR-3000/R SERIES is not found once DVR-Explorer is performed.

  • Page 33: Composition Of Dvr-Explorer ・・・・・・・・・・・・・・30

    Composition of DVR-Explorer Figure of DVR-Explorer Play Manage Window File File Manage Manage Window Window Flash Folder Memory Manage Manage Window Window Flash Memory Transfer list Manage Window Manage Window (1) Paying MP3, WAV, CD and DVF Double click on MP3, WAV, Audio CD Track and DVF file on file control window or use drag and drop to playlist for instant play.
  • Page 34 (2) Managing DVF file and MP3 file File managing part of DVR-Explorer is very similar to Window Explorer. Left part of the window shows the hard disk and CD-ROM drive installed in system with it's inside folders. Right part of the window shows various files inside folders.
  • Page 35 (4) Buttons Particular information Button Function Prints file list in flash memory. print Re-reads the information on flash screen. reload Choose the file stored in flash memory, delete then press this button to delete the file. Choose the files to be move to flash memory for file Transfer to flash manage window, then click this button to transfer memory...

  • Page 36: Spectrum Screen And Sound Effect ・・・・・・・・・・・・33

    Spectrum screen and sound effect DVR-Explorer shows fascinating spectrum screen. Basic setting is same as picture at bottom but, screen changes in various ways by clicking left button of mouse. ☜ Spectrum screen of DVR-Explorer 1 This changing spectrum screen can be used by users taste. Following pictures are example of some features.

  • Page 37: Transferring Mp3・・・・・・・・・・・・・・・・・・・・34

    Transferring MP3 It's very simple to transfer MP3 file to DDR-3000/R SERIES. Mentioned up at top, select MP3 files from file manage window and choose folder manage window. Then, drag and drop files to flash memory manage window. Also, click icon from flash memory managing section for same reaction.

  • Page 38: Sending Dvf Files To Computer ・・・・・・・・・・・・・・35

    Sending DVF files to computer It's very simple to send DVF files from DDR-3000/R SERIES to a computer. Choose from previously mentioned folder manage window, and select DVF files from flash memory manage window. Then, click 'upload to computer' icon from flash memory manage section.
  • Page 39 ● The way to transfer DVF file to DDR-3000/R SERIES is choose from album managing section then, select icon. Rest of procedure is same as transferring MP3 file to DDR-3000/R SERIES. Through steps like 34), 35). You can easily transfer DVF or MP3 files in flash memory.

  • Page 40: Deleting Mp3 And Dvf Files ・・・・・・・・・・・・・・・37

    Deleting MP3 and DVF files Deleting MP3 or DVF files stored in flash memory of DDR-3000/R SERIES is same as deleting files in explorer. Select one of the stored file from flash memory by clicking left mouse button, then press 'delete' button from tools at flash memory manage section.

  • Page 41: Resetting Flash Memory ・・・・・・・・・・・・・・・・・38

    Resetting flash memory Just like formatting hard disk on computer flash memory used in DDR- 3000/R SERIES can be reset (format). All the data from flash memory will be lost when formatted. ① Select 'file - format flash memory' a menu from DVR-Explorer. ※...

  • Page 42: Managing Files By Using Dvr-Explorer ・・・・・・・・・・39

    Managing files by using DVR-Explorer It's easy to manage MP3 and DVF files by using DVR-Explorer. Make folder at a position you want, copy and save frequently listened MP3 and DVF files. And, useless MP3 and DVF files can be easily deleted by using delete button.

  • Page 43: Mail Manager ・・・・・・・・・・・・・・・・・・・・・40

    Mail Manager Special Features ● Play/Record DVF file ● Voice mail function: auto appending at mail program ● Creates self play function : voice file+player ● Edit DVF file : delete front and rear, middle insert record function ● 16various voice effect Mail Manager is a program that plays self created voice file DVF from DDR- 3000/R SERIES.
  • Page 44 1) Voice Recorder Has Voice mail, Voice memo function, record and play of compressed feature of high sound quality DVF file. ● Play ● Pause/Stop ● Record (Half way insertion record possible) ● Move forward ● Move Backward 2) Convenient use method Auto-append of voice mail to mail program.
  • Page 45 5) Drag and Drop If use drag and drop function of mail manager attaching voice mail to other mail program or network emulator not supported by mail manager will be possible. Press left button of mouse on drag and drop To add voice mail to Voice file+player(.exe) other program.
  • Page 46 GENERAL SPECIFICATIONS (DDR-3000/R) MODEL DDR-3064 DDR-3128 DDR-3064R DDR-3128R SHQ: 590min SHQ:1180min SHQ:590min SHQ:1180min Recording HQ :1080min HQ :2160min HQ:1080min HQ :2160min time SP :1355min SP :2710min SP :1355min SP :2710min Recording mode SHQ(14.8Kbps) / HQ(8Kbps) / SP(6.4Kbps) A/B/C/D File Total 396 messages with 4 separate files(99 messages in each file) Automatic Recording System(A-Saving in one index after another, B-Saving in next index) Auto recording World Standard FM /Japanese FM...
  • Page 47 Search Easy to find convenient and easy tracks Repeat Playback of one track or all tracks & optional playback Network USB 1.1 Hard disk space of more than CPU 200MHz, RAM 64Mb and 20MB System requirement windows98 , windows2000 , windows ME , windows XP interface Sound Bluster 16 Sound card...
  • Page 48 Inquiry of A/S If you have trouble with the product, stop using the device immediately and ask for help and inquire A/S from the store or DIASONIC TECHNOLOGY Co, Ltd. Representative: 82-31-474-0852 Warranty Card(provisions) We guarantee you free repairs as User's Manual describes.
  • Page 49 5) When the player gets trouble caused by natural disaster such as fire, pollution, earthquake, flood and etc. 6) If liquid from batteries causes defect on the player. 7) When batteries are used up and needs to be changed. 4. This warranty card is only valid for service in Korea. (Suggestion for Mailing and Shipping) When you mail or post this product, please read these suggestions first.
  • Page 50 Telephone ● Whenever our products get out of order, please do not hesitate to call DIASONIC TECHNOLOGY CO., LTD and to ask for help. ● The provisions of compensation for exchanges, repair, rebate, terms of possesion and etc. are based on the standard of compensation of "Law of Consumer-Protection".
