Diasonic DDR-4500 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Product Highlights

• Stylish design and sturdy exterior with a wide LCD screen to maximize the display
• Receives all available AM and FM radio stations, and can also be programmed to record any AM or
FM broadcast in advance (20 timers for recording)
• Various programmed recording modes and time settings (specified Date/Week/Weekly)
• MP3/WMA Player
• Good AM/FM radio reception
• Voice recording with adjustable recording quality (32Kbps-256Kbps/MP3 format)
• Internal storage (2GB)
• External memory expandability (up to 16GB)
• Files can be copied to SD card or internal memory
• File dividing: From one file into several
• Internal Stereo Speakers (0.6W Stereo)
• Long lasting Li-ion polymer rechargeable battery (5V 900mA)
• 20 Timers for recording or playback at specified time & date settings
• 10 presets available in AM & 10 in FM
• USB 2.0 interface for easy data transfer to and from a computer
• 24-pin USB connection for faster data transfer
• Highly sensitive, built-in microphone. External microphone can be attached through "Mic/Line-
In" Jack
• Key lock function to prevent unintentional operation
• Sleep mode in 15, 30, 45, 60, 75, 90, 100, and 120 minutes
• Digital volume control (30 steps)
• Equalizer modes: Normal, Classic, Live, Pop, Rock,Jazz, Voice (low cut), and Filter-High
• Playback Modes: Play All, Play Once, Repeat All,Random Play, Repeat
• Fast forward/rewind: Search at 3 seconds/7 seconds/1 minute/2.5 minutes

Quick Start Guide

Fully charge the Battery before use.
Press and hold the PLAY ►∥ (6) button for 2 seconds
to turn the power on.

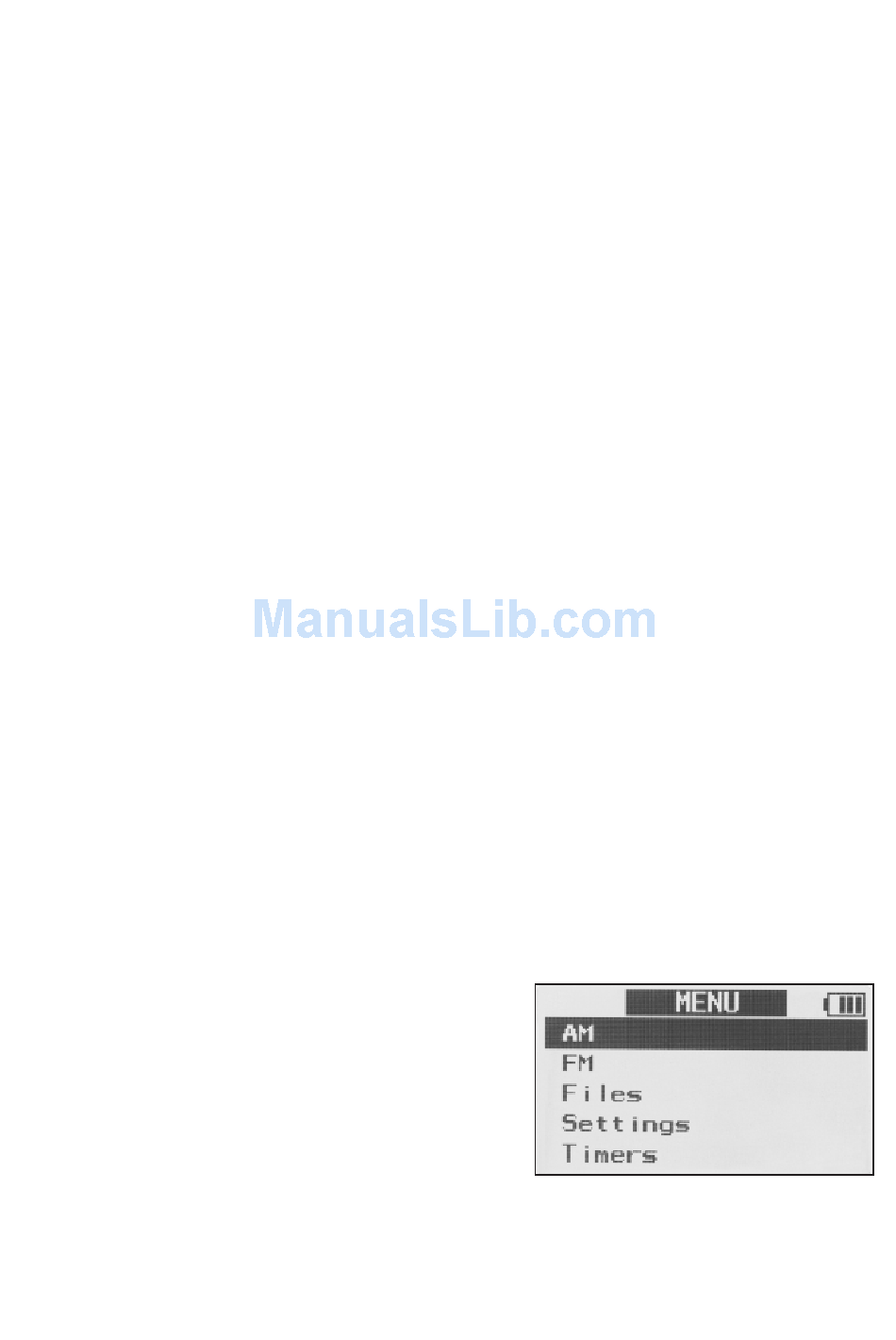

Note: The "MENU" screen is the starting point
for all functions. You can access the "MENU" screen
at any time by pressing the MENU Button (10).
To Highlight an item = Use the UP ▲(2) and DOWN ▼(7) Buttons.
To Select an item = Highlight the item, then press and release the PLAY Button ►∥ (6).
To Return to "MENU" = Use the MENU Button (10).

Advertisement

loading
Need help?

Need help?

Do you have a question about the DDR-4500 and is the answer not in the manual?

Questions and answers

Related Manuals for Diasonic DDR-4500

Summary of Contents for Diasonic DDR-4500

  • Page 1: Product Highlights

    Product Highlights • Stylish design and sturdy exterior with a wide LCD screen to maximize the display • Receives all available AM and FM radio stations, and can also be programmed to record any AM or FM broadcast in advance (20 timers for recording) •...
  • Page 2 1. To Set Time and Date — Highlight and then select “Settings”. Highlight and then select “System Settings”. Highlight and then select “Time and Date”. Use the RIGHT ►►(5) and LEFT ◄◄(8) buttons to move between hours, minutes, months, days, and years. Use the UP ▲(2) and DOWN ▼(7) buttons to modify the highlighted item. Use the PLAY Button ►∥...
  • Page 3 f. Increments selected items in the “Time and Date” setup. (3) BACK BUTTON The BACK Button has 4 functions: a. Exits current folder, function, or menu to previous location. b. Activates option to delete saved preset while playing AM or FM radio. c.
  • Page 4 (7) DOWN BUTTON ▼ The DOWN Button has 5 functions: P MENU BUTTON a. Highlights items for selection. b. Toggles through preset radio stations. c. Toggles to next file while playing. d. Marks or unmarks select days or time of the week in Timer Settings for recording or file playing.
  • Page 5 b. Hard Reset – This function is useful to solve malfunctions that the “Soft Reset” is unable to repair. Except for time and date, all previous settings will be reset to factory defaults. All files on the internal memory will be erased. i.
  • Page 6 on, all buttons will be disabled. To turn the CC Witness LOCK function “Off”, slide the LOCK Switche“down”. Note: You can turn the LOCK function “On” while the it is in operation. If a button is pressed while the LOCK function is “On”, the “Lock Switch On” displays for two seconds, along with the time and date.
  • Page 7 6. To Record — Press and release the REC Button (1) to record from the internal microphone or LINE/MIC jack. “AM” AND “FM” RADIO The “AM” & “FM” radio screens have 6 functions: 1. Playing AM or FM Radio – Select “AM” or “FM” from the “MENU”...
  • Page 8 4. Computer files — This folder is reserved for computer file storage. 5. Microphone files are stored in the “MIC” folder. 6. Line-in files are stored in the “LINE” folder. Note 1: All “Timer” recorded files are stored in the “Timer” folder without consideration to “AM”, “FM”,“MIC”, and “LINE”...
  • Page 9 Witness will jump to the newly recorded file and highlight it. To go back to the beginning of the “Files” menu, press the BACK Button(3) several times. “SETTINGS” SCREEN The “Settings” screen is categorized into 5 main groups: 1. “Play Settings” a.
  • Page 10 ii. “View all Files” — This setting groups all your files into one area. Your computer files show first on the top of this list, followed by AM radio files, then FM radio files, then Timer files, then Mic files, then Line files. Note: Long file names will scroll after 2 seconds when the name is highlighted.
  • Page 11 Note: Available recording time is calculated on the available free space where the file will be recorded. b. “Mic/Line Choice” — Choose from 3 input options for recording: 1. MIC (Mono) 2. MIC (Stereo) 3. LINE-IN (Stereo) c. “Create Tracks” — This setting is used when recording from a CD player, tape player, record player, or other external source.
  • Page 12 used when the backlight is “ON”. c. “Contrast Control” — Use the slider bar to adjust the contrast of the display. When set too low, the display will not be as visible. The default setting of “05” is usually best. d.
  • Page 13 bottom of this screen. “TIMERS” SCREEN The “Timers” screen has three main functions: 1. “Set Timers” Use the RIGHT ►►(5) and LEFT ◄◄ (8) buttons to modify timer settings. Use the UP ▲(2) W and DOWN ▼(7) buttons to move to the next or previous timer setting.
  • Page 14 2. “Review Timers” This screen displays the status of all 20 timers. Timers set to record are marked with an “R” next to the timer number. Timers set to play are marked with a “P” next to the timer number. It is possible to review and modify a timer’s settings by pressing the PLAY Button ►∥(6) when the timer is highlighted.
  • Page 15 If either of the additional files is divided again then this process will repeat. 4. “Mark File” — Mark a file as “Favorite File” or “Mark Spot” to bookmark a play location in a file for later reference. a. “Mark Spot” — While playing a file select “Mark Spot” to a reference point above the play bar.
  • Page 16 Note: This function is great for learning a new language; you can repeat a section of the lesson over and over again. Mark “Spot” — Press the BACK Button (3)while playing in order to bookmark your spot for later use. For more about marking spots Edit —...
  • Page 17 (usually found in the Dock). Another method is to Control-Click and select “Eject” from the drop-down menu. Model: DDR-4500 ANSI C63.4: 2003 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS.
