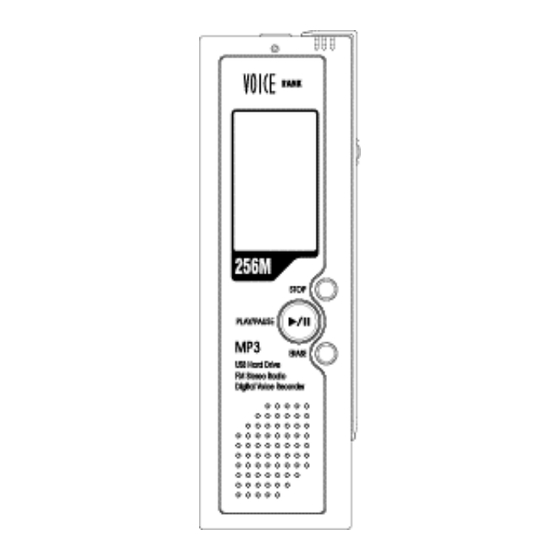

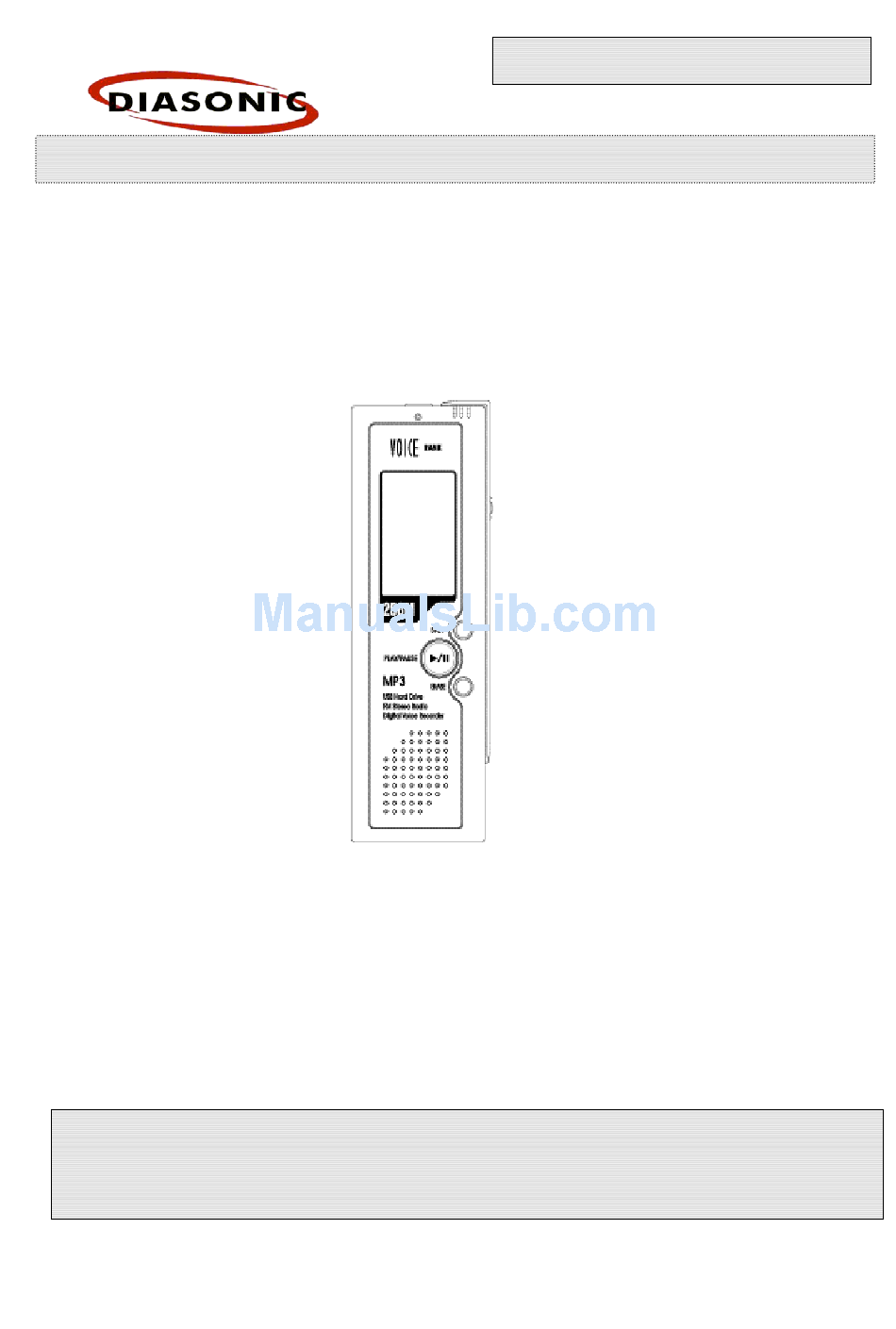

DIGITAL VOICE RECORDER
MODEL : DDR-5100
User Guide manual
Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC TECHNOLOGY Co.
Please carefully read the Instruction manual for safe use of the product. We recommend that you to
keep this instruction manual for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDR-5100 and is the answer not in the manual?

Questions and answers

Related Manuals for Diasonic DDR-5100

Summary of Contents for Diasonic DDR-5100

  • Page 1 MODEL : DDR-5100 User Guide manual Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC TECHNOLOGY Co. Please carefully read the Instruction manual for safe use of the product. We recommend that you to keep this instruction manual for future reference.
  • Page 2 Be sure to make a note of important content. ● Diasonic assumes no responsibility for any damage caused by change or loss of memory content. ● Do not drop the unit in the water or keep it in any damp environment.

  • Page 3: Safety Precautions

    Safety Precautions Warning ● Keep the batteries out of reach of the children. If a child swallowed a battery, please consult a doctor immediately. ● Do not have the battery shorted, disassembled, heated or put in fire. This may cause leakage, heat, explosion or fire.

  • Page 4: Table Of Contents

    Contents Precautions 1. Functions and Features 2. Parts and Components 3. Basic Operation Guide 4. Button 5. Receiving FM Radio 6. Mode Menu 7. Main Menu 8. Recording in Recording Mode 9. Connecting to external audio device 10. Installation of Win98SE driver 11.

  • Page 5: Functions And Features

    Functions and Features DIGITAL VOICE RECORDER ▣ UP TO 16,960 MIN RECORDING TIME(SP MODE AND 1GB) 8FOLDERS TO ORGANIZE FILES STORE UP TO 128 FILES FOR EACH FOLDER CONTINUE FOLDER FUNCTION: AUTOMATICALLY MOVE TO NEXT FOLDER IF INFEX IS FULL. VARIABLE RECORDING MODE (SHQ/HQ/SP IN MP3 FORMAT AND USER MODE IN MPEG1 LAYER3) MIC SESITIVITY ADJUSTABLE IN RECORDING.
  • Page 6 SET UP THE ALARM TO PLAY AUTOMATICALLY AS A REMINDER TO MEETING, BIRTHDAY AND MORE. EASY-TO-READ ALL STATUS ON THE LARGE BACKLIGHT LCD DISPLAY WITH DOT MATRIX VARIABLE FLASH MEMORY UP TO 1G(64MB/128MB/256MB/512MB/1GB) 23HOURS PLAY BACK WITH 2 AAA BATTERIES...

  • Page 7: Parts And Components

    Parts and Components (1) Main set HAND STRAP HOLE USB JACK EXTERNAL C-MIC / EARPHONE JACK LINE-IN JACK INTERNAL MIC MENU REC/PAUSE DC JACK STOP VOLUME+/- PLAY/ PAUSE ERASE HOLD...
  • Page 8 (2) LCD MODE INDEX INFORMATION FILE INFORMATION SYNC/BIT RATE/EQ/SPEED KEY/REPEAT TIME ALRAM ON/OFF ARS INTRO PLAY REPEAT 3D SOUND EFFECT VOLUME LEFT/RIGHT HOLD BATTERY STATUS TIMER ON/OFF ALARM ON/OFF ARS ON/OFF 3D SOUND ON/OFF REPEAT INTRUDUCTION PLAY BACK L/R SPECTRUM BATTERY STATUS (3) BATTERY 1) PUT BATTERIES (LR03 TYPE)
  • Page 9 2) BATTERY POWER STATUS INDICATOR FULL CHARGED SOME POWER CUSTOMED THINKING OF CHANGING BATTERY CHANGE BATTERY ☞ CHECK THE POLARITIES OF THE BATTERIES IF LCD DISPLAY DOESN’T TURN ON AFTER INSERTING NEW BATTERIES. 3) TYPICAL BATTERY LIFE TIME BATTERY TYPE RECORDING PLAYBACK VIA SPEAKER PLAYBACK VIA EARPHONE...
  • Page 10 BASIC FUNCTION (1) TURN ON/OFF TO TURN ON, HOLD THE OR REC/STOP KEY FOR 2-3 SECONDS. TO TURN OFF, HOLD THE STOP KEY AGAIN WITH LONG KEY. ☞ IF USB CABLE IS CONNECTED, AUTOMATICALLY POWER IS ON. ☞ IF YOU PUT THE BATTERY TO SET, “A” FOLDER IN THE VOICE MODE WILL DISPLAY.
  • Page 11 (5) INTRO PLAY THIS IS FOR PLAYING THE FIRST FEW SECONDS OF EVERY TRACK FOR QUICK REVIEW OF VOICE FILES OR MUSIC. PRESS “PLAY AND PAUSE” BUTTON DURING PLAYING BACK. THE ICON APPEARS ON THE LCD AND THE FIRST 5, 10 OR 15SECONDS OF EVERY TRACK PLAY, DEPENDING ON THE SELECTED TIME.
  • Page 12 (11) EQUALIZER ON PLAYING MP3 FILE BACK, USER CAN SELECT NORMAL/CLASSIC/LIVE/POP/ROCK BY PRESSING “ERASE” BUTTON. NORMAL/CLASSIC/LIVE/POP/ROCK IS CHANGED BY PRESSING “ERASE”.

  • Page 13: Button

    BUTTONS (1) VOICE MODE THE STATUS OF SET BUTTON OPERATION STOP PLAYBACK RECORDING PLAY/ SHORT PLAYBACK PAUSE REMAINING TIME PAUSE LONG INTRO PLAY INCREASE INDEX(AFTER SHORT GO TO NEXT FILE GO TO NEXT FILE AND PLAY 5SECONDS) LONG GO TO NEXT FILE S-FORWARD CURRENT FILE SEQUENTLY GO TO BEGANNING OF THE FILE, IF...
  • Page 14 (2) FM RADIO MODE MODE BUTTON OPERATION SET UP THE FREQUENCY MODE PRESET MODE STATION ENTERING SETTING SHORT SETTING STATION STATION PLAY/PAUSE LONG PRESET MODE FREQ. MODE TUNE FM FREQ. FORWARD NEXT PRESET SHORT CHANNEL UP SLIGHTLY LONG AUTO SEEK + TUNE FM FREQ.
  • Page 15 THE STATUS OF SET BUTTON OPERATION STOP PLAY RECORDING SHORT PLAY PAUSE REMAIN TIME PLAY/PAUSE LONG TURN OFF INTRO PLAY SHORT GO TO NEXT FILE GO TO NEXT FILE AND INDEX UP AFTER 5 SECS. PLAY LONG GO TO NEXT FILE S-FORWARD CURRENT SEQUENCE FILE...
  • Page 16 FM Radio (1) TURN ON FM TURN ON THE SET AND SELECT FM IN THE MENU. (2) AUTOMATIC TUNEING FOR The AUTOMATIC TUNEING. PRESS AND HOLD FORWARD REWIND BUTTON 2SECONDS. TUNNER AUTOMATICALLY SCAN AND STOP ON THE NEXT STATION WITH A STRONG SIGNAL. IN AREA WITH WEAK RECEPTION, PRESS THE FAST FORWARD OR REWIND BUTTON TO FIND A CLEAR STATION.

  • Page 17: Mode Menu

    MODE MENU YOU CAN GO TO “MODE MENU” BY PRESSING “MENU” BUTTON FOR 1 SECOND. MODE MENU IS CONSIST OF BELOW MODE. TO MOVE TO ANOTHER MODE, USE “REW/FF“ BUTTON. B-MARK VOICE MUSIC L-IN ENC FM ENC FOLDER B-MARK (1) VOICE PLAY BACK VOICE FILE RECORDED IN VA001-008KBPS_20040101_010101.MP3 TYPE.
  • Page 18 (6) B-MARK * B-MARK STORE FAVOITE SONGS.(2OFILES ARE AVAILABLE.) BOOKMARK IS SET BY PRESSING STOP BUTTON ON THE MUSIC, L-IN ENC, FM_ENC MODE. BOOKMARK IS DISPLAYED ON THE FILE INFORMATION. * M3U(WIN AMP) INITIALY PLAYLIST FOLDER EXSITS AND M3U FORMAT FILE CAN BE SAVED AND PLAYED.

  • Page 19: Main Menu

    MAIN MENU TO ENTER INTO “MAIN MENU”, PRESS “MENU”BUTTON FOR 2-3SECONDS. “REW/FF” BUTTON WORKS AS A MOVING BUTTON TO ANOTHER FUNCTION AND PRESS “MENU” OR “PLAY/PAUSE” BUTTON FOR SELECTION OF THE FUNCTION YOU WANT. BY PRESSING “REC/PAUSE” BUTTON AGAIN, YOU CAN GO OUT OF SUBORDINATE MENU. IF YOU DO NOT OPERATE ANY BUTTON AFTER ENTERING INTO MENU FOR 30 SECONDS, AUTOMATICALLY MENU FUNCTION WILL BE RELEASED.
  • Page 20 - ON THE SETTING DISPLAY, NO. 1 CHANNEL WILL BE BLINKING. - MOVE TO THE SPECIFIC NO. YOU WANT TO SET UP BY PRESSING “REW/FF” BUTTON AND PRESS “MENU” OR “PLAY/PAUSE” BUTTON FOR SELECTION. ※ SETTING UP TIMER REC - THE FUNCTION HAS DATE/DAILY/WEEKLY, 3 MODES. 1.
  • Page 21 ③ ALARM PLAY : THE FILE SELECTED PLAYS BACK ON TIME WHEN IS SET UP IN ADVANCE. (10PCS AVAILABLE) ※ SET UP THE ALARM PLAY (이하 설정은 TIMER REC와 동일합니다.) - THIS FUNCTION HAS DATE/DAILY/WEEKLY MODE. 1. DATE (1 TIME) a.
  • Page 22 ⑥ INTRO TIME : 5SEC, 10SEC, 15SEC PLAYING FILE BACK FOR THE TIME YOU SET UP. SOUND THIS MENU HAS EQUALIZER, 3D SETTING, DEFAULT VOLUME. ① EQUALIZER : NORMAL, CLASSIC, LIVE, POP, ROCK YOU CAN SELECT THE EQUALIZER YOU WANT. ②...
  • Page 23 ④ BACKLIGHT TIME : OFF,1~9 SEC,ALWAYS ON TIME FOR BACKLIGHT ON AND OFF(OFF-9SEC) ⑤ LCD CONTRAST : 1~10 LEVEL FOR BRIGHTNESS OF LCD(1-10LEVEL) SYSTEM THIS IS FOR PLAYER’S SYSTEM CONTROL. THIS CONSISTS OF LANGUAGE, REPEAT, SYNC, ARS, INPUT SELECTOR, MIC SENSITIVITY, RESUME, BITRATE, FM BAND, CONTINUE FOLDER, FORMAT, DEFAULT.
  • Page 24 ⑤ INPUT SELECTOR : LINE-IN / EXTERNAL-MIC IN RECORDING, SELECT THE RECORDING METHOD. ⑥ MIC SENSITIVITY : MIC LOW, MIC HIGH SET UP THE SENSITIVENESS OF MICROPHONE. ⑥ RESUME : ON, OFF WHEN TURNNING ON AGAIN, THE SET RETURNS TO ITS CONDITION BEFORE TURNNING OFF.
  • Page 25 ⑩ FORMAT : YES, NO FORMAT ALL DATA RECORDED ON MEMORY. ☞ IT WON’T WORK IN PLAY/PAUSE & FM MODE. DO IT WITH ENOUGH BATTERY POWER. DO NOT TAKE THE BATTERY OUT IN FORMATING. ⑪ DEFAULT : YES, NO INITIALIZE ALL SETTING AND RETURN TO DEFAULT.

  • Page 26: Recording In Recording Mode

    Recording in RECORD Mode (1) RECORDING METHOD THE SET HAS 4 WAYS TO RECORD AS BELOW. 1) RECORDING THRU INTERNAL MIC: JUST PRESS “REC” BUTTON. 2) RECORDING THRU EXTERNAL MIC: PLUG EXTERNAL MIC INTO LINE IN JACK. SELECT EXTERNAL MIC ON SYSTEM/INPUT SELECTOR. PRESS “REC”...

  • Page 27: Connecting To External Audio Device

    CONNECTING EXTERNAL DEVICE (1) RECORDING FROM EXTERNAL DEVICE OR SET 1) RECORDING EXTERNAL DEVICE TO DDR-5100 CONNECT THE PROVIDED AUDIO CABLE TO LINE IN JACK ON THE SET. 2) RECORDING DDR-5100 TO EXTERNAL DEVICE CONNECT THE PROVIDED AUDIO CABLE TO EARPHONE JACK ON THE SET AND MICROPHONE OR LINE IN ON THE EXTERNAL DEVICE.

  • Page 28: Installation Of Win98Se Driver

    IF YOU CELLULAR IS NOKIA BRAND, YOU MUST CHECK “CELLULAR EAR MICROPHONE” IS COMPATIBLE OR NOT. INSTALLATION OF WIN98SE DRIVER It supports USB Mass Storage and it can be used as hard drive. It can be connected to PC directly without any application by Plug & play method on Window Me, 2000, XP except for Windows 98SE.
  • Page 29 (2) In case of WINDOW 98 SE 1 INSERT THE PROVIDED CD & IT WILL INDICATE HOW TO INSTALL. 2 Check “DVR-WIN98SE.EXE” 3 CLICK “INSTALL 98UMS DRIVER” AND AUTOMATICALLY INSTALL.
  • Page 30 4 WHEN IT IS COMPLETED, BELOW POP-UP WILL APPEAR. CLICK “YES” CLICK FOR REBOOTING THE COMPUTER. AFTER REBOOTING, CONNECT THE SET & PC THRU USB CABLE. BELOW WINDOW WILL APPEAR. 7 EVERYTHING IS SUCCEED, ITCAN BE APPEARED AT SYSTEM PROPERTIES. * REMOVING USB MASS STORAGE SAFELY.
  • Page 31 (1) WIN ME, 2000, XP WHEN THE SET REMOVE FROM CONNECTION, IT SHOULD DO IT THRU PROPER PROCEDURE AS BELOW. IF NOT, IT MIGHT CAUSE SERIOUS PROBLEM IN DATA. 1 CLOSE THE FILE TO OPEN. CLICK “ “ BELOW THE WINDOW OF PC. IF SO, TOOL BAR AS BELWO WILL APPEAR AND CLICK THE TOOL BAR.
  • Page 32 USB Driver Auto Removing Program THE PROVIDED CD CONTAINS UNINSTALLING PROGRAM AUTOMATICALLY. 1 INSERT THE PROVIDED CD. 2 BOUBLE CLICK “DVR-WIN98SE.EXE” 3 CLICK “REMOVE DRIVER” 4 WHEN IT COMPLETE, BELOW WILL APPEAR AND CLICK “OK”.
  • Page 33 Managing Folders and Files (1) Default folders ◈ When you connect the unit to PC, you can find that the VOICE, L-IN_ENC, FM_ENC & PLAYLIST folders are created as a default. (2) ALL FILE FORMATS CAN BE STORED AND REMOVED. (3) AUDIO MODE IS NOT DEFAULTED LIKE VOICE, L-IN_ENC, FM_ENC.
  • Page 34 ☞ THE CREATED FOLDER BY USER CAN BE CHECKED AT FOLDER ON THE MODE MENU AND ONLY MUSIC FILE IS DISPLAIED ON MUSIC MODE. FOLDER DOES NOT APPEAR. (4) LINE IN MODE ☞ LINE IN MODE contains the recorded files from external devices through the line-in cable. ☞...
  • Page 35 (5) VOICE MODE ☞ VOICE MODE contains the voice recording files. ☞ When recording data, up to 1024 files can be created in sequence. If the number of files exceeds1024, the “INDEX FULL” message is displayed.
  • Page 36 DELETING THE FILE THIS WORK IS SAME AS DONE IN PC.
  • Page 37 Downloading Files Copy music files or data from PC folder and download them to device.
  • Page 38 FORMATTING File FORMAT on PC ○ 1 Go to [My Computer], choose portable disk(F:) and click right button of mouse. Following toolbar appears. At the time, click format. ○ 2 Click ‘start’ when following window appears. ☞ THIS SET DOSE NOT SUPPORT “FAT32”. FORMAT MUST DO IN SETTING “FAT”. ○...
  • Page 39 ○ 4 Format is completed. ☞ DO NOT TAKE THE SET AWAY DURING FORMATTING. IT MAKE SERIOUS PROBLEM TO SET. IF FORMATTING IN FAT32, DO IT BY FAT AT THE PC AGAIN. AFTER REMOVING THE SET FROM PC IN FORMATTING WITH FAT32, “SYSTEM ERROR PLEASE FORMAT”...

  • Page 40: Upgrading Firmware

    FIRMWARE UPGRADE This device has the feature which is to improve function and correct error by upgrading firmware. You can download upgrade file by connecting to website. COPY THE FIRMWARE AT THE ROOT DIRECTORY IN THE SET. REMOVE THE SET & TURN OFF. WHEN TURN ON, IT WILL UPGRADING AUTOMATICALLY AS BELOW.

  • Page 41: Specification

    General Specification DDR-5100R DDR-5100R DDR-5100R DDR-5100R MODEL (064) (128) (256) (512) SHQ:260min, SHQ:530min, SHQ:1060min, SHQ:2120min, RECORDING TIME HQ:520min, HQ:1060min HQ:2120min HQ:4240min SP:1040min SP :2120min SP :4240min SP :8480min RECORDING MODE MP3 FORMAT : SHQ(32Kbps) / HQ(16Kbps) / SP(8Kbps) FOLDER A/B/C/D/E/F/G/H (8 FOLDER) Total 1024 Messages with 8 Separate Folder (128 Messages in Each Folder) Automatic Recording System (A-TYPE: ONE INDEX, B-TYPE: +INDEX)
  • Page 42 SEARCHING Easy track search & track search REPEAT Normal/ One/ One All/ All/ Shuffle/ A↔B INTERFACE Mass Storage USB 1.1 SYSTEM CPU 200MHz more than , RAM 64MB more than, 20MB of free space interface windows98SE , windows2000 , windows ME , windows XP, OVER Mac OS9.2, OS10 SOUND CARD Sound blaster 16 compatible DISPLAY...
  • Page 43 --- Additional User information --- Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
