6

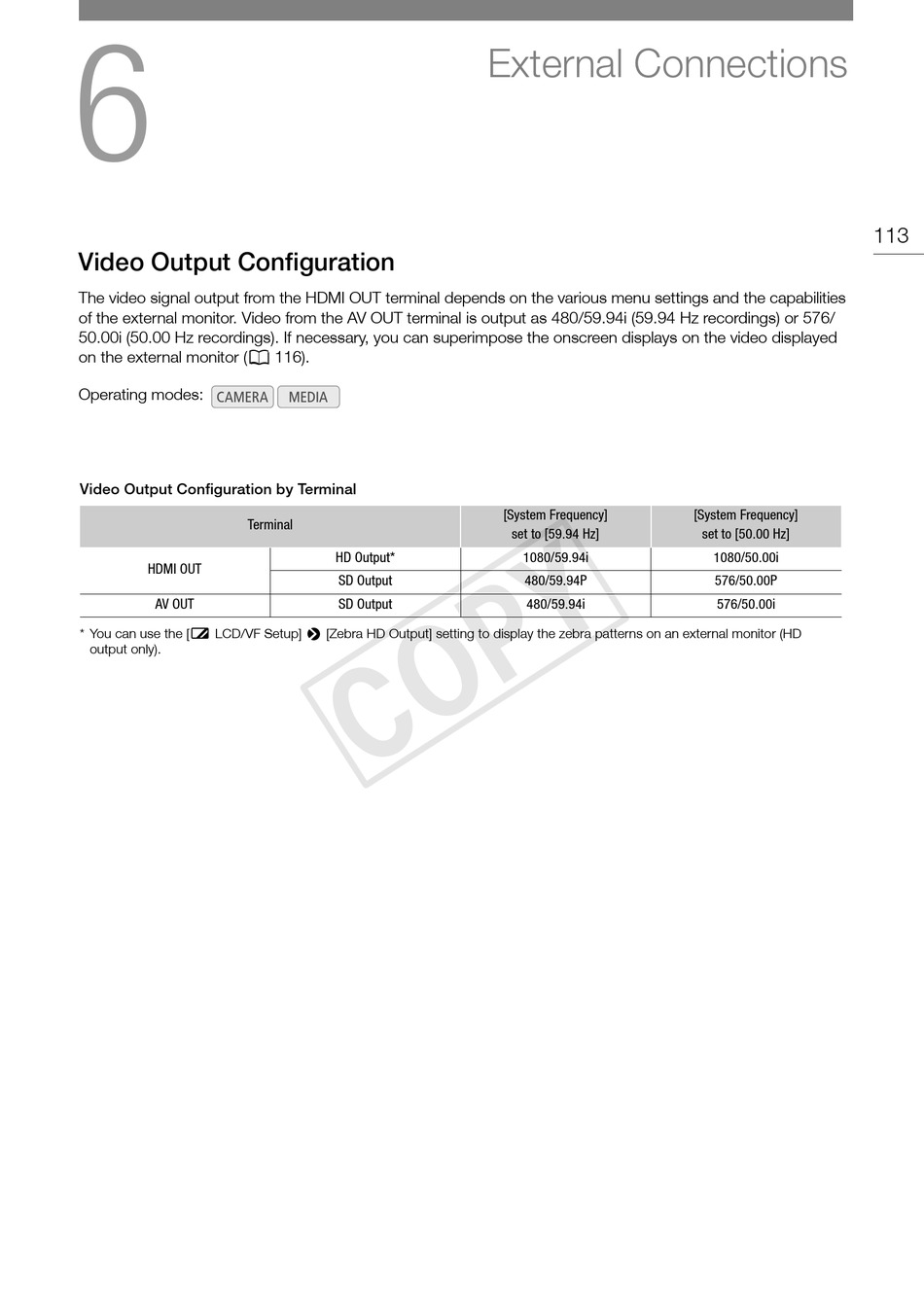

Video Output Configuration
The video signal output from the HDMI OUT terminal depends on the various menu settings and the capabilities
of the external monitor. Video from the AV OUT terminal is output as 480/59.94i (59.94 Hz recordings) or 576/
50.00i (50.00 Hz recordings). If necessary, you can superimpose the onscreen displays on the video displayed
on the external monitor (A 116).
Operating modes:
Video Output Configuration by Terminal
Terminal
HDMI OUT
AV OUT
* You can use the [£ LCD/VF Setup] > [Zebra HD Output] setting to display the zebra patterns on an external monitor (HD
output only).
External Connections
[System Frequency]
HD Output*
SD Output
SD Output
set to [59.94 Hz]
1080/59.94i
480/59.94P
480/59.94i
[System Frequency]
set to [50.00 Hz]
1080/50.00i
576/50.00P
576/50.00i
113
