Bogen AS1 Specifications

Amplified Speaker
& Assemblies
Models AS1, ASWB1,
ASUG1, ASWG1,
ASUG1DK, ASWG1DK
Bogen Model AS1 is an 8", cone-type loudspeaker, complete with a built-in 1-watt amplifier and volume

Description

control knob.
Volume control knob allows adjustment of the paging level at each speaker location in the system;
detachable knob available on ASUG1DK and ASWG1DK.
The speaker is available unmounted or fully assembled in a wall baffle (Model ASWB1), on an off-white ceil-
ing grille (Model ASWG1 & ASWG1DK), or on a bright white ceiling grille (ASUG1 & ASUG1DK).

Features

• 8" Cone speaker
• Self-contained 1-watt amplifier
• Interfaces with standard 600-ohm telephone line
• Available unmounted (AS1)
• Available fully assembled in a wall baffle finished in
simulated walnut with sloping front panel for
enhanced downward dispersion (Model ASWB1)
AS1
ASUG1DK,
ASWG1DK (pictured)
• Available on an off-white semi-gloss enameled ceil-
ing grille (ASWG1, ASWG1DK), or bright white
finish ( ASUG1, ASUG1DK)
• Ceiling assembly with fixed front-mounted volume
control knob (ASUG1, ASWG1)
• Ceiling assembly with detachable front-mounted
volume control knob (ASUG1DK, ASWG1DK)
Specifications subject to change without notice.
© 2005 Bogen Communications, Inc.
Part No. 54-7764-04C 0804

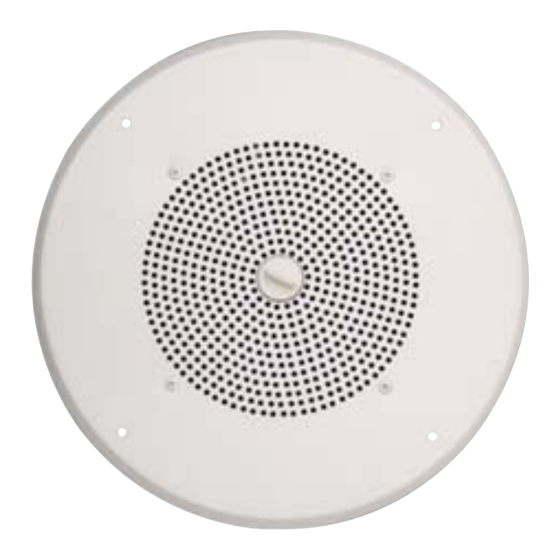

ASUG1,
ASWG1 (pictured)
ASWB1
