Bogen ASWB1 Installation And Use Manual

Amplified Wall Baffle Speaker
Model ASWB1
Installation and Use Manual

Description

Bogen's self-amplified wall baffle speaker is an 8-inch, cone-type loudspeaker, complete with built-in 1W amplifier
and volume control mounted in a wood grain baffle (WB8). The ASWB1 requires 1 Current Unit (CU) of power.*
*1CU = 50mA

Installation Instructions for ASWB1

The loudspeaker should be installed at a recommended height of 8 to 12 feet above the floor, depending on need.
Note: Do not mount the speaker near noise generating equipment (fans, motors, etc.) and do not use where a
normal conversation cannot be conducted.
1. Mark the point from which to hang the speaker. Drill an appro-
priately sized hole in the wall and insert an anchor. Drive a
screw into the anchor leaving approximately 1/2" of the screw
exposed from which to hang the speaker.
2. Make electrical connections. Power (24V DC) and audio are
supplied to each speaker via separate 2-terminal pluggable
connectors. When two or more speakers are used in a single
paging station, wire all audio and power supply connections
in parallel.
Power supply connections are made at the 24V DC screw ter-
minals marked "PLUS +" and "MINUS – ". The speaker power
input is not polarity sensitive and will also work properly if the
polarity is reversed.
Audio Input connections are made at the screw terminals
marked "TIP" and "RING." Connect all TIP terminals together
and all RING terminals together. Reversing these connectors
on a speaker will cause it to cancel bass response of adjacent
speakers.
3. If it is necessary to adjust the volume, insert a thin, flat
blade screwdriver into the access hole at the bottom of the
wall baffle, then turn the volume control clockwise (as
viewed from the bottom front of the baffle) to increase the
volume.To reduce the volume, simply turn the volume con-
trol counterclockwise. Be careful not to unhook the speaker
from the wall anchor.

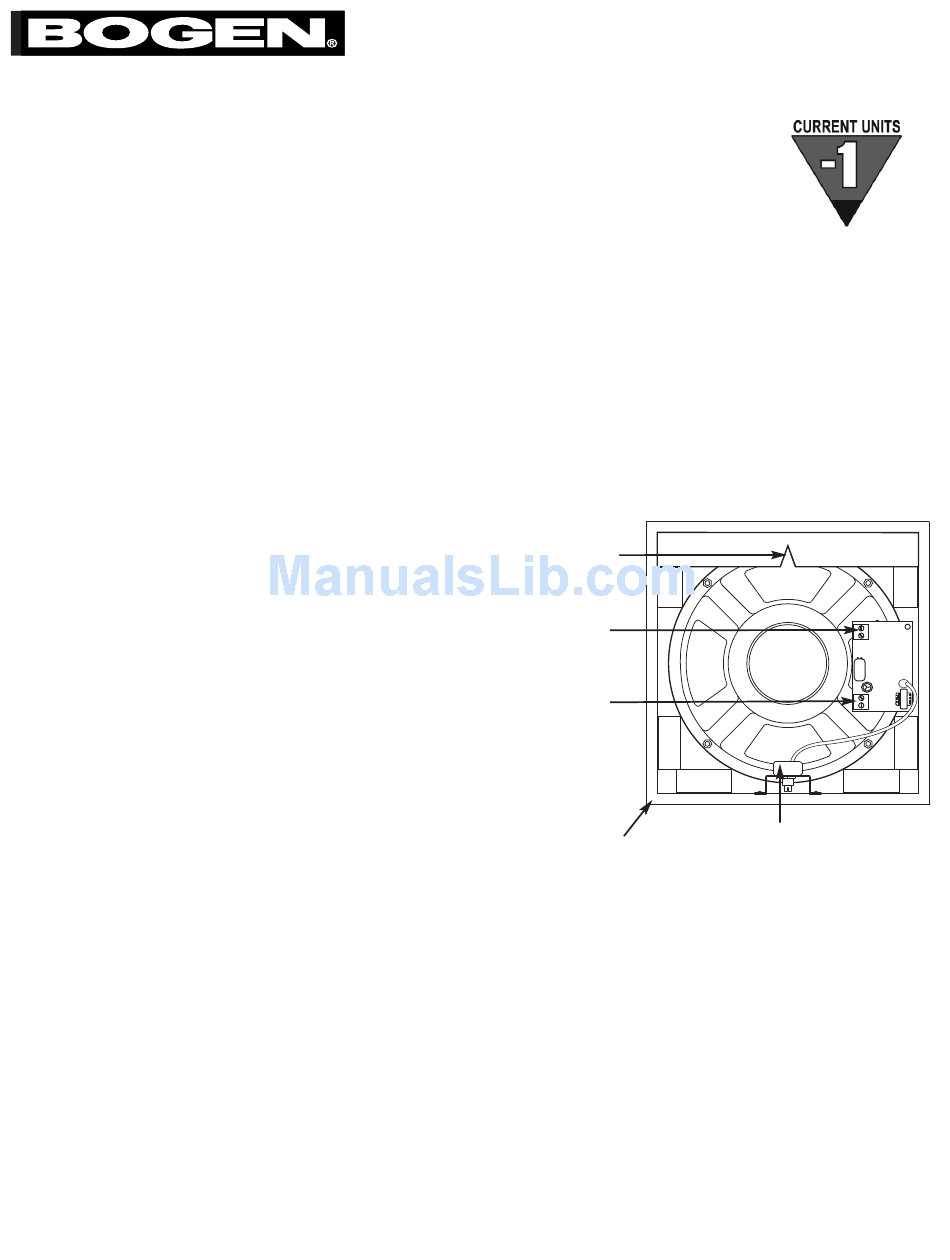

WALL
HANGER
NOTCH
POWER
CONNECTOR
AUDIO
CONNECTOR
RECESSED VOLUME CONTROL
BOTTOM
Turn in a clockwise motion (as
OF SPEAKER
viewed from front of speaker)
Specifications subject to change without notice.
to increase volume.
© 2005 Bogen Communications, Inc.
All rights reserved.
54-2133-01C 1007
