Installation and Use Manual

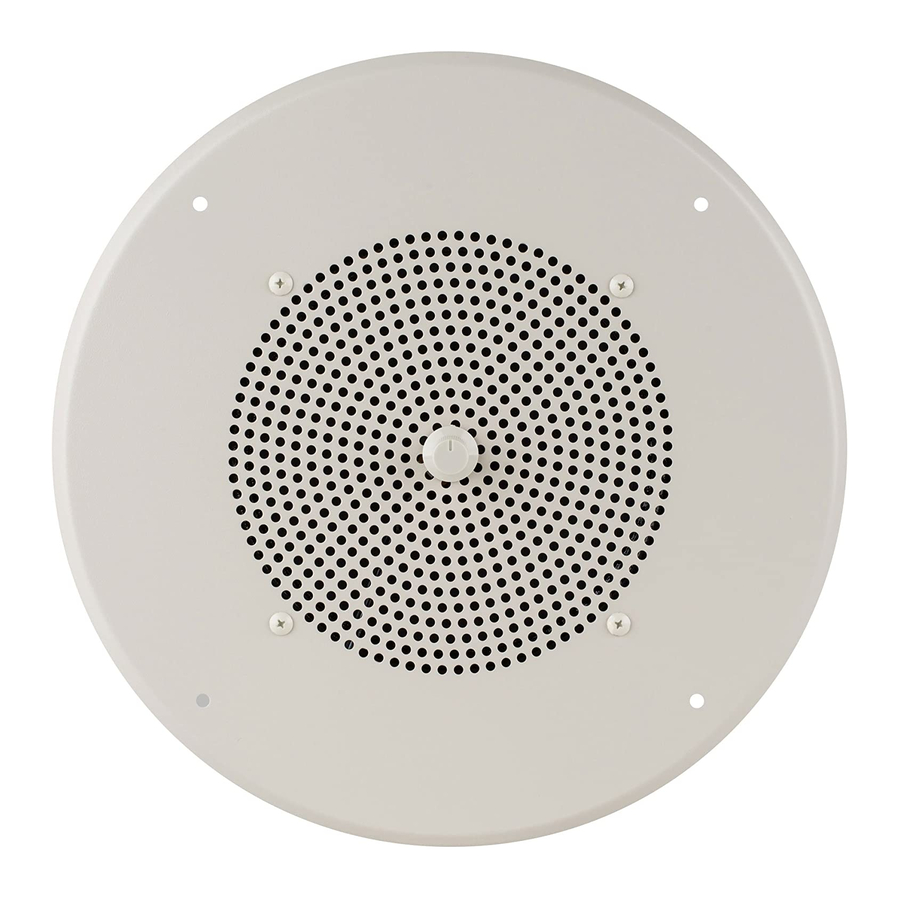

Bogen's self-amplified ceiling speakers are 8-inch, cone-type loudspeakers, complete with built-in amplifier and volume
control knob.
Unmounted Cone Speaker with 1W Amplifier and
AS1
Volume Control
ASUG1, AS1 Mounted onto Steel Ceiling Grille (PG8U or PG8W)
ASWG1 with Fixed, Volume Control Knob
ASUG1DK, AS1 Mounted onto Steel Ceiling Grille (PG8U or PG8W)
ASWG1DK & Detachable Volume Control Knob
Note: Do not mount the speaker near noise generating equipment (fans, motors, etc.) and do not use where a normal
conversation cannot be conducted.

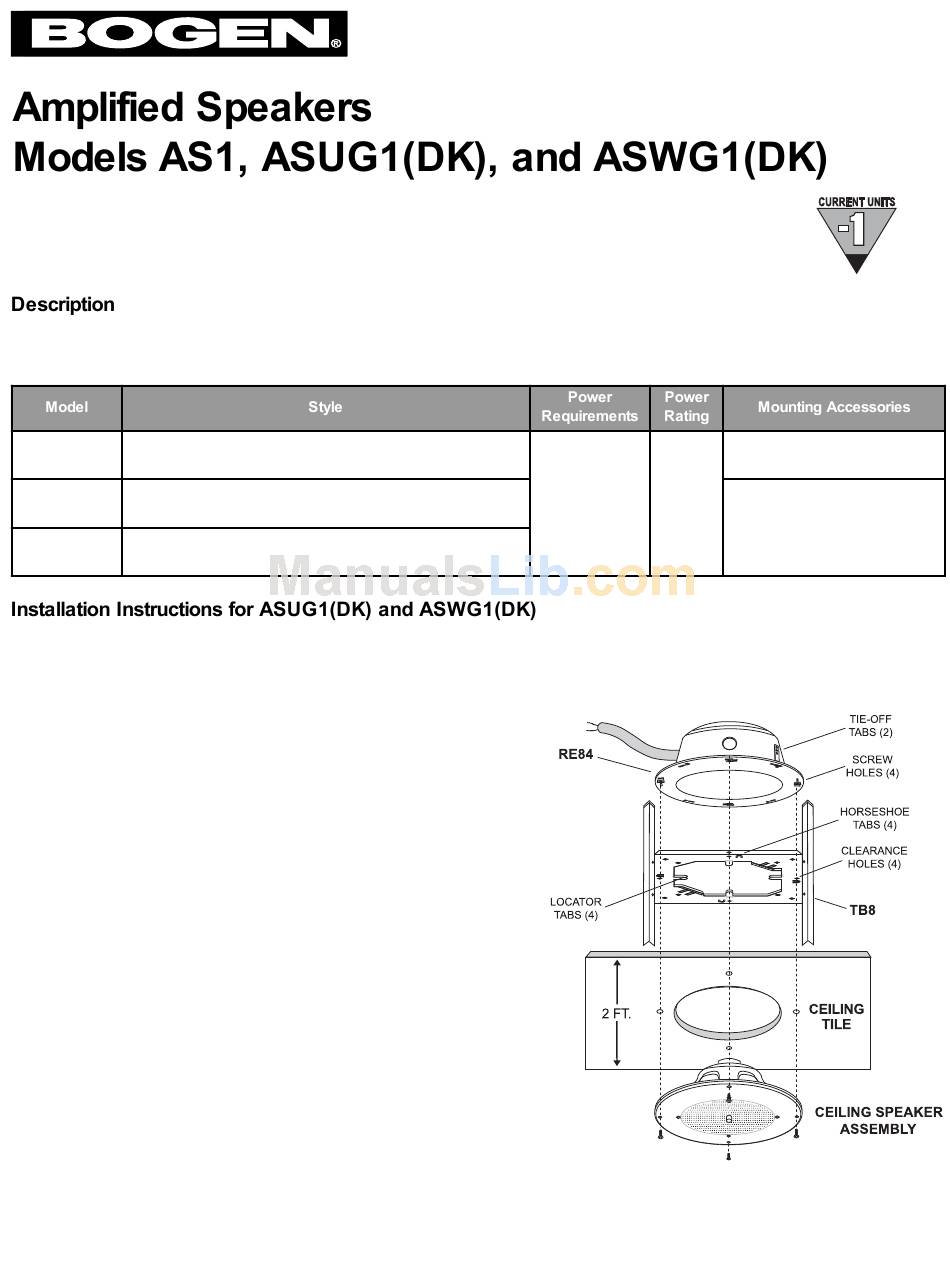

TB8 and RE84 Installation

1. Place ceiling tile with the finished side facing up over a large
trash can (to provide support and save cleanup time).
2. Cut hole in the center of the ceiling tile, using the raw speaker
as a guide.
3. Bend (4) horseshoe tabs upward on tile bridge.
4. Position the tile bridge on the unfinished side of the ceiling tile
and bend (4) locator tabs into tile opening to prevent sliding.
5. Slip tie-off tabs (2) through RE84 tie-off tab slots until they click
into place and secure customer-supplied "tie-off" wire to tab.
6. Punch out knockout in the RE84. Install listed metallic enclo-
sure entry fitting to knockout to accommodate plenum cable or
plenum. Whip and feed cable or whip through the knockout.
7. Install RE84 to tile bridge by orienting horseshoe tab slots (4)
over horseshoe tabs (4) of bridge.
8. With pliers, twist horseshoe tabs (4) of tile bridge 1/2 turn,
securing enclosure to bridge.
9. Screw the Ceiling Speaker assembly to the RE84 using (4)
8-32 screws provided with the Ceiling Speaker assembly,
sandwiching the TB8 and ceiling tile in between. The screws
must go through the TB8 clearance holes as shown. (Screws
anchor into the RE84.)
Grilles: CG8AW, SG8W,
PG8A, PG8U, PG8W
1 CU
1W
(50 mA)
TB8, RE84, MR8
Specifications subject to change without notice.
© 2004 Bogen Communications, Inc.
54-5850-02D 1108
