Amplified Wall Baffle Speaker
Model ASWB1
Installation and Use Manual

Description

Bogen's self-amplified wall baffle speaker is an 8-inch, cone-type loudspeaker, complete with built-in 1W amplifier and
volume control mounted in a wood grain baffle (WB8). The ASWB1 requires 1 Current Unit (CU) of power.*

Installation Instructions for ASWB1

The loudspeaker should be installed at a recommended height of 8 to 12 feet above the floor, depending on need.
Note: Do not mount the speaker near noise generating equipment (fans, motors, etc.) and do not use where a normal
conversation cannot be conducted.
1. Mark the point from which to hang the speaker. Drill an appro-
priately sized hole in the wall and insert an anchor. Drive a
screw into the anchor leaving approximately 1/2" of the screw
exposed from which to hang the speaker.
2. A. Make the power supply connections using the two screw
terminals on the ASWB1. Connect the positive power supply
to the terminal labeled "GND," and the negative power sup-
ply to the terminal labeled "-24V."
NOTE: The speaker will not be damaged if these connections
are reversed. However, the speaker will not work.
B. Make the audio connections using the two screw terminals
labeled "TIP" and "RING." When wiring more than one speak-
er into a system, the "TIP" terminal must be wired to the other
"TIP" terminals, and the "RING" terminal to the other "RING"
terminals.
NOTE: If two adjacent speakers have reversed audio wiring
connections, they will tend to cancel each other's bass
response, thereby diminishing the sound quality.
3. If it is necessary to adjust the volume, insert a thin, flat
blade screwdriver into the access hole at the bottom of the
wall baffle, then turn the volume control clockwise (as
viewed from the bottom front of the baffle) to increase the
volume.To reduce the volume, simply turn the volume con-
trol counterclockwise. Be careful not to unhook the speaker
from the wall anchor.
*1CU = 50mA

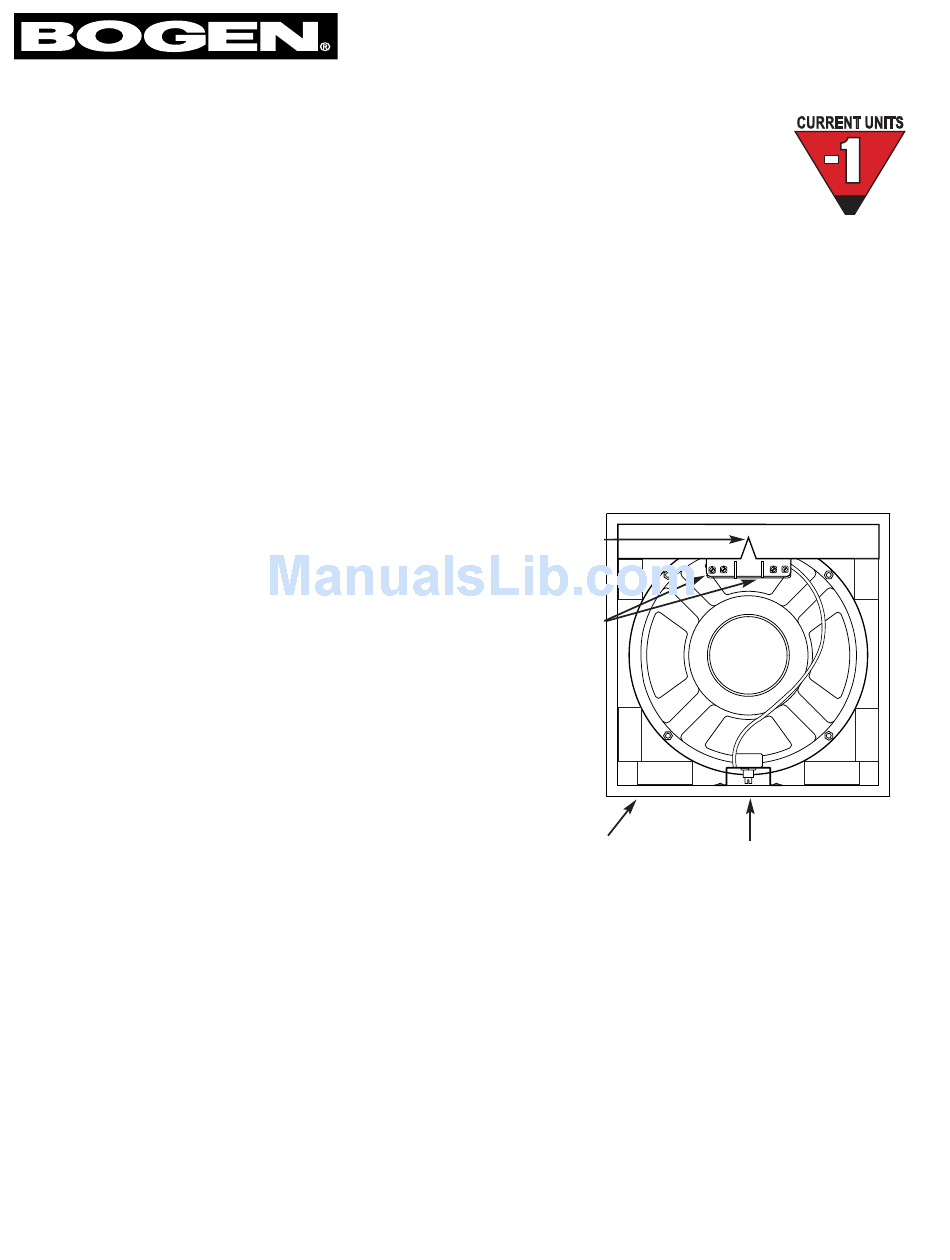

WALL
HANGER
NOTCH
SCREW
TERMINALS
BOTTOM
OF SPEAKER
RECESSED VOLUME CONTROL
Turn in a clockwise motion (as
viewed from front of speaker)
to increase volume.
© 2005 Bogen Communications, Inc.
All rights reserved.
Specifications subject to change without notice.
54-2133-01B 0510
