Summary of Contents for Elite Screens CineTension 2 Series

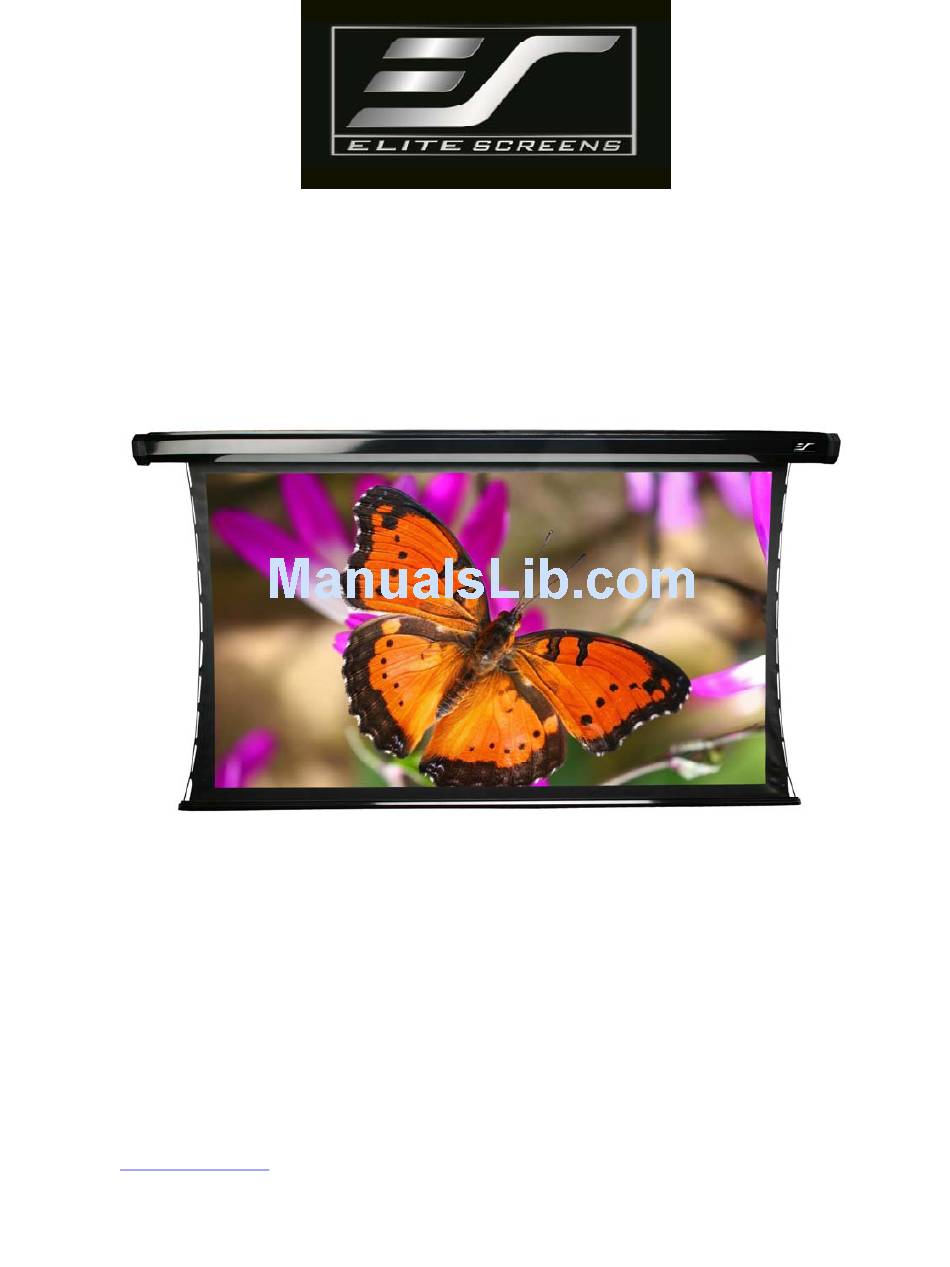

- Page 1 Tab-tensioned Premium Electric Scr een CineTension 2 Series Use r’s Gu i de Rev. 102510-JA www.elitescreens.com info@elitescreens.com...
- Page 2 Important Safety and Warning Precautions 1. Be sure to read this user guide before use and follow the procedures below. Please retain this manual for future reference. To avoid any damage, do not use in conjunction with any accessories not recommended by the manufacturer.
-
Page 3: Control System
Please be aware of this as it will void the limitation of your warranty. Changes or modifications (except cutting the power cord for hardwire installation) to this product not expressly approved by Elite Screens is prohibited and will void the warranty. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 4 2. Wall Box and IR (Infrared) Eye Receiver: The 3-way Wall Box switch enables the consumer to manually operate the screen's drop/rise capabilities. The IR “eye” protrudes from the bottom of the casing to present a low profile line-of-sight control option for your IR remote. It is a low-visibility alternative to using the wall box kit and its ability to protrude from the bottom of the screen allows line-of-sight control even in a recessed ceiling installation.
-
Page 5: Installation
INSTALLATION The CineTension 2 series screen is designed for installation on either a wall or ceiling. All hardware is included to allow either installation method however we do strongly recommend a professional installation for safety purposes. The extruded hanging brackets are designed to slide anywhere on the back of the screen to accommodate a wall or ceiling installation and provide an easy alignment with wood studs and trusses. - Page 6 3. Mark the location of where the screen is to be installed and drill your hole. Insert the proper screw into the drilled hole and finish tightening the bolts to the bracket. Top hole for ceiling installation Back hole for wall installation 4.
-
Page 7: Remote Controls
Remote Controls Stop Down This is the IR (Infra-Red) remote with a This is the RF (Radio Frequency) remote range of approximately 15 Ft. with a range of approximately 100 Ft. Battery size AAA Battery size AAA * Please remember to always point to either the IR “eye” sensor or the IR receiver located on the screen’s case using the IR remote. - Page 8 D.) Our electric screens with a tubular motor installed are equipped with a Thermal relay. This would include all Home 2, CineTension 2 series, and VMAX screens with a diagonal size above 180". This feature will automatically shut off screen in the event the motor becomes too hot, preventing overheating of the motor.
-
Page 9: Warranty Policy
(Return Merchandise Authorization) number must be issued in order to process a replacement. Elite Screens will replace the DOA unit with a brand new replacement *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new* unit to the customer by ground service (based on stock availability). - Page 10 Fax: +86-(0)755-8461-7669 www.elitescreeens.com/fr info@elitescreens.com.cn www.elitescreens.com.cn Latin America Contact: Taiwan: info.la@elitescreens.com Elite Screens Taiwan Co. Ltd. East Asia Contact: 4F., No. 42-1 Wuguan Rd. Wugu Township info.ea@elitescreens.com Taipei County 248, Taiwan (Wugu Industrial Park) Taiwan (R.O.C) India Contact: Tel: +886+2+8990+1999 info.india@elitescreens.com...
