Hornet 563T Owner's Manual

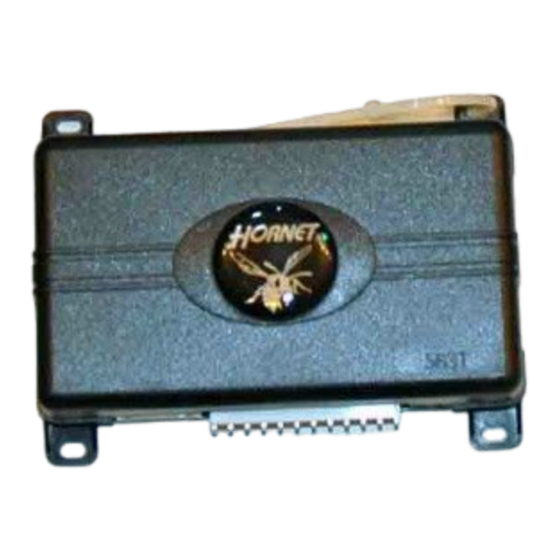

Hornet combination remote car start and alarm system model 563t owner's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

M M o o d d e e l l 5 5 6 6 3 3 T T
➤
O O w w n n e e r r ' ' s s G G u u i i d d e e
By Mario.Escamilla at 11:22 am, 9/14/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 563T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hornet 563T

Summary of Contents for Hornet 563T

  • Page 1 M M o o d d e e l l 5 5 6 6 3 3 T T ➤ O O w w n n e e r r ’ ’ s s G G u u i i d d e e By Mario.Escamilla at 11:22 am, 9/14/05...

  • Page 2: L L I I M M I I T T E E D D L L I I F F E E T T I I M M E E C C O O N N S S U U M M E E R R W W A A R R R R A A N N T T Y Y

    l l i i m m i i t t e e d d l l i i f f e e t t i i m m e e c c o o n n s s u u m m e e r r w w a a r r r r a a n n t t y y For a period of one calendar year from the date of purchase of this auto-security device, Directed Electronics, Inc.
  • Page 3 TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WAR- RANTIES ARE EXCLUDED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COMMERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLUSION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR- RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR ABROAD.

  • Page 4: Table Of Contents

    t t a a b b l l e e o o f f c c o o n n t t e e n n t t s s l l i i m m i i t t e e d d l l i i f f e e t t i i m m e e c c o o n n s s u u m m e e r r w w a a r r r r a a n n t t y y ................i i s s t t a a n n d d a a r r d d t t r r a a n n s s m m i i t t t t e e r r c c o o n n f f i i g g u u r r a a t t i i o o n n .
  • Page 5 h h i i g g h h f f r r e e q q u u e e n n c c y y ......................2 2 9 9 o o w w n n e e r r r r e e c c o o g g n n i i t t i i o o n n .
  • Page 6 s s t t a a n n d d a a r r d d t t r r a a n n s s m m i i t t t t e e r r c c o o n n f f i i g g u u r r a a t t i i o o n n controls the A A r r m m and P P a a n n i i c c On/Off function.
  • Page 7 w w h h a a t t i i s s i i n n c c l l u u d d e e d d ➤ A control module ➤ An HX receiver/antenna ➤ Two four-button transmitters ➤...

  • Page 8: System Maintenance

    ➜ system maintenance The system requires no specific maintenance. Your remote is powered by a small, lightweight 3-volt lithium battery that will last approximately one year under normal use. When the battery begins to weaken, operating range will be reduced and the LED on the remote will dim.

  • Page 9: Caution

    ➜ caution This product is designed for fuel injected, automatic transmis- sion vehicles only. Use of this product in a standard transmission vehicle is dangerous and contrary the product's intended use. t t r r a a n n s s m m i i t t t t e e r r f f u u n n c c t t i i o o n n s s The receiver uses a computer-based Learn Routine to learn the transmitter buttons.
  • Page 10 less than one second before arming or disarming. An optional auxiliary function, such as trunk release, can be controlled by pressing this button for 1.5 seconds.) The auxiliary output controls __________________________. Button The remote start function of your system is controlled by pressing this button twice within 3 seconds.

  • Page 11: Warning! Safety First

    When simultaneously pressed these buttons control the rear window defogger during remote starting. Buttons An optional auxiliary convenience or expansion function that you have added to your system can be activated by pressing these buttons simultaneously. The auxiliary output controls __________________________. u u s s i i n n g g y y o o u u r r s s y y s s t t e e m m ➜...
  • Page 12 reach from children all remote control transmitters to assure that the system does not unintentionally remote start the vehicle. T T H H E E U U S S E E R R M M U U S S T T I I N N S S T T A A L L L L A A C C A A R R B B O O N N M M O O N N O O X X I I D D E E D D E E T T E E C C T T O O R R I I N N O O R R A A B B O O U U T T T T H H E E L L I I V V I I N N G G A A R R E E A A A A D D J J A A C C E E N N T T T T O O T T H H E E V V E E H H I I C C L L E E .

  • Page 13: Active Arming

    remote start unit has not been properly installed. The remote start module must be removed or the installer must properly reinstall the remote start system so that the vehicle does not start in gear. All installations must be performed by an autho- rized Directed dealer.

  • Page 14: Passive Arming

    ➜ passive arming The system can be programmed to arm itself automatically (called passive arming). If the system is programmed for passive arming, it will automatically arm 30 seconds after the ignition is turned off and the system detects that you have left the vehicle by opening and closing a door.

  • Page 15: Multi-Level Security Arming

    This progressive response gives you time to disarm the sys- tem with your transmitter if you inadvertently open the door while the system is armed, while still providing instant re- sponse (even if the door is immediately closed). ➤ Turning on the ignition key will trip the same progressive re- sponse as opening a door.

  • Page 16: Arming While Driving

    ➤ Press a fifth time within five seconds: The siren chirps five times followed by a long chirp. All input zones, except the ignition, are now bypassed. note: Multi-Level Security Arming only applies to a sin- gle arming cycle. Once the system is disarmed and then re-armed, all the zones will be active again.

  • Page 17: High Security Disarm

    ➜ high security disarm This security system offers High Security Disarm. High Security Disarm is a feature that makes it possible to silence and reset the system while it is triggering, without disarming the system. If the system is triggered and the siren has been sounding for longer than six seconds, pressing stop the trigger and return the unit to the armed state.

  • Page 18: Silent Mode

    To disarm the security system, turn the ignition to the ON posi- tion. Press the Valet button the preset number of times (one to five times) within 15 seconds. After five seconds, the system will disarm. If the system does not disarm, you may have waited too long;...

  • Page 19: Panic Mode

    ➜ panic mode If you are threatened in or near your vehicle, you can attract attention by triggering the system with your transmitter. Just press for two seconds, and you will enter Panic Mode. The siren will sound and the parking lights will flash for the programmed siren duration.

  • Page 20: Remote Start

    3. Press 4. Press again. The status LED will light solidly if you are entering Valet Mode, and it will go out if you are exiting Valet Mode. ➜ remote start This feature allows you to remotely start and run your vehicle for a programmable period of time.
  • Page 21 4. Once the vehicle has started, it will run for the pre-program- med period of time (either 12, 24, or 60 minutes - see Programming Options section of this guide) or until a shut- down input is triggered. i i m m p p o o r r t t a a n n t t ! ! It is unsafe to operate a vehicle’s motor in a garage or other closed off area.

  • Page 22: Rear Defogger

    ➜ rear defogger To turn the rear defogger output OFF: 1. Simultaneously press & release the on the remote control. 2. The lights will flash 2 times. 3. The rear defogger output will no longer activate when the vehicle is remote started. note: If the remote start is on the parking lights will turn off then flash 2-times before returning to their normal output and the defogger output, if active, will cease.

  • Page 23: Valet Take-Over

    ➜ valet take-over The Valet Take-Over feature allows the vehicle to remain running after the key has been removed from the ignition. This feature is useful for occasions when you wish to exit and lock the vehicle for short periods of time, but would like to leave the motor running and the climate controls on.

  • Page 24: Timer/Temperature Mode

    To activate: Park the vehicle and set parking brake. Remove your foot from the brake pedal and leave the engine running. Press and release the The lights will flash to indicate the remote start has entered short run turbo mode. Turn off the key, the engine will keep running.
  • Page 25 The system will start the car and will run for the specified duration, unless shut down by the remote start button shut down with the remote start button system will remain in timer mode. The system will start every 3 hours until canceled by the brake, hood, or neutral safety shut-down wires.

  • Page 26: Starter Anti-Grind Circuitry

    ➜ starter anti-grind circuitry Whenever the vehicle is remote started, advanced anti-grind circuitry prevents the starter from engaging, even if the key is turned to the start position. This prevents damage to the starter motor if the key is turned to the start position during remote start operation.

  • Page 27: Shut Down Inputs

    ➜ shut down inputs This security system uses several inputs to shut down the remote start operation of the motor or prevent remote start if certain inputs are active. The two most important are hood and brake inputs. The hood input will prevent the motor from starting, as well as shut it down, any time the hood is opened.

  • Page 28: Arming Diagnostics

    The vehicle doors are protected by NPC differently. If your secu- rity system is triggered by an open door for three full cycles, the system will bypass the doors until the trigger ceases. note: Arming and disarming the system does not reset this function! The only ways to reset a bypassed zone are for it to not trigger for 60 minutes, or to turn on the igni- tion.

  • Page 29: Disarming Diagnostics

    the system was armed, until that input ceases. Three seconds after that input ceases, the security system will resume normal moni- toring. For example, if your vehicle has an interior light exit delay and you arm your security system before the interior light turns off, you may hear a second Bypass Notification chirp.

  • Page 30: Table Of Zones

    Action Number of Chirps 1 (3-second delay), 1 Disarm Disarm Disarm ➜ table of zones A zone is represented by the number of LED flashes used by the system to identify a particular type of input. Standard input assignments are listed in the following table, along with spaces to write in any optional sensors or switches that have been installed.

  • Page 31: Interpreting Zone Diagnostics

    ➜ interpreting zone diagnostics Warn Away responses are not reported by arming or disarming diagnostics. If you receive a Bypass notification when arming or a Tamper Alert notification when disarming, look at the LED. Active or triggered zones will be indicated by a pattern of blinks by the LED.
  • Page 32 out of sync with the control unit and fail to operate the system. To re-sync the remote simply press range of the vehicle. The alarm will automatically re-sync and respond to the transmitters normally. h h i i g g h h f f r r e e q q u u e e n n c c y y Your system transmits and receives at 434 MHz.
  • Page 33 note: Owner Recognition cannot be programmed with- out a Bitwriter your dealer for more information. r r a a p p i i d d r r e e s s u u m m e e l l o o g g i i c c This Directed system will store its current state to non-volatile memory.
  • Page 34 Mode the LED illuminates steadily. If the vehicle is not used (ignition is not turned on) for a one hour period while the system is in Valet Mode, the LED will shut off. If the system remains in Valet Mode, the LED will come back on the next time the ignition is turned on and then back off.
  • Page 35 system passively arms (after the 30-second countdown). This feature only works if passive arming has been programmed. ➤ Panic mode e e n n a a b b l l e e d d /disabled when the ignition is turned on.
  • Page 36 AED is programmed on, the starter of the vehicle will be disabled 30 seconds after the ignition is turned off. Once the key is turned off, the LED will flash slowly (one-half its normal armed rate) to indicate the AED arming cycle. Thirty seconds later, the starter will be disabled.
  • Page 37 ➤ While the remote start system is running the engine, the parking lights of the vehicle can f f l l a a s s h h o o n n a a n n d d o o f f f f or come on and light steadily.
  • Page 38 sequence. This system offers lock outputs that can control Power Locks: some manufacturers' power door lock systems. For other systems, additional parts may be required. The accessory output of the system can op- Power Trunk Release: erate a factory power release for the vehicle’s trunk or hatch. Although the on-board relay can control most power trunk re- leases, sometimes an optional relay is required.
  • Page 39 g g l l o o s s s s a a r r y y o o f f t t e e r r m m s s The “brain” of your system. Usually hidden under- Control Unit: neath the dash area of the vehicle.
  • Page 40 This is what happens when the Trigger or Triggered Sequence: alarm “goes off ” or “trips.” The triggered sequence of your system consists of the siren sounding and parking lights flashing for the programmed duration. A small push button mounted at a discretionary Valet button: location inside the vehicle.
  • Page 41 © 2005 directed electronics—all rights reser ved...

  • Page 42: Quick Reference Guide

    QUICK REFERENCE GUIDE Arming ■ To arm, press the parking lights will flash once. Arming while driving ■ To arm the system while driving, press vehicle is running. The system will chirp once and then once more to indi- cate that the ignition is on. Disarming ■...
  • Page 43 V V a a l l e e t t T T a a k k e e o o v v e e r r ■ Press and release ignition key to the OFF position. Once the vehicle has started, it will run for the pre-programmed period of time (12, 24, or 60 minutes).
  • Page 44 The company behind this system is Directed Electronics Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, Directed is ISO 9001 registered.
