Pro-Form 490 LE User Manual page 11

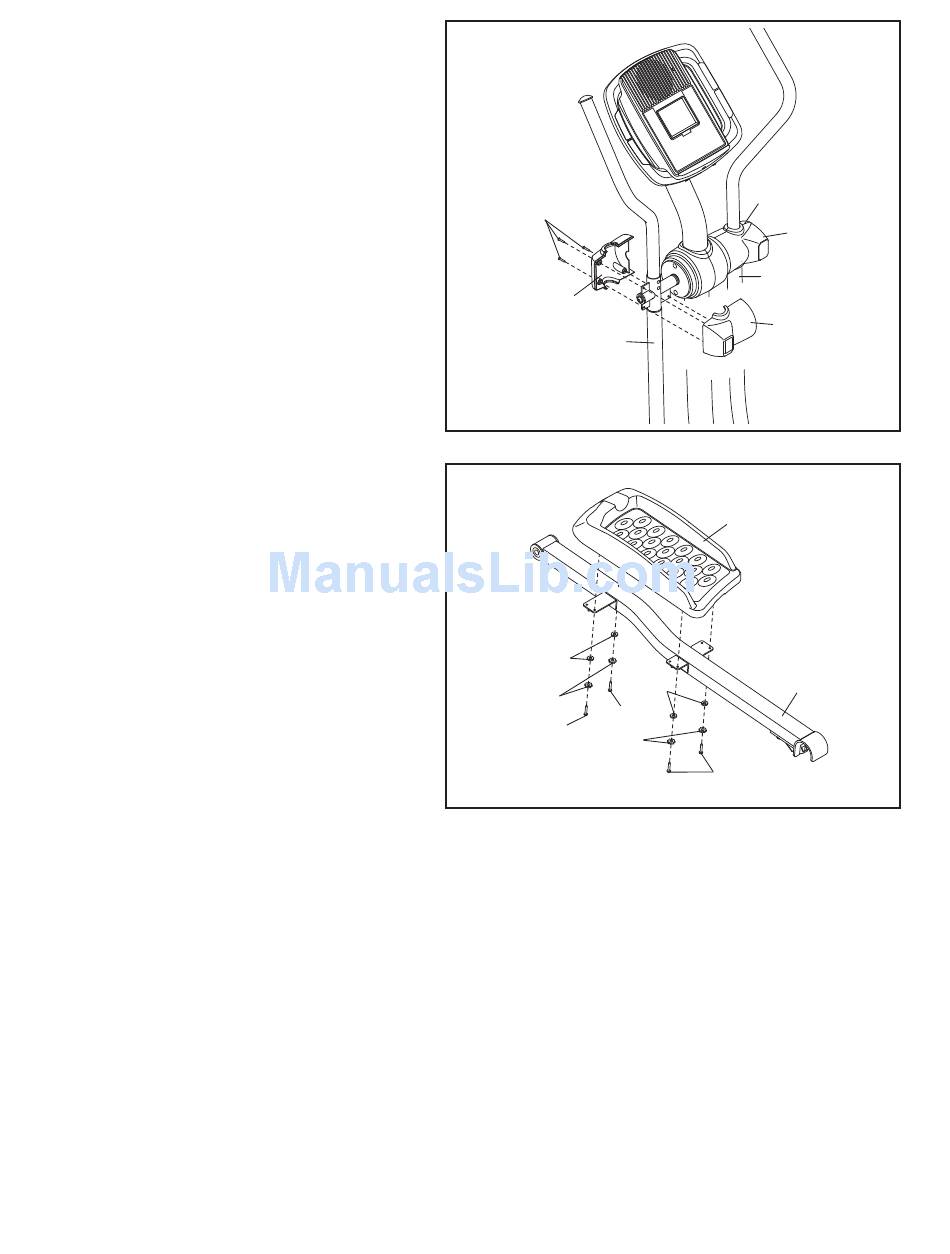

11. Hold the Left Front Handlebar Cover (18)
and the Left Rear Handlebar Cover (19)
around the Left Upper Body Leg (11).
Attach the Handlebar Covers (18, 19) with
three M4 x 32mm Round Head Screws
(105).
Attach the Right Front Handlebar Cover
(20) and the Right Rear Handlebar Cover
(21) in the same way.
12. Identify the Left Pedal (13) and the Left
Pedal Arm (14), which are marked with
"Left" stickers.
Attach the Left Pedal (13) to the Left Pedal
Arm (14) with an M4 x 47mm Screw (108),
three M4 x 16mm Blunt Screws (104), four
M4 Split Washers (112), and four M4
Washers (102).
Attach the Right Pedal (not shown) to
the Right Pedal Arm (not shown) in the
same way.
