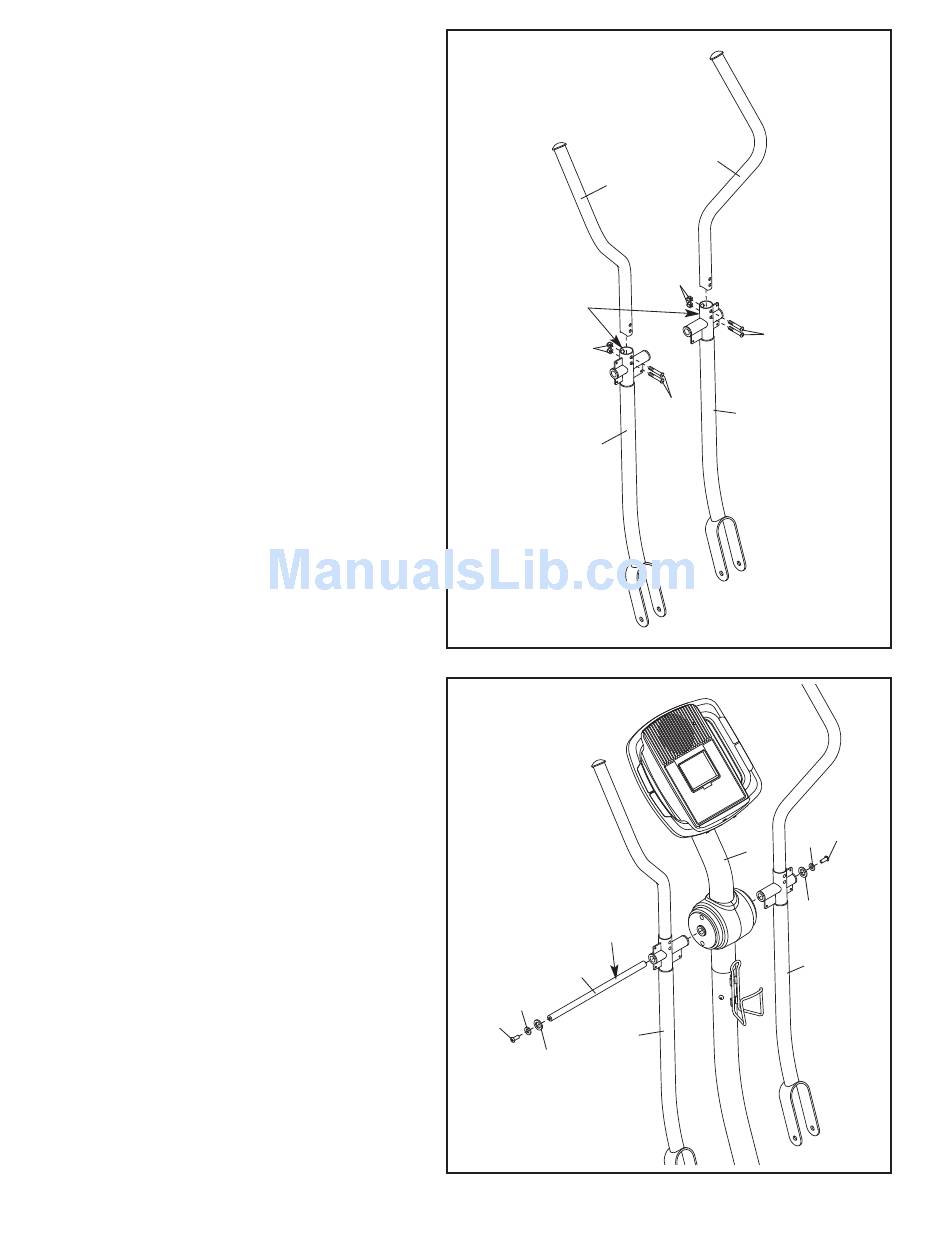

9. Identify the Left Upper Body Arm (8) and
the Left Upper Body Leg (11), which are
marked with "Left" stickers, and orient them
as shown.
Insert the Left Upper Body Arm (8) into the
Left Upper Body Leg (11).
Attach the Left Upper Body Arm (8) with two
M8 x 41mm Button Bolts (78) and two M8
Jam Nuts (79). Make sure that the Jam
Nuts are in the hexagonal holes in the
Left Upper Body Leg (11).
Attach the Right Upper Body Arm (9) to
the Right Upper Body Leg (12) in the
same way.
10. Insert the Pivot Axle (74) into the Upright (3)
and center it. Apply a generous amount of
the included grease to the Pivot Axle.
Orient the Left Upper Body Leg (11) as
shown, and slide it onto the left end of the
Pivot Axle (74). Slide the Right Upper Body
Leg (12) onto the right end of the Pivot
Axle.
Tighten an M8 x 23mm Button Screw (84)
with an M8 Washer (88) and a Wave
Washer (111) into each end of the Pivot
Axle (74). Make sure that the Wave
Washers are on the ends of the Pivot
Axle.
