CHAPTER 3
II. EXTERNALS
A. Removing the Film Adapter Unit
1) Disconnect the FAU cable.

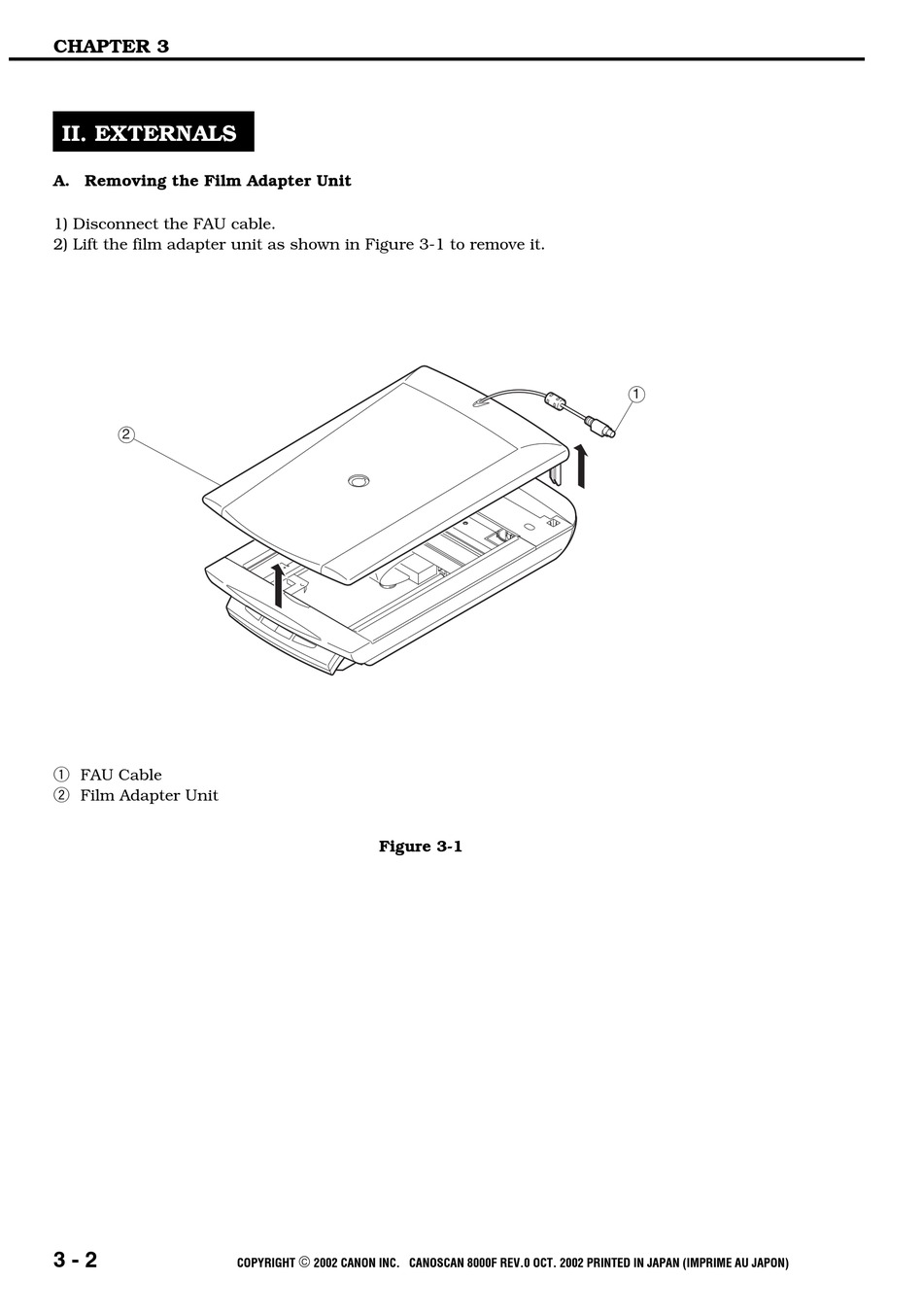

2) Lift the film adapter unit as shown in Figure 3-1 to remove it.
1
2
q FAU Cable
w Film Adapter Unit
Figure 3-1
