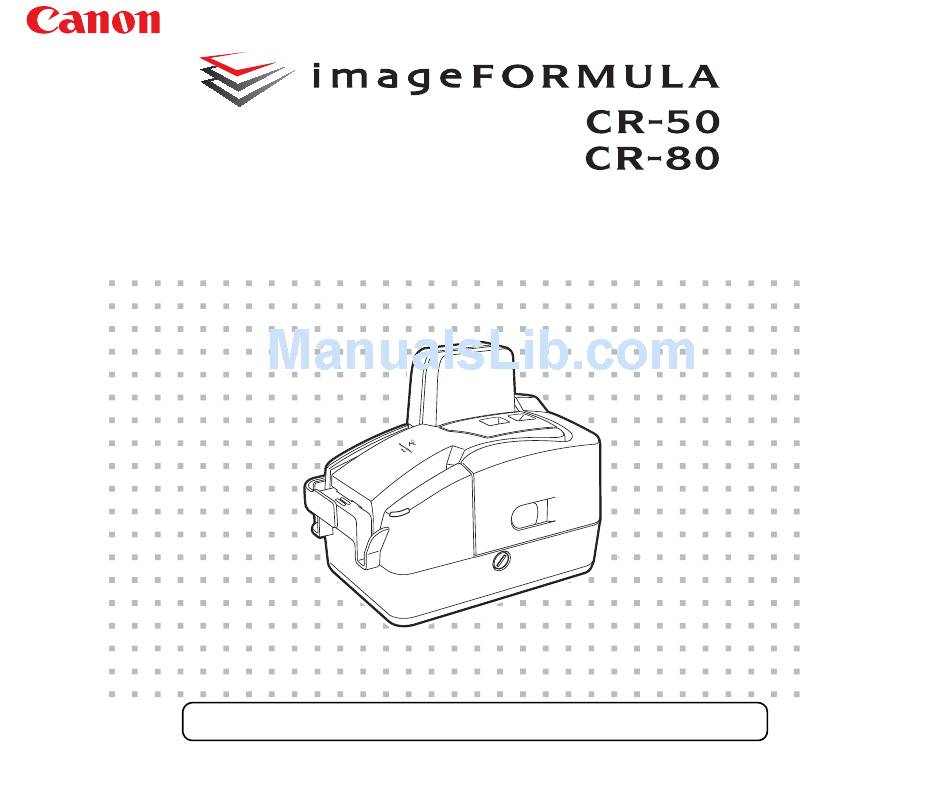

- Page 1 Operation & Maintenance Guide ♦ Please read this manual before operating this scanner.
- Page 2 If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A. Inc. One Canon Plaza, Lake Success NY 11042, U.S.A. Tel. No. (516)328-5000 RADIO INTERFERENCE REGULATIONS (For 120V models)
- Page 3 Trademarks • Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries. • imageFORMULA is a trademark of CANON ELECTRONICS INC. • Microsoft, Windows, Windows XP, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
-
Page 4: Introduction
INTRODUCTION Thank you for purchasing the Canon Check Reader CR-50/80. Please read this manual thoroughly before using the machine in order to familiarize yourself with its capabilities, and to make the most of its many functions. Manuals for the CR-50/80 The following manuals are provided with the CR-50/80. -
Page 5: Table Of Contents
Placing Documents ... 7 Document Feeding and Scanning ... 7 Scan Procedure ... 7 Troubleshooting ... 9 When the Scanner Is Not Recognized ... 9 Clearing Paper Jams... 9 The Scanner Does Not Turn ON ... 11 Feeding Trouble ... 11 When the Scanned Image Is Not Normal... -
Page 6: Document Feeding And Scanning
• Before scanning documents that contain pasted artwork, make sure that the ink or paste is thoroughly dry. If the documents are scanned with wet ink or paste, the inside of the scanner may become dirty and it may cause a malfunction. -
Page 7: Placing Documents
• Check the paper stack and remove all clips, staples, pins, or any other type of metal or plastic fastener. These objects may cause damage to the document, a paper jam, or a scanner malfunction. • Do not touch documents that are being fed under any circumstances. - Page 8 Load the documents with their front sides facing right and with their edges flush against the document load mark. Adjust the Eject Stopper in accordance with the document. Instruct scanning to start from the software application. NOTE When Using the Accompanying Scanning Utility for CR-50/80: There are three scanning methods as follows.
-
Page 9: Troubleshooting
Remedy Not all USB interfaces provided as standard with personal computers are guaranteed. Contact your local authorized Canon dealer for more detailed information. (See “Checking Your Operating Environment,” on p. 18 in Instructions.) Cause USB cable is not compatible with the scanner. - Page 10 While lowering the down the OPEN lever, open the reading unit. Remove the paper that has jammed. If the paper is jammed at the pickup area: Pull the paper forward and clear the jam from the Maintenance Cover. If the paper is jammed at any other area: Pull the paper forward and clear the jam from the nearest opening.
-
Page 11: The Scanner Does Not Turn On
Clean the rollers if they are dirty. (See “Cleaning the Scanning Glass and Rollers” on p. 13.) Worn rollers must be replaced. Contact your local authorized Canon dealer or service representative to have the scanner serviced. • The Separation Roller gap is too wide. Adjust the Separation Roller gap. -
Page 12: When The Scanned Image Is Not Normal
If this happens, the interface card is not compatible. Use the recommended interface card. If the above remedies do not rectify the problem, contact your local authorized Canon dealer or service representative to have the scanner serviced. -
Page 13: Maintenance
Otherwise, it may cause an electrical shock. • Never clean the scanner with any kind of organic solvent, such as alcohol, benzene, or paint thinner. This may cause a fire and electrical shock, or cause the exterior of the scanner to disfigure or discolor. - Page 14 WARNING Do not use flammable liquids to clean the scanner, including alcohol, benzene, or paint thinner. Spin the rollers while wiping them clean with a firmly wrung cloth dampened with water or a mild detergent. There are 18 roller positions, as shown in the diagram below.
-
Page 15: Cleaning The Magnetic Heads
Scratches on the scanning glass may cause marks on the images and could cause feeding errors. If there are scratches on the scanning glass, contact your local authorized Canon dealer or service representative. Gently close the reading unit until it clicks into place. -
Page 16: Cleaning The Ink Jet Nozzles
IMPORTANT If your documents are stained and smudged from printing even after you clean the ink absorber, you should replace the ink absorber. Contact your local authorized Canon dealer or service representative. Absorber... - Page 17 Remove the ink cartridge. For more information, see “Replacing the Ink Cartridge” on p. 18. Use a dry cotton swab to wipe off any ink on the ink jet nozzle. If the text still appear faint after this operation, replace the ink cartridge (See “Replacing the Ink Cartridge”...
-
Page 18: Maintenance
The ink cartridge needs to be replaced if the printed text becomes scratchy or faint even if you have cleaned the ink jet nozzle. The ink cartridge is not included with the scanner. Purchase an ink cartridge separately, as shown below. - Page 19 Push back the ink cartridge lock lever in the direction of the arrow in the diagram below, and pull out the ink cartridge by grasping the tab as shown in the diagram. CAUTION Do not touch the ink jet nozzle right after imprinting. The nozzle may be very hot.
- Page 20 Squeeze the Print Position Adjustment Lever and move it to adjust the print position. Top: 50.5 mm (1.99") from the bottom edge of the document Middle: 47 mm (1.85") from the bottom edge of the document Bottom: 43.5 mm (1.71") from the bottom edge of the document If the ink head drops back when installed, the two ink cartridge pins will not fit into the holes on the carriage.
-
Page 21: Adjusting The Separation Roller Gap
IMPORTANT • Make sure that the size, thickness, and weight of your document meets the conditions of this scanner. See “Documents” on p. 6. • Your unit has been carefully adjusted to meet most conditions. However, the below adjustment may be needed depending on your environment (humidity, temperature, etc.) and the documents you... - Page 22 See "Confirming Proper Document Feeding" on p. 37 in Instructions. If additional assistance is required, contact your local authorized Canon dealer or service representative. Place a marking label on the unit pointing to the adjustment dial as illustrated below. This will serve as a reference point for future adjustments if required.
-
Page 23: Index
Index Adjusting the Print Position... 20 Amount loaded ... 7 Cleaning Main unit... 13 Cleaning the Inside of the Scanner ... 13 Daily Cleaning ... 13 Documents ... 6 Document... 6 How to place documents... 7 Feeding Trouble ... 11 Ink Cartridge ... - Page 24 CANON ELECTRONICS INC. 1248, SHIMOKAGEMORI, CHICHIBU-SHI, SAITAMA 369-1892, JAPAN CANON U.S.A. INC. ONE CANON PLAZA, LAKE SUCCESS, NY 11042, U.S.A. CANON CANADA INC. 6390 DIXIE ROAD, MISSISSAUGA, ONTARIO L5T 1P7, CANADA CANON EUROPA N.V. BOVENKERKERWEG 59-61, P.O.BOX 2262, 1180 EG AMSTELVEEN, THE NETHERLANDS CANON LATIN AMERICA, INC.
