StarTech.com ST1000SMPEX Quick Start Manual

1 Port Mini PCIe Gigabit Network Adapter

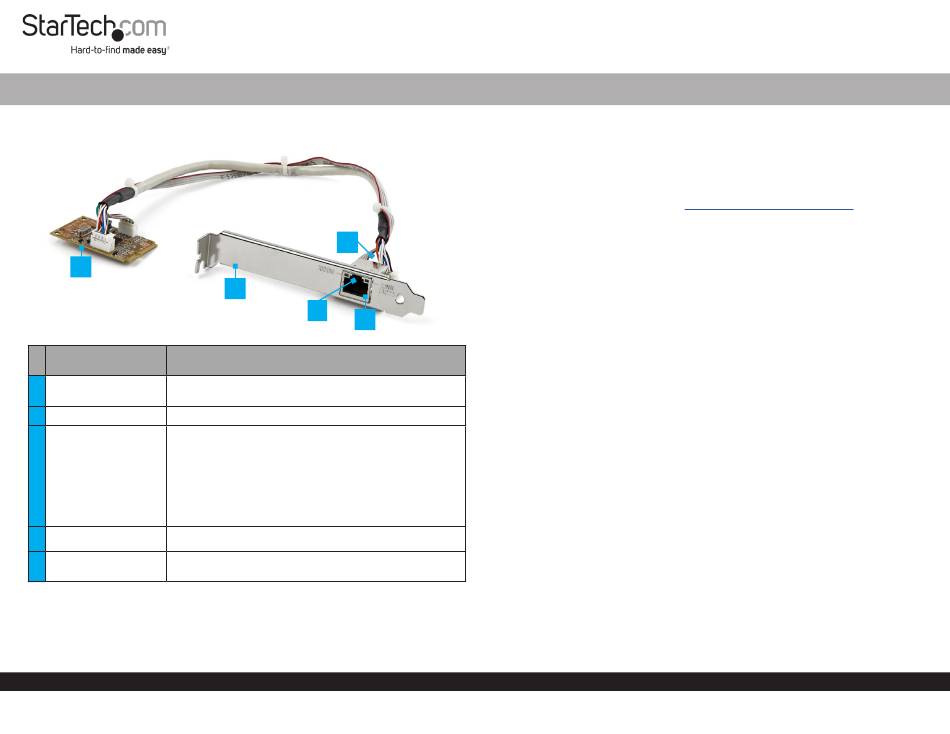

Product Diagram (ST1000SMPEX)
1
Port/LED/Connector
• Insert into a Mini PCI Express Slot on the Host
1
Mini PCI Express Card
Computer
2
Bracket • Low-Profile and Full-Height Brackets are included
• Indicates Link Speed and Activity
• Left LED Indicator is Link Speed
• Off = 10 or 100 Mbps
3
LED Indicators • Solid Green = 1 Gbps (1000M)
• Right LED Indicator is Link Activity
• Flash Amber = Activity
• Solid Amber = Link Detected
4 • Connect a Network Cable to the Network Card
Ethernet Port
• Connects to the Mini PCI Express Card using the
5 Daughter Board
Internal LED and Data Cables
Package Contents
• Mini PCIe Card x 1
• RJ45 Daughter Board x 1
• Internal LED Cable x 1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
5
2
3
4
*Product may vary from image
Function
• Internal Data Cable x 1
• Low Profile Bracket x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit
• Computer with an available Mini PCI Express slot
• Phillips head screwdriver
Installation
Install the Mini PCI Express Card and Bracket
WARNING!
Mini PCI Express Cards can be severely damaged by static electricity. Make sure
that you are properly grounded before you open your Computer Case or touch the
Mini PCI Express Card. You should wear an Anti-Static Strap when you install any
computer component. If an Anti-Static Strap isn't available, discharge any built-up
static electricity by touching a large Grounded Metal Surface for several seconds. Only
handle the Mini PCI Express Card by its edges and don't touch the gold connectors.
1. Turn off the Host Computer and any Peripheral Devices that are connected to it
(e.g. printers, external hard drives, etc.).
2. Unplug the Power Cable from the back of the Host Computer.
3. Disconnect any Peripheral Devices that are connected to the Host Computer.
4. Remove the Cover from the Host Computer Case.
Note: Consult the documentation that came with the Host Computer for details about
doing this safely.
5. Locate an available Mini PCI Express Slot and remove the corresponding Slot
Cover Plate from the back of the Host Computer Case.
Note: Consult the documentation that came with the Host Computer for details about
doing this safely. This card works in Mini PCI Express slots only.
6. Line up and gently insert the Mini PCI Express Card on the slot at a slight angle.
Ensure to match up the gap in the Mini PCI Express Card with the notch on the slot
7. Push the Mini PCI Express Card against the System Board and fasten the top edge
of the Mini PCI Express Card using two Screws and a Phillips Head Screwdriver.
8. Connect the Internal LED and Data Cables from the Daughter Board to the Mini
