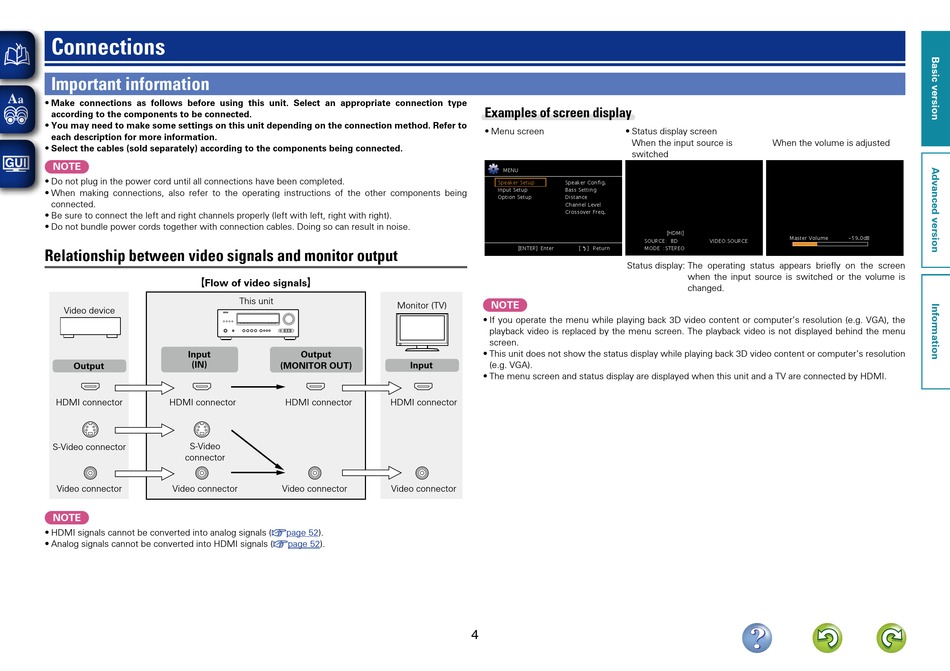

Connections

Important information

• Make connections as follows before using this unit. Select an appropriate connection type
according to the components to be connected.
• You may need to make some settings on this unit depending on the connection method. Refer to
each description for more information.
• Select the cables (sold separately) according to the components being connected.
NOTE
• Do not plug in the power cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components being
connected.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with connection cables. Doing so can result in noise.
Relationship between video signals and monitor output
GFlow of video signalsH
Video device
Input
(IN)
Output
HDMI connector HDMI connector
S-Video
S-Video connector
connector
Video connector Video connector
NOTE
• HDMI signals cannot be converted into analog signals (vpage 52).
• Analog signals cannot be converted into HDMI signals (vpage 52).
This unit
Monitor (TV)
Output
Input
(MONITOR OUT)
HDMI connector HDMI connector
Video connector Video connector
Examples of screen display
• Menu screen • Status display screen
When the input source is
switched
MENU
Speaker Setup Speaker Config.
Input Setup Bass Setting
Option Setup Distance
Channel Level
Crossover Freq.
SOURCE : BDDDDDDDDDVIDEO:SOURCE
[ENTER] Enter [ ] Return MODE : STEREO
Status display: The operating status appears briefly on the screen
NOTE
• If you operate the menu while playing back 3D video content or computer's resolution (e.g. VGA), the
playback video is replaced by the menu screen. The playback video is not displayed behind the menu
screen.
• This unit does not show the status display while playing back 3D video content or computer's resolution
(e.g. VGA).
• The menu screen and status display are displayed when this unit and a TV are connected by HDMI.
4
When the volume is adjusted
[HDMI]
Master Volume
when the input source is switched or the volume is
changed.
-59.0dB
