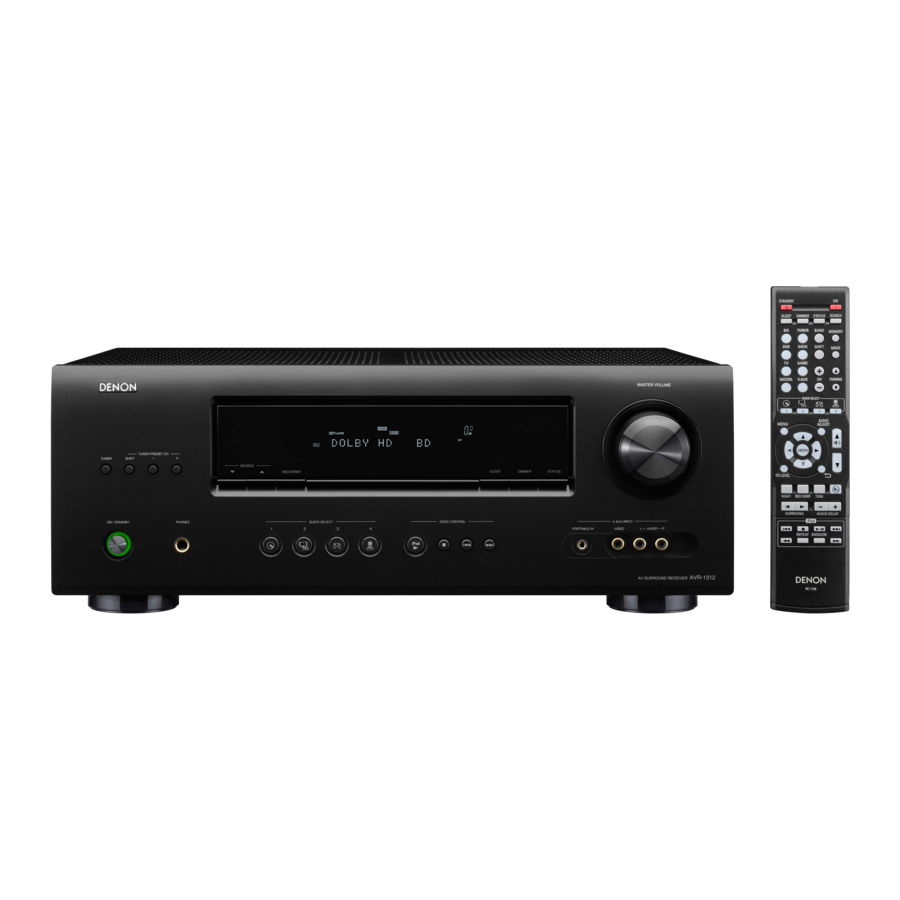

Denon AVR-1312 AV Surround Receiver Getting Started

Types of manual supplied and how to view them

Getting Started (This manual)

• Explains from how to install, connect, and set up the 5.1-channel speakers to how to easily enjoy the home theatre system. Read this first.

CD-ROM

• This explains the basic operations and advanced operations of this unit and other relevant information. Read this to learn how to use all of the features of this unit.
  D&M Holdings is striving to be a paperless company in order to help preserve the environment. Your cooperation and understanding is appreciated.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
   Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

SAFETY PRECAUTIONS

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

NOTES ON USE

• Avoid high temperatures.
  Allow for sufficient heat dispersion when installed in a rack.
• Handle the power cord carefully. Hold the plug when unplugging the cord.
• Keep the unit free from moisture, water, and dust.
• Unplug the power cord when not using the unit for long periods of time.
• Do not obstruct the ventilation holes.
• Do not let foreign objects into the unit.
• Do not let insecticides, benzene, and thinner come in contact with the unit.
• Never disassemble or modify the unit in any way.
• Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths or curtains.
• Naked flame sources such as lighted candles should not be placed on the unit.
• Observe and follow local regulations regarding battery disposal.
• Do not expose the unit to dripping or splashing fluids.
• Do not place objects filled with liquids, such as vases, on the unit.
• Do not handle the mains cord with wet hands.
• When the switch is in the OFF (STANDBY) position, the equipment is not completely switched off from MAINS.
• The equipment shall be installed near the power supply so that the power supply is easily accessible.

CAUTIONS ON INSTALLATION

* For proper heat dispersal, do not install this unit in a confined space, such as a bookcase or similar enclosure.

• More than 12 in. (0.3 m) is recommended.
• Do not place any other equipment on this unit.

Read before use

This manual explains the removal of the product from its packaging box and how to easily enjoy the home theatre system.

Accessories

Check that the following parts are supplied with the product.

1. Getting Started - 1
2. CD-ROM (Owner's manual) - 1
3. Warranty (for North America model only) - 1
4. Service network list - 1
5. Remote control unit (RC-1158) - 1
6. R03/AAA batteries - 2
7. AM loop antenna - 1
8. FM indoor antenna - 1

About this manual

Operation buttons

The operations described in this manual are based mainly on remote control operation.

Symbols

This symbol indicates a reference page on which related information is described.

This mark indicates the page of the owner's manual on the CD-ROM provided.

This symbol indicates a supplementary information and tips for operations.

This symbol indicates points to remember operations or function limitations.

Illustrations

Note that the illustrations in this manual is for explanation purposes and may differ from the actual unit.

About the CD-ROM (Getting Started / Owner's manual)

You need to have Adobe Reader^® installed on your computer to view the owner's manuals on the CD-ROM.

Click the Adobe Reader^® banner in the CD-ROM menu to download the latest version of Adobe Reader^®. Your computer must be connected to the Internet in order to download Adobe Reader^®.

Cautions on handling

• Before turning the power switch on
  Check once again that all connections are correct and that there are no problems with the connection cables.
• Power is supplied to some of the circuitry even when the unit is set to the standby mode. When going on vacation or leaving home for long periods of time, be sure to unplug the power cord from the power outlet.
• About Condensation
  If there is a major difference in temperature between the inside of the unit and the surroundings, condensation (dew) may form on the operating parts inside the unit, causing the unit not to operate properly.
  If this happens, let the unit sit for an hour or two with the power turned off and wait until there is little difference in temperature before using the unit.
• Cautions on using mobile phones
  Using a mobile phone near this unit may result in noise. If that occurs, move the mobile phone away from this unit when it is in use.
• Moving the unit
  Turn off the power and unplug the power cord from the power outlet. Next, disconnect the connection cables to other system units before moving the unit.
• About Care
  • Wipe the cabinet and control panel clean with a soft cloth.
  • Follow the instructions when using a chemical cleaner.
  • Benzene, paint thinner or other organic solvents as well as insecticide may cause material changes and discoloration if brought into contact with the unit, and should therefore not be used.

Connecting the speakers

This unit can perform 2.0/2.1 to 7.1-channel surround playback.
Here, we explain the installation and connection procedure when using 5.1-channel speakers.
For the installation procedure when using other than 5.1-channel, see "Speaker installation/connection (Advanced connection)".

• Do not plug the power plug of the main unit into the wall socket until these preparations are complete.
• For operation of the connected devices, refer to the user manuals for each device.

What you need for this step

Install

• When 5.1-channel installed

  FL Front speaker (L)
  FR Front speaker (R)
  C Center speaker
  SW Subwoofer
  SL Surround speaker (L)
  SR Surround speaker (R)
  • Install the surround speakers in a position 2 to 3 ft (60 to 90 cm) higher than ear level.


Preparation

Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to the this unit, and be sure to interconnect the channels and polarities correctly.

Connecting the speaker cables

Peel off about 0.03 ft/10 mm of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.

When using a banana plug
Tighten the speaker terminal firmly before inserting the banana plug.

• Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and – sides touch each other ( "Protection Circuit").
• Never touch the speaker terminals while the power supply is connected. Doing so could result in electric shock.
• Use speakers with the speaker impedances shown below.

  Speaker terminals	Speaker impedance
  FRONT	6 – 16 Ω
  CENTER
  SURROUND

Connect

Before setting up the speakers

1. Connect this unit to the television using an HDMI cable (sold separately)
   When a device supporting Deep Color signal transfer is connected, use a cable compatible "High Speed HDMI cable" or "High Speed HDMI cable with Ethernet".

2. Turn the television and subwoofer power on, and switch the video input to this unit (HDMI input)
   For details on how to operate the television and subwoofer, see the television and subwoofer instruction manual.

3. Insert the main unit power plug into the wall socket

4. Insert the provided batteries into the remote control unit
   1. Remove the rear lid in the direction of the arrow and remove it.

   2. Load the two batteries properly as indicated by the marks in the battery compartment.

   3. Put the rear cover back on.
5. Turn on power to the unit
   The power indicator flashes green and the power turns on.

   You can also switch the power to standby by pressing ON/STANDBY on the main unit.


Set up speakers

For optimum surround playback, adjustment of the distance of speakers and sound level of each channel, using the test tone, are required, depending on the environment for speakers to be used.
The settings for the following 5 items should be made:

Speaker Config.
Select speaker configuration and size (bass reproduction capability).

Bass Setting
Set subwoofer and LFE signal range playback.

Distance
Set distance from listening position to speakers. Measure beforehand the distance from the listening position to each speaker.

Channel Level
Set the volume of the test tone to be the same when it is output from each speaker.

Crossover Freq.
Set the maximum frequency of the bass signal output from each channel to the subwoofer. Set the Crossover Frequency to suit the bass reproduction capability of the speaker being used.

Menu operation

1. Press MENU.
   The menu is displayed on the TV screen of this unit.

2. Press ENTER.

3. Use to select the menu to be set 3 or operated, and then press ENTER.
4. Use to select a detailed setting, 4 and then press ENTER.
   • To return to the previous item, press RETURN .
   • Exiting the Menu, press MENU while the menu is displayed.
     The menu display disappears.

Speaker Config.

Default settings are underlined.

1. Press MENU.
   The menu is displayed on the TV screen of this unit.

2. Use to select "Speaker Setup", and then press ENTER.

3. Use to select "Speaker Config.", and then press ENTER.


   Do not use the outward shape of the speaker to determine selection of a "Large" or "Small" speaker. Instead, use the frequencies set in "Crossover Freq." as the standard for determining bass reproduction capability.
4. Use to select a speaker, and use to select a detailed setting.
   Items to be set are shown below.

Front Set the front speaker size.

• Large: Use a large speaker that can adequately play back low frequencies.
• Small: Use a small speaker that has inadequate playback capacity for low frequencies.

• When "Subwoofer" is set to "No", "Front" is automatically set to "Large".
• When "Front" is set to "Small", "Center", "Surround" and "Surround Back" can not be set to "Large".

Center Set the presence and size of the center speaker.

• Large: Use a large speaker that can adequately play back low frequencies.
• Small: Use a small speaker that has inadequate playback capacity for low frequencies.
• None: Select when a center speaker is not connected.
  "Large" is not displayed when "Front" is set to "Small".

Surround Set the presence and size of the surround speakers.

• Large: Use a large speaker that can adequately play back low frequencies.
• Small: Use a small speaker that has inadequate playback capacity for low frequencies.
• None: Select when the surround speakers are not connected.

• When "Surround" is set to "Large", "Surround Back" can be set to "Large".
• When "Surround" is set to "None", "Surround Back" can automatically set to "None".
