8
J2
9
J4
Serial Port 2
Pin Normal
1
J5
4
J7
8
J6
9
J8

Hardware Installation

1. Turn your computer off and any peripherals connected to the computer (i.e. Printers,
external hard drives, etc.). Unplug the power cable from the rear of the power
supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. See documentation for your computer
system for details.
3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the
computer case (Refer to documentation for your computer system for details.). Note
that this card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).
4. Gently insert the card into the open PCI Express slot and fasten the bracket to the
rear of the case.
NOTE: If installing the card into a small form factor/low profile system, replacing the
pre-installed full profile bracket with the included low profile installation bracket may
be necessary.
Instruction Manual

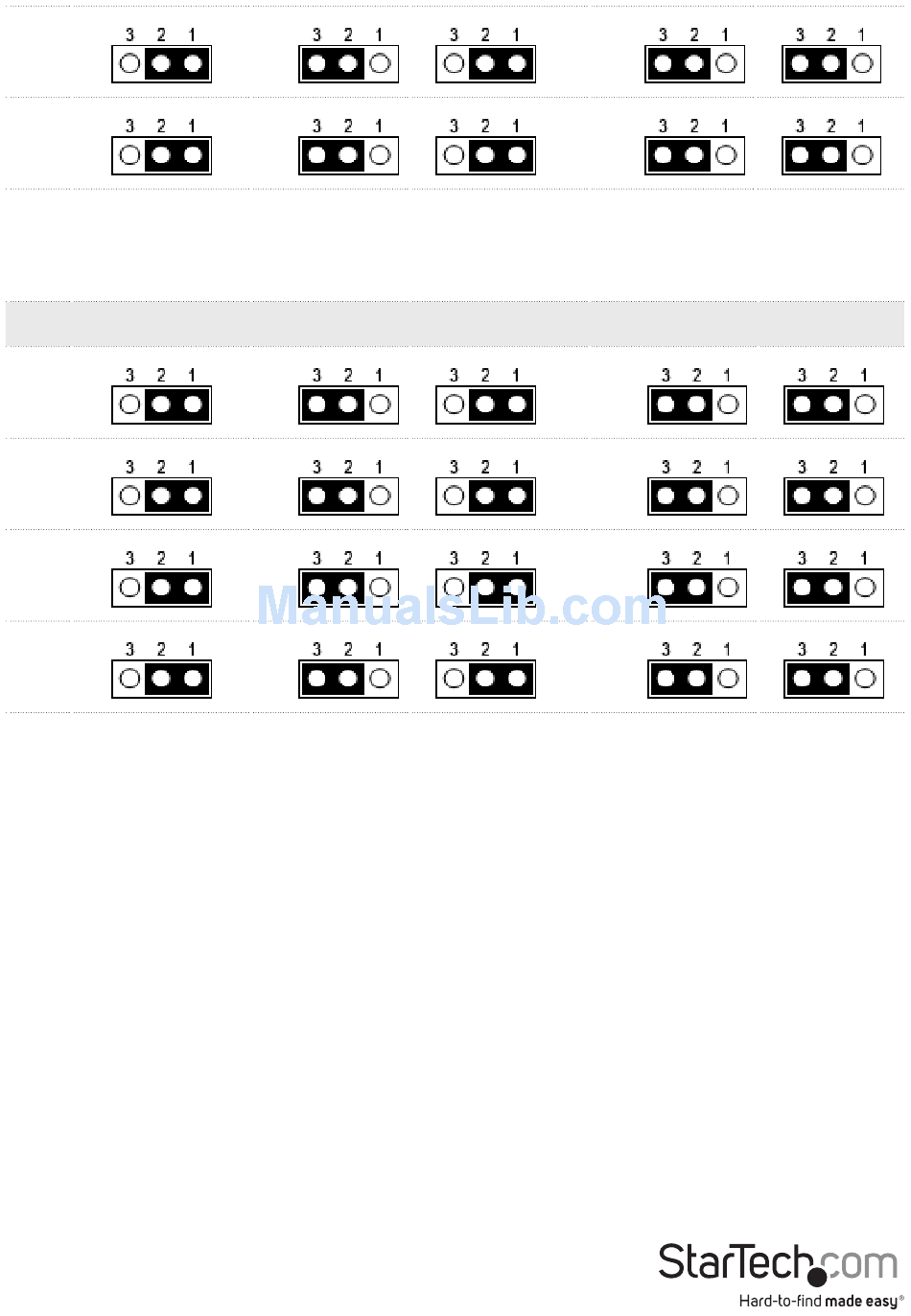

J2 J9
J4 J9
5V
J5 J9
J7 J9
J6 J9
J8 J9
J2
J4
3
J9
J9
12V
J5 J9
J7 J9
J6 J9
J8 J9
