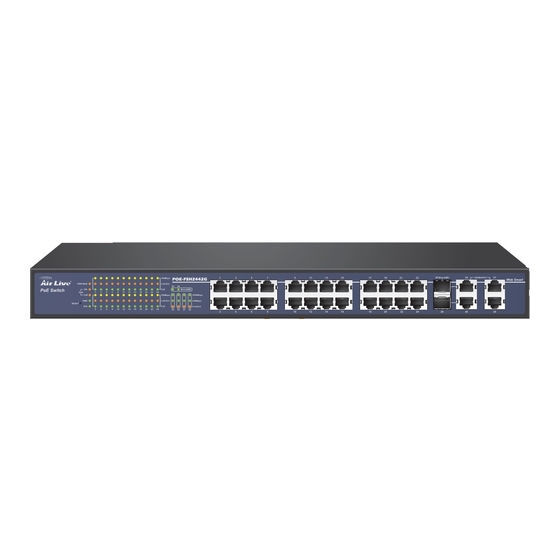

POE-FSH2442G

24+4-port Web Smart PoE Switch

he POE-FSH2442G is a 24+4-Port Mixed

Gigabit Ethernet Web Smart PoE Switch.

Port 1 ~ 24 support Power over Ethernet (PoE).

It can automatically detect the presence of an

IEEE802.3af compliant powered device (PD)

and provide power through the port. The switch

provides up 15.4W per PoE port and can be

used to power AP, IP phone, IP Cam and other

PD devices. With additional two Mini-GBIC slots,

you can extend link distance more than 200m for

optional Mini-GBIC modules. It is an ideal solution

for enterprise or WISP to deploy PoE network

environment.

PoE Function

With PoE function, POE-FSH2442G will provide power to PoE compatible device, such as IP phone,

wireless LAN access point, and IP camera. POE-FSH2442G has 24 PoE ports, and supports up to

15.4W for each PoE Port, total PoE power is Maximum 170W.

5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

POE-FSH2442G

Data

Power

Internet

Need help?

Do you have a question about the POE-FSH2442G and is the answer not in the manual?

Page 1 With PoE function, POE-FSH2442G will provide power to PoE compatible device, such as IP phone, wireless LAN access point, and IP camera. POE-FSH2442G has 24 PoE ports, and supports up to 15.4W for each PoE Port, total PoE power is Maximum 170W.
Page 2: Web Management
Web management Through the Web browser, you can configure POE-FSH2442G such as Tag VLAN, Port Trunking, Priority Queues, Port Mirroring and Broadcast Storm. We also provide another way to control your POE-FSH2442G. With the attached Web management Utility, you can easily discover all the Web...
Page 3 Management Address table - Supports 802.1Q VLAN with 256 VLAN groups - 8K - Supports 802.1p Priority Queues - Supports static Port Trunk (Support Maximum 6 LED indicators groups per device and 8 ports per group) - Per Unit: Power, System ( 2 LEDs ) - Supports Port Mirroring - Per port: TX: Link/Activity, Speed ( 2 LEDs ) - Supports Broadcast Storm Control...
Page 4 Ordering Information: POE-FSH2442G 24+4-port Web Smart PoE Switch Optional Accessories: SFP-LX-10 1000Base-LX MiniGBIC Transceiver, LC connector, 10km SFP-SX 1000Base-SX MiniGBIC Transceiver, LC connector, 500m 5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan...
