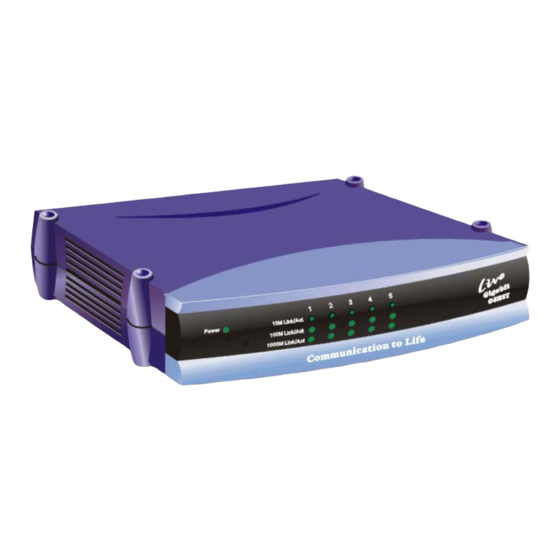

Live-GSH5T
All Gigabit SOHO Switch
5 × 10/100/1000Base-T
NWay Auto-MDI/MDIX
With Broadcast Storm Control
User's Manual
Live-GSH5T v.1.0
Aug., 2005
Copyright © OvisLink Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Live-GSH5T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Air Live Live-GSH5T

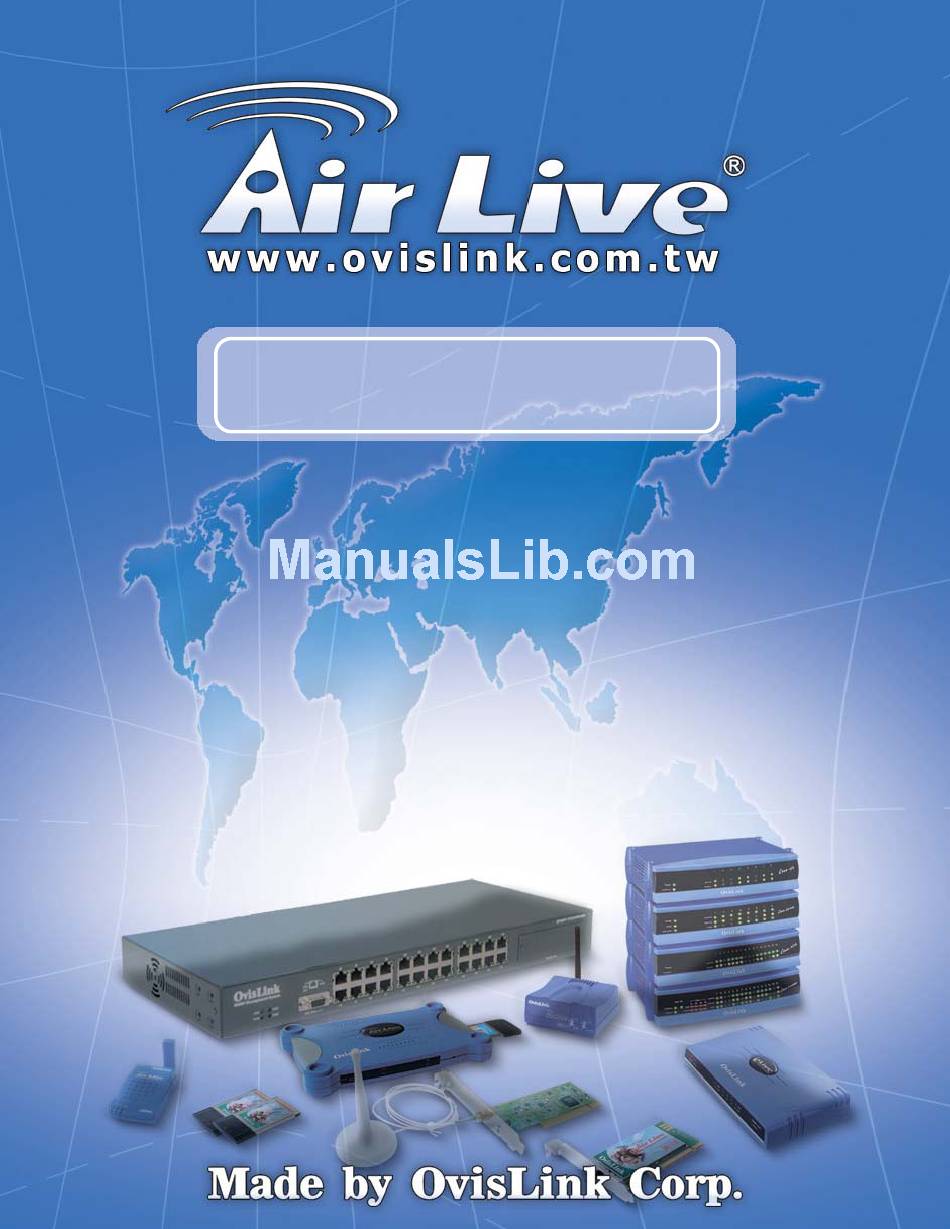

  • Page 1 Live-GSH5T All Gigabit SOHO Switch 5 × 10/100/1000Base-T NWay Auto-MDI/MDIX With Broadcast Storm Control User’s Manual Live-GSH5T v.1.0 Aug., 2005 Copyright © OvisLink Corp.
  • Page 2: Fcc Warning

    Contents in this manual are subject to changes without prior notice. About this User’s Manual This User’s Manual aims at helping users to know the key features of Live-GSH5T Gigabit Ethernet Switch and to install it in a 10/100/1000BASE-TX Gigabit Ethernet Local Area Network (LAN).
  • Page 3: Table Of Contents

    Solution for the digital media age..................2 Why Copper-wired Gigabit Connection?............... 2 Product Features....................... 3 PREPARATION BEFORE INSTALLATION.........4 Unpack the Package......................4 The Front Panel......................... 5 The Rear Panel........................5 Station Ports ........................5 DC Power Jack........................ 5 Live-GSH5T Gigabit Ethernet Switch...
  • Page 4 Straight-through Cable Connection ................10 RJ-45 Gigabit Port Description..................11 Summary:........................11 Copper-wired Gigabit Connection ................12 Transmission Modes ....................... 12 Copper-wired Gigabit ports (1000BASE-T Transmission) .......... 12 Centralized Server Farms ....................12 Gigabit Backbone Connections..................13 Live-GSH5T Gigabit Ethernet Switch...
  • Page 5 System LED ........................14 Station Port LEDs ......................14 Power LED ........................14 Gigabit Port LEDs (for Port #1 ~ 5)................15 10M/100M/1000M Link/Act LED ................15 LED Summary Table...................... 16 APPENDIX A PRODUCT SPECIFICATIONS ..........17 APPENDIX B TROUBLESHOOTING...............19 Live-GSH5T Gigabit Ethernet Switch...
  • Page 6 Tables Table 3-1 Using straight-through and crossover cables..........8 Table 3-2 1000BASE-T pin assignments for RJ-45 connector ........9 Table 4-1 1000BASE-T pin assignments for RJ-45 connector ........11 Table 5-1 Station Port LED ..................16 Live-GSH5T Gigabit Ethernet Switch...
  • Page 7: Product Overview

    Each port provides up to 2000Mbps in full duplex mode. With its auto-sensing, Live-GSH5T automatically detects the speed of the devices you plug into, and routes the incoming data to its destination. Its auto-negotiating function allows existing devices running at different speeds to communicate easily within the same network.
  • Page 8: System/Port Status Information At A Glance

    It also costs less than the fiber-optic cable. Thus, it is very convenient to choose a copper-wired gigabit switch such as Live-GSH5T, since you can easily set up a gigabit backbone using the kind of twisted-pair cable so ordinarily used in 10/100BASE-TX environment.
  • Page 9: Product Features

    1 Product Overview Product Features The main features of Live-GSH5T 5-port Gigabit Ethernet Switch are as follows: Gigabit Ethernet Switch with five 10/100/1000Mbps station ports Fully compliant with Ethernet/Fast Ethernet standards: - IEEE 802.3 (10BASE-T Ethernet) IEEE 802.3u (100BASE-TX Fast Ethernet) IEEE 802.3ab (1000BASE-T Gigabit Ethernet over twisted-pair)
  • Page 10: Preparation Before Installation

    2 Preparation before Installation Preparation before Installation Unpack the Package Before you begin the installation of Live-GSH5T All Gigabit Switch, make sure that you have all the necessary accessories that come with your package. Follow the steps below to unpack your package contents: 1.
  • Page 11: The Front Panel

    Appendix A, Product Specifications for detailed information. Station Ports Live-GSH5T All Gigabit Switch is equipped with 5 x 10/100/1000Mbps auto-sensing and auto-negotiating ports. You can use these ports to connect to end stations, servers or other networking devices.
  • Page 12: Installation Of The Switch

    Desktop Installation Live-GSH5T Gigabit Switch has four rubber pads attached on each corner of its underside. These pads serve as cushions against vibration and prevent the switch from sliding off its position. They also allow adequate ventilation space when you place the switch on top of another device.
  • Page 13: Installation On Wall

    3 Installation of the Switch Installation on Wall Live-GSH5T Gigabit Switch can be mounted on a wall with wall anchors and screws. To mount the Switch on wall, please follow the steps below: Drill two holes, the distance between both of which should be 9 cm (such as the illustration below).
  • Page 14: Rj-45 Station Port Cable Requirements

    Figure 3-5 and 3-6. Fig 3-4 10/100/1000BASE-T pin assignments for RJ-45 connector Fig 3-5 Pin assignments for straight-through cabling Port cabling requirements The 10/100/1000BASE-T port can automatically determine whether or not it needs to cross over Live-GSH5T Gigabit Ethernet Switch...
  • Page 15: Connecting To Power

    Table 3-2 below. Therefore, the ports do not require crossover cables when connecting to another Switch. If Live-GSH5T interoperates with a device that cannot automatically correct for crossover, it makes the necessary adjustment prior to commencing auto-negotiation. If it interoperates with a device that implements MDI/MDIX crossover, a random algorithm as described in IEEE 802.3 section 40.4.4...
  • Page 16: Expanding Your Network

    4 Expanding your Network Expanding Your Network Live-GSH5T Gigabit Ethernet Switch is primarily designed as a central switching device to manage your workgroup/departmental traffic within Ethernet/Fast Ethernet/Gigabit Ethernet. The following section will introduce to you the basics of network connectivity in virtual workgroup computing within Ethernet/Fast Ethernet/Gigabit Ethernet environment.
  • Page 17: Rj-45 Gigabit Port Description

    When connecting a computer to the station port/gigabit port of the Live-GSH5T, use a straight-through UTP cable. When connecting the gigabit port of Live-GSH5T to the station port of another hub/switch, use a straight-through cable. When uplinking Live-GSH5T to any port (MDI-X) of another hub/switch, use a straight-through cable.
  • Page 18: Copper-Wired Gigabit Connection

    Server farms refer to the placement of departmental servers in a data center, where they can be provided with consolidated backup uninterrupted power supply, and a proper operating environment. The trend toward server farm architecture has accelerated recently and is expected to continue in order to ease administrative costs. Live-GSH5T Gigabit Ethernet Switch...
  • Page 19: Gigabit Backbone Connections

    Fig. 4-4 Server Farm Gigabit Backbone Connections Live-GSH5T Gigabit Ethernet Switch serves primarily as a backbone switch to connect your existing Ethernet/Fast Ethernet network to Gigabit networking environment. Live-GSH5T can provide five 1000BASE-T gigabit backbone connections to another gigabit switch or high-end server.
  • Page 20: Led Indicators

    5 LED Indicators LED Indicators Before connecting any network device to Live-GSH5T Gigabit Ethernet Switch, you should take a few minutes to look over this chapter and get familiar with the front panel LED indicators of your Switch. The front-panel LED indicators of Live-GSH5T Gigabit Ethernet Switch comprise three sets of LEDs: System Status LEDs, Diagnostic LEDs, and Gigabit Port LEDs.
  • Page 21: Gigabit Port Leds (For Port #1 ~ 5)

    Green 10M Link/ACT: A 10Mbps connection has been made Green 100M Link/ACT: A 100Mbps connection has been made Green 1000M Link/ACT: A 1000Mbps connection has been made Live-GSH5T Gigabit Ethernet Switch...
  • Page 22: Led Summary Table

    No connection is made 100M Link/Act ● Green A 100Mbps Connection is made Blinking Transmitting/Receiving No connection is made 1000M Link/Act ● Green A 1000Mbps Connection is made Blinking Transmitting/Receiving No connection is made Table 5-1 Station Port LED Live-GSH5T Gigabit Ethernet Switch...
  • Page 23: Appendix A Product Specifications

    10BASE-T: 4-pair 100 ohm Category 3,4,5 UTP (100 m) cable 100BASE-TX: 4-pair 100 ohm Category 5 UTP/STP (100 m) cable 1000BASE-T: 4-pair 100 ohm Category 5 UTP/STP (100 m) cable • LED layout System LEDs Power LED Live-GSH5T Gigabit Ethernet Switch...
  • Page 24: Power Input

    32 ~ 122 °F / 0 ~ 50 °C • Storage Temperature - 40 ~ 149°F / -40 ~ 65 °C • Humidity < 95% (non-condensing) Safety / EMI Certificates UL, TUV, VDE, FCC Class A, CE Live-GSH5T Gigabit Ethernet Switch...
  • Page 25: Appendix B Troubleshooting

    • If you find out where the problem is but cannot solve it by yourself, or you simply cannot locate what is at fault, please contact your local dealer for technical support. Live-GSH5T Gigabit Ethernet Switch...
