DVP-NS71HP/NS75H/NS76H
Notes
• Notes about DVD+RWs/DVD+Rs, DVD-RWs/
DVD-Rs or CD-Rs/CD-RWs
Some DVD+RWs/DVD+Rs, DVD-RWs/DVD-
Rs, or CD-Rs/CD-RWs cannot be played on this
player due to the recording quality or physical
condition of the disc, or the characteristics of the
recording device and authoring software.
The disc will not play if it has not been correctly
finalized. For more information, refer to the
operating instructions for the recording device.
Note that some playback functions may not work
with some DVD+RWs/DVD+Rs, even if they
have been correctly finalized. In this case, view
the disc by normal playback. Also some DATA
CDs/DATA DVDs created in Packet Write
format cannot be played.
• Music discs encoded with copyright protection
technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are marketed
by some record companies. Please be aware that
among those discs, there are some that do not
conform to the CD standard and may not be
playable by this product.
• Note on DualDiscs
A DualDisc is a two sided disc product which
mates DVD recorded material on one side with
digital audio material on the other side.
However, since the audio material side does not
conform to the Compact Disc (CD) standard,
playback on this product is not guaranteed.
Note on playback operations of
DVDs and VIDEO CDs
Some playback operations of DVDs and
VIDEO CDs may be intentionally set by
software producers. Since this player plays
DVDs and VIDEO CDs according to the disc
contents the software producers designed,
some playback features may not be available.
Also, refer to the instructions supplied with
the DVDs or VIDEO CDs.
8
Front panel display
When playing back a DVD VIDEO/DVD-VR mode disc
Disc type
Playing status
Lights up during Current audio signal (41)
Repeat Play (31)
When playing back a VIDEO CD with Playback Control (PBC) (28)
Disc type Playing status
Lights up during A-B Repeat Play (32)
When playing back a CD, DATA DVD (MP3 audio/DivX video), DATA CD (MP3 audio/DivX
video), or VIDEO CD (without PBC)
Lights up during
Playing status Repeat Play (31)
2
Disc type* Lights up when playing MP3 audio tracks (51)
*1 When playing DivX video files, the current track is not displayed.
*2 When playing DATA DVDs, the DVD indicator is displayed.
When playing VIDEO CDs (without PBC), the VCD indicator is displayed.
10
Copyrights
This product incorporates copyright
protection technology that is protected by
U.S. patents and other intellectual property
rights. Use of this copyright protection
technology must be authorized by
Macrovision, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
Lights up when you can change the angle (44)
Current title/chapter or playing
time (37)
Current scene or playing time (37)
1
Current track* (37)
Playing time (37)

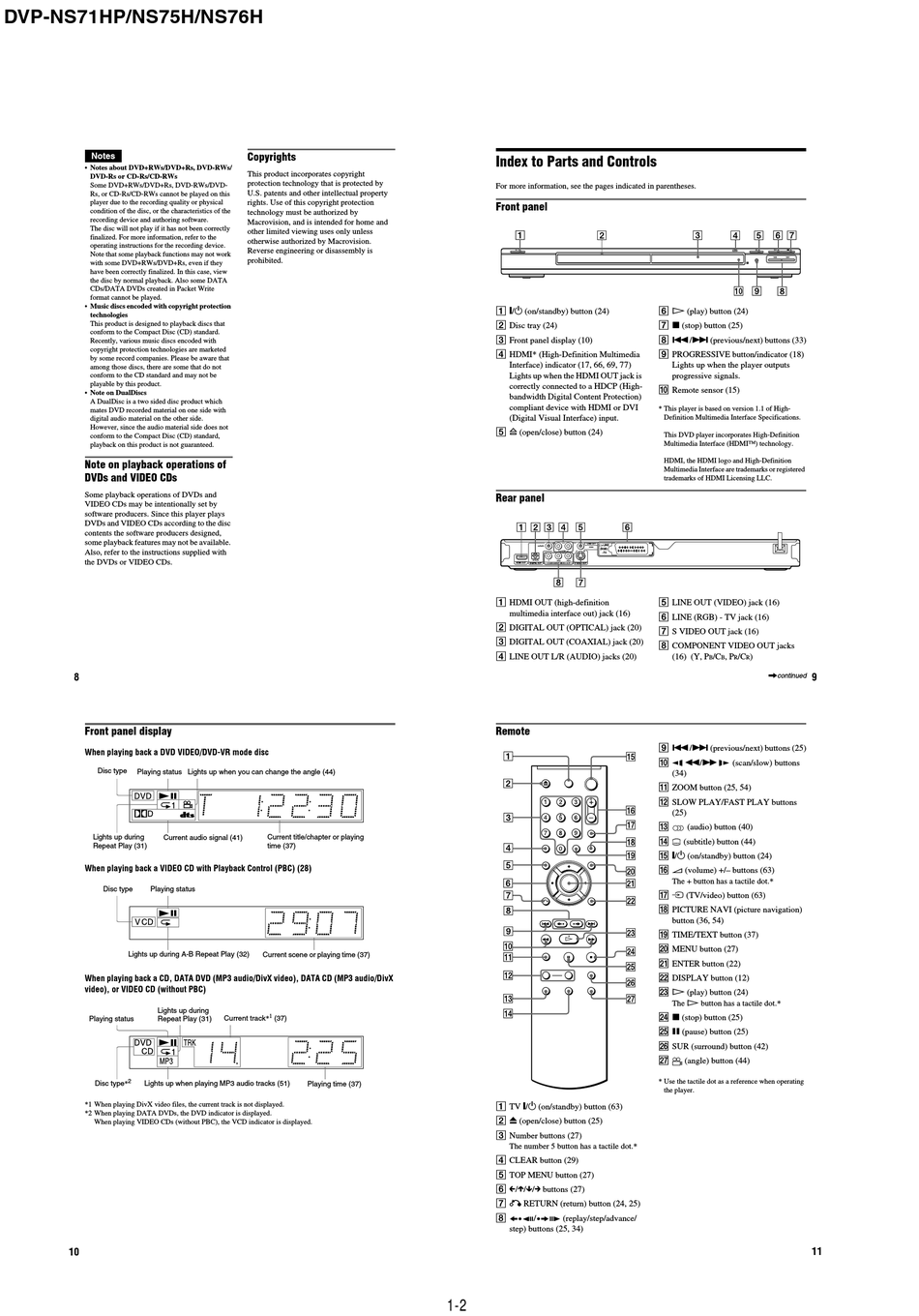

Index to Parts and Controls

For more information, see the pages indicated in parentheses.
Front panel
[/1 (on/standby) button (24)
Disc tray (24)
Front panel display (10)
HDMI* (High-Definition Multimedia
Interface) indicator (17, 66, 69, 77)
Lights up when the HDMI OUT jack is
correctly connected to a HDCP (High-
bandwidth Digital Content Protection)
compliant device with HDMI or DVI
(Digital Visual Interface) input.
A (open/close) button (24)
Rear panel
LINE OUT
LINE
COAXIAL
VIDEO
(RGB)
L
-TV
OPTICAL Y P /C P /C
B B R R
HDMI OUT
DIGITAL OUT S VIDEO OUT
HDMI OUT (high-definition
multimedia interface out) jack (16)
DIGITAL OUT (OPTICAL) jack (20)
DIGITAL OUT (COAXIAL) jack (20)
LINE OUT L/R (AUDIO) jacks (20)
Remote
TV [/1 (on/standby) button (63)
Z (open/close) button (25)
Number buttons (27)
The number 5 button has a tactile dot.*
CLEAR button (29)
TOP MENU button (27)
C/X/x/c buttons (27)
O RETURN (return) button (24, 25)
/ (replay/step/advance/
step) buttons (25, 34)
1-2
H (play) button (24)
x (stop) button (25)
./> (previous/next) buttons (33)
PROGRESSIVE button/indicator (18)
Lights up when the player outputs
progressive signals.
Remote sensor (15)
* This player is based on version 1.1 of High-
Definition Multimedia Interface Specifications.
This DVD player incorporates High-Definition
Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
LINE OUT (VIDEO) jack (16)
LINE (RGB) - TV jack (16)
S VIDEO OUT jack (16)
COMPONENT VIDEO OUT jacks
(16) (Y, P /C , P /C )
B B R R
,continued
9
./> (previous/next) buttons (25)
m/M
(scan/slow) buttons
(34)
ZOOM button (25, 54)
SLOW PLAY/FAST PLAY buttons
(25)
(audio) button (40)
(subtitle) button (44)
[/1 (on/standby) button (24)
2 (volume) +/– buttons (63)
The + button has a tactile dot.*
(TV/video) button (63)
PICTURE NAVI (picture navigation)
button (36, 54)
TIME/TEXT button (37)
MENU button (27)
ENTER button (22)
DISPLAY button (12)
H (play) button (24)
The H button has a tactile dot.*
x (stop) button (25)
X (pause) button (25)
SUR (surround) button (42)
(angle) button (44)
* Use the tactile dot as a reference when operating
the player.
11
