Sony DVP-NS71HP Service Manual page 48

DVP-NS71HP/NS75H/NS76H
MV-49 (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO (2ch), AUDIO (8ch),
POWER SUPPLY, HDMI) PRINTED WIRING BOARD

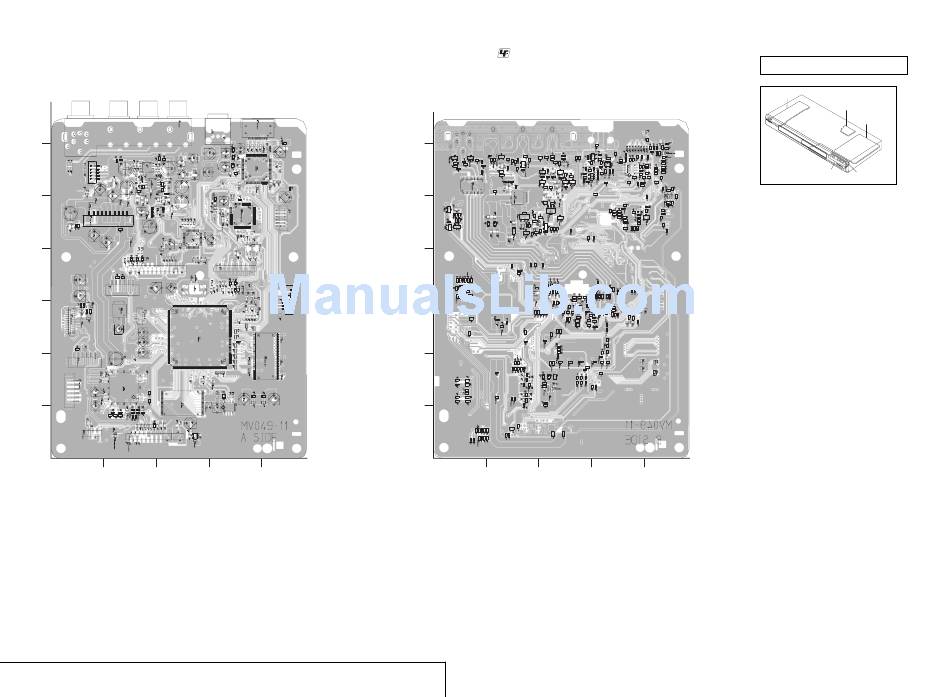

MV-49 BOARD (SIDE A)
F
E
D
C
B
A
3
1 2
CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO (2ch), AUDIO (8ch), POWER SUPPLY, HDMI
4
5
MV-49
• : Uses unleaded solder.
MV-49 BOARD (SIDE B)
F
E
D
C
B
A
3
1 2
For printed wiring board
There are a few cases that the part printed on
this diagram isn't mounted in this model.
Power Board
MV-49 BOARD
SIDE A
IC101 C-3
IC102 A-3
IC104 B-5
IC108 A-2
IC110 C-2
IC201 B-2
IC401 F-2
IC405 G-4
IC406 E-3
IC701 F-4
IC708 E-4
Q101 C-1
Q103 C-1
4
5
4-16
ER-41 Board (SCART)
(DVD-NS76H: AEP,UK ONLY)
MV-49 Board
(CPU, Servo-DSP, AVDEC, DRIVE,
VIDEO, AUDIO (2ch), AUDIO (8ch),
POWER SUPPLY, HDMI)
SW-470 Board
(SWITCH) IF-146 Board
(INTERFACE)
SIDE B
IC105 B-3
IC107 D-2
IC111 C-3
IC303 E-2
IC304 F-1
IC403 E-3
IC702 F-4
IC703 F-4
IC705 F-5
IC706 F-4
IC707 E-5
Q102 D-1
Q304 E-1
Q305 E-1
Q401 F-3
Q402 F-3
Q403 F-3
Q404 F-3
Q405 F-3
Q407 F-2
Q408 F-2
Q411 F-3
Q416 E-2
Q601 E-2
Q602 E-2
Q701 E-4
Q702 E-5
D308 F-1
D309 F-1
D401 F-3
D402 E-3
D404 E-3
