Sony DVP-NS71HP Service Manual page 47

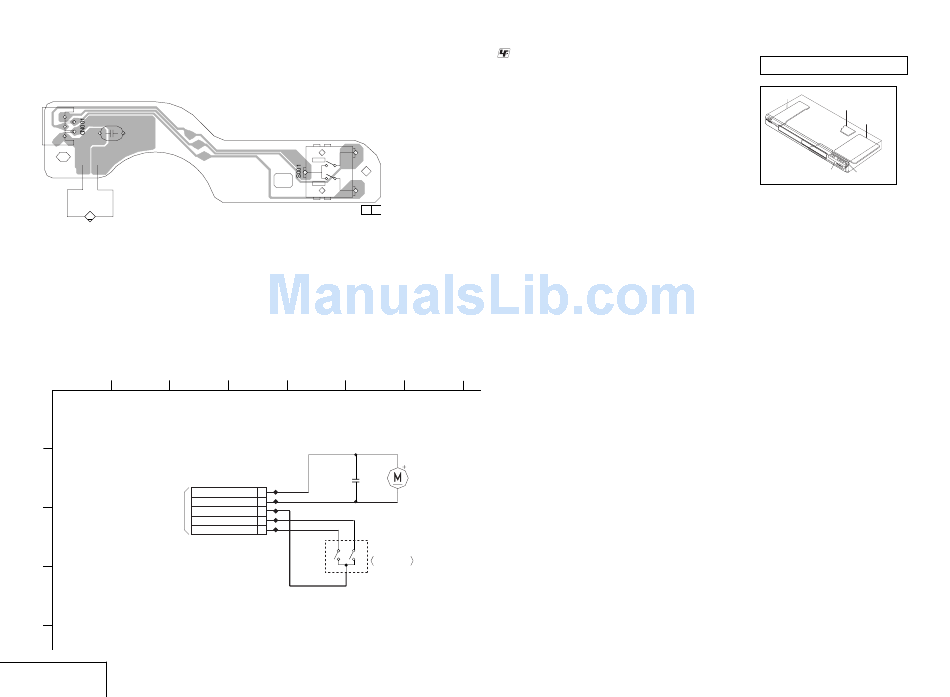

MS-203 (LOADING MOTOR) PRINTED WIRING BOARD
MS-203 BOARD
5
4
1 2
C001
+
-
M M
M001
(LOADING MOTOR)
For Schematic Diagram
• Refer to page 4-13 for printed wiring board of MS-203 board.
1 2
MS-203 BOARD
LOADING MOTOR
A
-REF.NO.:1000 SERIES-
XX MARK:NO MOUNT
NO MARK:REC/PB MODE
B
TO MV-49 BOARD (2/7)
CN202
(SEE PAGE 4-19 TO 4-20)
C
D
LOADING MOTOR
MS-203
S001
(CHUCK/TRAY DETECT)
2
1
3
1-861-327- 12 21
3 4
5
M001
C001
LOADING
XX
CN001 5P
MOTOR
JL001
LDM+ 1
JL002
LDM- 2
JL005
GND/CTL 3
JL004
CKSW1 4
JL003
OCSW1 5
3
2
1
4-13
• : Uses unleaded solder.
6 7
S001
CHUCK/TRAY
DETECT
DVP-NS71HP/NS75H/NS76H
For printed wiring board
There are a few cases that the part printed on
this diagram isn't mounted in this model.
Power Board
ER-41 Board (SCART)
(DVD-NS76H: AEP,UK ONLY)
MV-49 Board
(CPU, Servo-DSP, AVDEC, DRIVE,
VIDEO, AUDIO (2ch), AUDIO (8ch),
POWER SUPPLY, HDMI)
SW-470 Board
(SWITCH) IF-146 Board
(INTERFACE)
4-14
