DVP-NS71HP/NS75H/NS76H

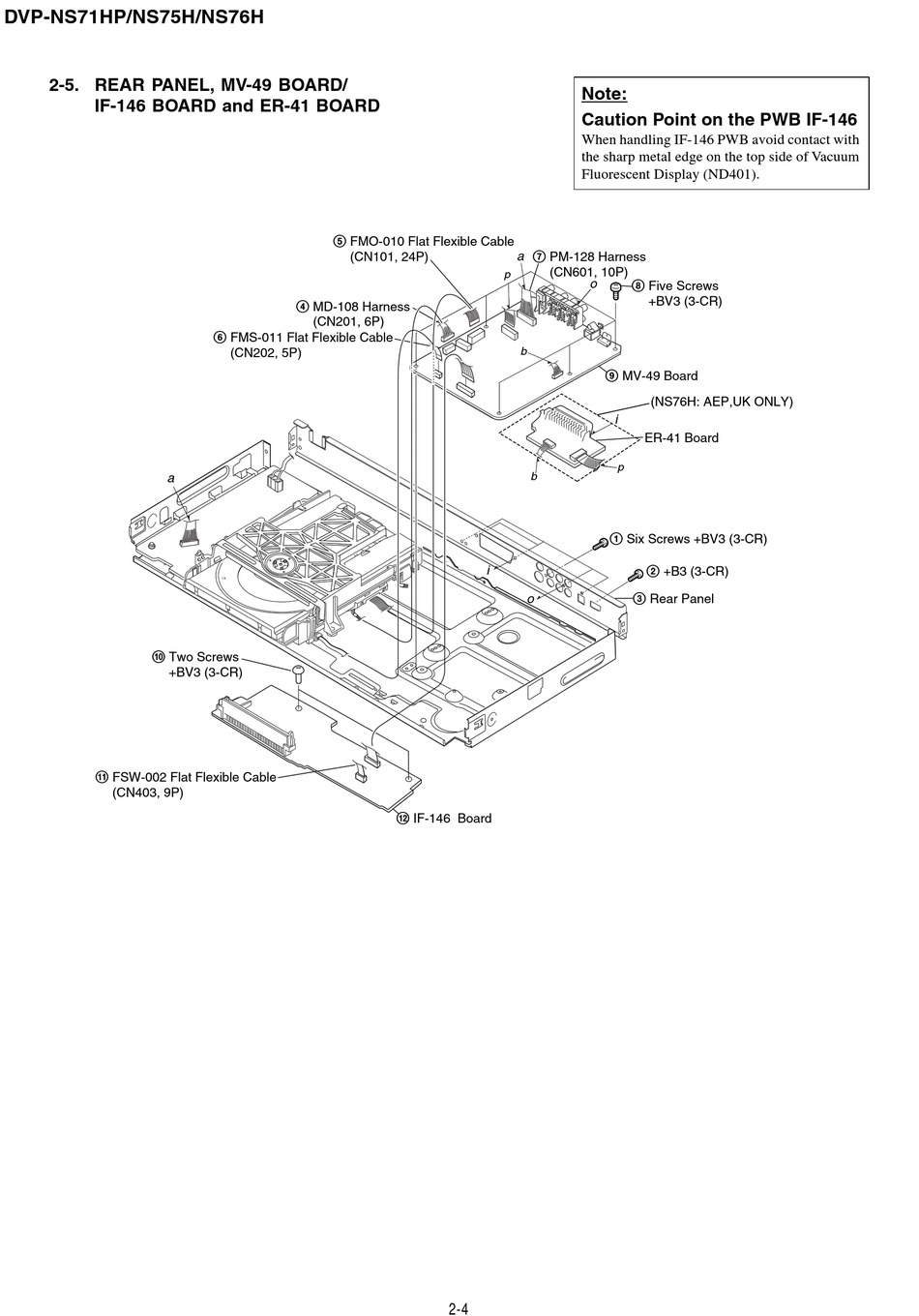

2-5. REAR PANEL, MV-49 BOARD/
Note:
IF-146 BOARD and ER-41 BOARD
Caution Point on the PWB IF-146
When handling IF-146 PWB avoid contact with
the sharp metal edge on the top side of Vacuum
Fluorescent Display (ND401).
5 FMO-010 Flat Flexible Cable
a
(CN101, 24P) 7 PM-128 Harness
(CN601, 10P)
p
o
8 Five Screws
+BV3 (3-CR)
4 MD-108 Harness
(CN201, 6P)
6 FMS-011 Flat Flexible Cable
b
(CN202, 5P)
9 MV-49 Board
(NS76H: AEP,UK ONLY)
i
ER-41 Board
p
b
a
1 Six Screws +BV3 (3-CR)
i
2 +B3 (3-CR)
o 3 Rear Panel
q; Two Screws
+BV3 (3-CR)
qa FSW-002 Flat Flexible Cable
(CN403, 9P)
qs IF-146 Board
2-4
