DVP-NS71HP/NS75H/NS76H
For Schematic Diagram
• Refer to page 4-33 for printed wiring board of Power board.
1 2
POWER BOARD

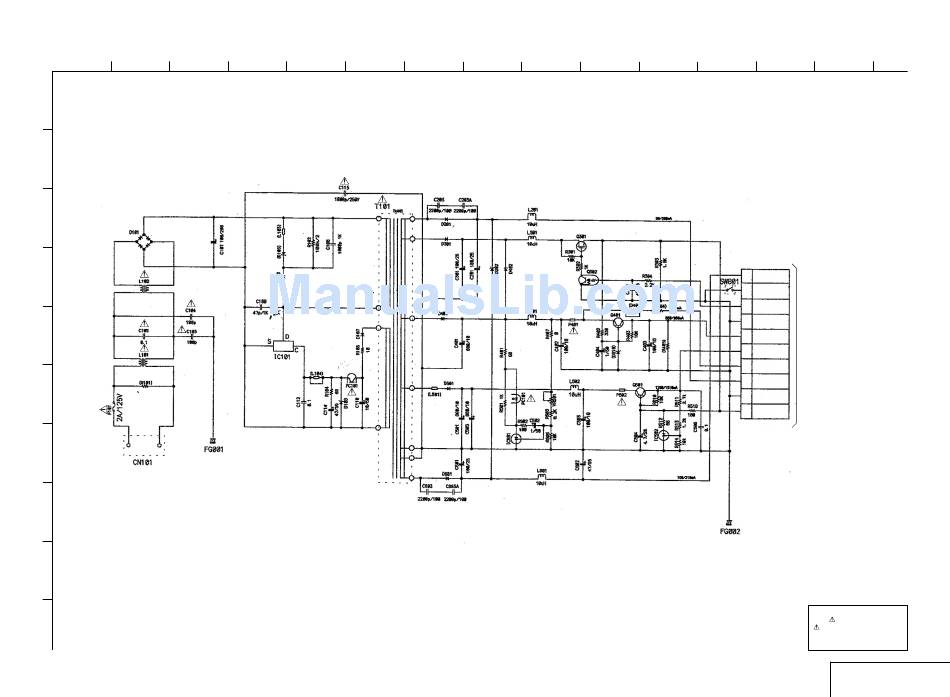

POWER SUPPLY (SRV1838UC)
A
(DVP-NS71HP/NS75H)
-REF.NO.:1000 SERIES-
XX MARK:NO MOUNT
NO MARK:PB MODE
MARKED:MOUNT TABLE
B
C
D
E
F
G
H
I
J
3 4
5 6
4-35
10
7 8 9
11
12 13 14
10 EVER-10V
9 POWER SW
8 P-CONT
7 GND
6 SW+5V
TO CN601
MV-49 BOARD
5 SW+3.3V
(SEE PAGE 4-27 TO 4-28)
4 EVER+5V
3 EVER+11V
2 MTR GND
1 SW+8V
CN201
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part number
specified.
4-36
15
POWER BOARD
POWER BLOCK (SRV1838UC)
