VCON HD5000 Quick Start Manual

Ptz camera
Hide thumbs Also See for HD5000:

Advertisement

Quick Links

V
What's in the Box?
Sony PTZ
HD5000
camera
Remote
Control
Microphone
(8 meter cable)
Power cable
LAN cable
(CAB42001)
DVI to XGA
adapter
Data option includes:
Video/audio
crossbar adapter
(ATI 6140004600)
Video output
adapter
(ATI 6110006800)
S-video cables (2)
(CAB90051)
HD5000 Quick Start Guide

Required Setup

Wireless keyboard/mouse
and IR receiver
Composite video cables (2)
(CAB72010)
Camera control cable
(CAB00039)
HD5000 Installation/ Setup
Guide and Recovery Media
(including operating system)
Tabletop Pod
VGA cable,
1.5 meter
(CAB00055)
Microphone
(2 meter cable)
Camera control cable to
PTZ camera for FECC
Keyboard & Mouse
to wireless keyboard
Power cable
www.vcon.com
Video/audio crossbar adaptor
for PTZ camera's video/audio
Video card
Audio card
VoiceFinder
(optional)
USB inputs
DVI to XGA
adapter
LAN cable
to XGA
monitor
Mic
Data
connections
(optional)
Tabletop Pod
Speakers
(optional)
(optional)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VCON HD5000

  • Page 1: Required Setup

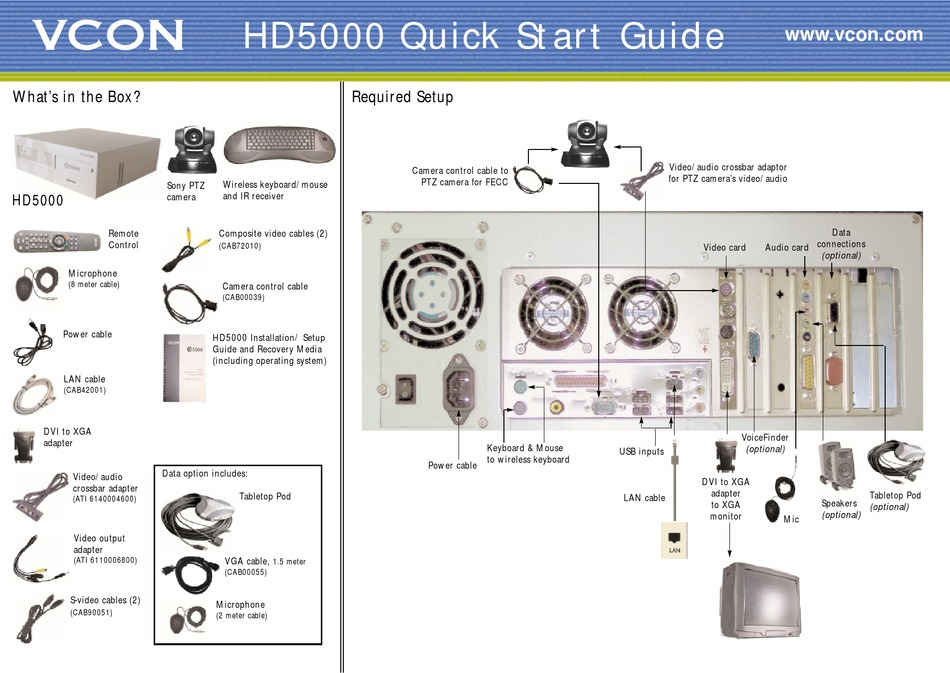

    HD5000 Quick Start Guide www.vcon.com What’s in the Box? Required Setup Video/audio crossbar adaptor Camera control cable to for PTZ camera’s video/audio PTZ camera for FECC Wireless keyboard/mouse Sony PTZ and IR receiver HD5000 camera Data Remote Composite video cables (2)
