For tool with lock button
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For continuous operation, pull the switch trigger and
then push in the lock button from either side.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
For tool with lock-off button
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, depress the lock-off button from either
side and pull the switch trigger. Release the switch
trigger to stop.

Electronic function

For Model KP0810C only
The tool equipped with electronic function are easy to
operate because of the following features.
Constant speed control
Electronic speed control for obtaining constant speed.
Possible to get fine finish, because the rotating speed is
kept constant even under load condition.
Soft start
Soft-start feature minimizes start-up shock, and makes
the tool start smoothly.

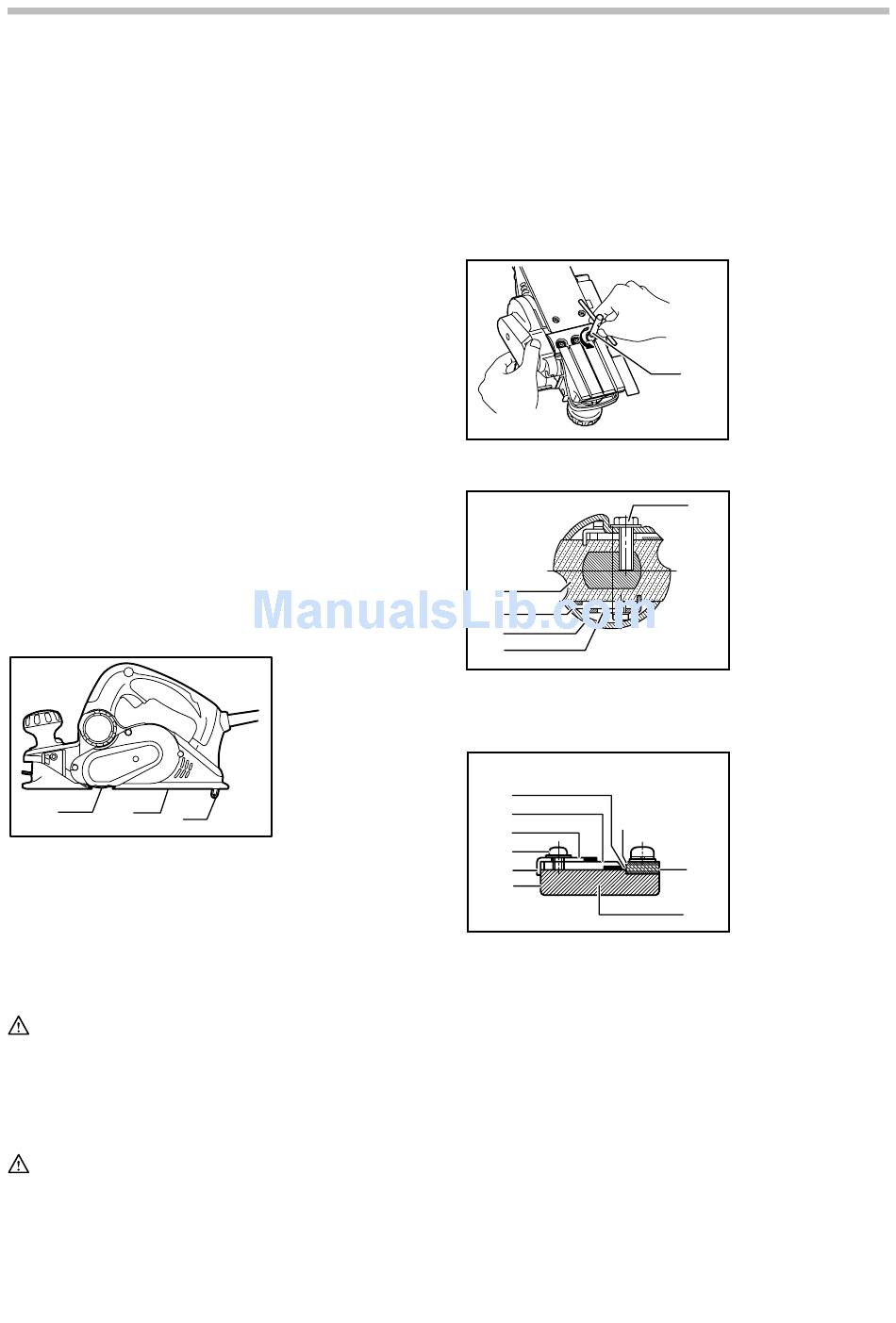

Foot
1
2
3
007688
After a cutting operation, raise the back side of the tool
and a foot comes under the level of the rear base. This
prevents the tool blades to be damaged.
ASSEMBLY
CAUTION:
Always be sure that the tool is switched off and
•
unplugged before carrying out any work on the
tool.

Removing or installing planer blades

CAUTION:
Tighten the blade installation bolts carefully when
•
attaching the blades to the tool. A loose installation
bolt can be dangerous. Always check to see they
are tightened securely.
1. Planer blade
2. Rear base
3. Foot
5
Handle the blades very carefully. Use gloves or
•
rags to protect your fingers or hands when
removing or installing the blades.
Use only the Makita wrench provided to remove or
•
install the blades. Failure to do so may result in
overtightening or insufficient tightening of the
installation bolts. This could cause an injury.
For tool with standard planer blades
007641
2
3
4
5
002555
2
3
1
4
5
6
7
002556
To remove the blades on the drum, unscrew the
installation bolts with the socket wrench. The drum cover
comes off together with the blades.
To install the blades, first clean out all chips or foreign
matter adhering to the drum or blades. Use blades of the
same dimensions
oscillation/vibration will result, causing poor planing
action and, eventually, tool breakdown.
Place the blade on the gauge base so that the blade
edge is perfectly flush with the inside edge of the gauge
plate. Place the adjusting plate on the blade, then simply
press in the heel of the adjusting plate flush with the
back side of the gauge base and tighten two screws on
the adjusting plate. Now slip the heel of the adjusting
1. Socket wrench
1
1. Bolt
1
2. Drum
3. Planer blade
4. Drum plate
5. Adjusting plate
1. Inside edge of
gauge plate
2. Blade edge
3. Planer blade
4. Adjusting plate
5. Screws
6. Heel
7. Back side of
8
gauge base
8. Gauge plate
9
9. Gauge base
and weight, or drum
