ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area, and remove all packing materials except
for the plastic ties around the upper body arms. Do not dispose of the packing materials until assembly is com-
pleted. Assembly requires your own Phillips screwdriver
cutters
.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

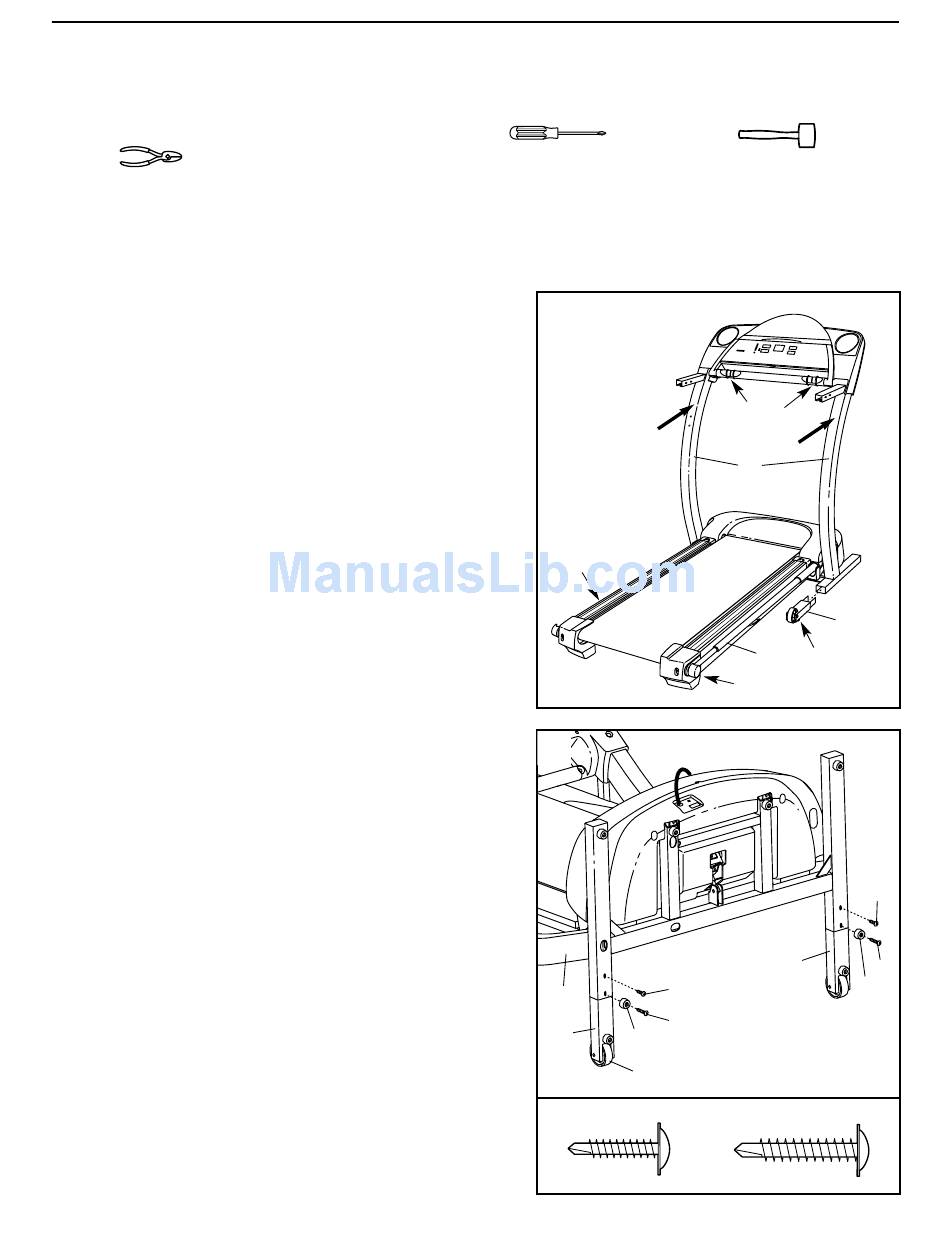

1. With the help of a second person, carefully raise the
treadmill to the upright position as shown. If there are
plastic ties on the pulse sensors, remove them.
Insert one of the Extension Legs (55) into the treadmill as
shown. Make sure that the Extension Leg is turned so
the Base Pad (44) is on the bottom. If necessary, tip the
Uprights (64) forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same
way.
Note: To prevent damage to the Upper Body Arms (2) if
they are moved too far sideways, the lower end of each
Upper Body Arm features a breakaway connector. If one
of the Upper Body Arms breaks away, simply press the
lower end back onto the Ball Joint (109, not shown).
2. With the help of a second person, carefully lower the
Uprights (64) as shown. Note: It may be helpful to place
your foot on one of the Wheels (58) as you tip the
Uprights. Make sure that the Extension Legs (55) re-
main in the Uprights.
Attach each Extension Leg (55) with an Extension Screw
(35), a 1" Screw (13), and a Base Pad (44) as shown.
Note: One replacement Base Pad (44) may be included.
If a Base Pad becomes worn and needs to be replaced,
use the replacement Base Pad.
, rubber mallet
1
2
2
64
55
44
58
35
6
and wire
Ties
64
55
2
44
109
55
35
13
13
35
13
44
