Display Controls

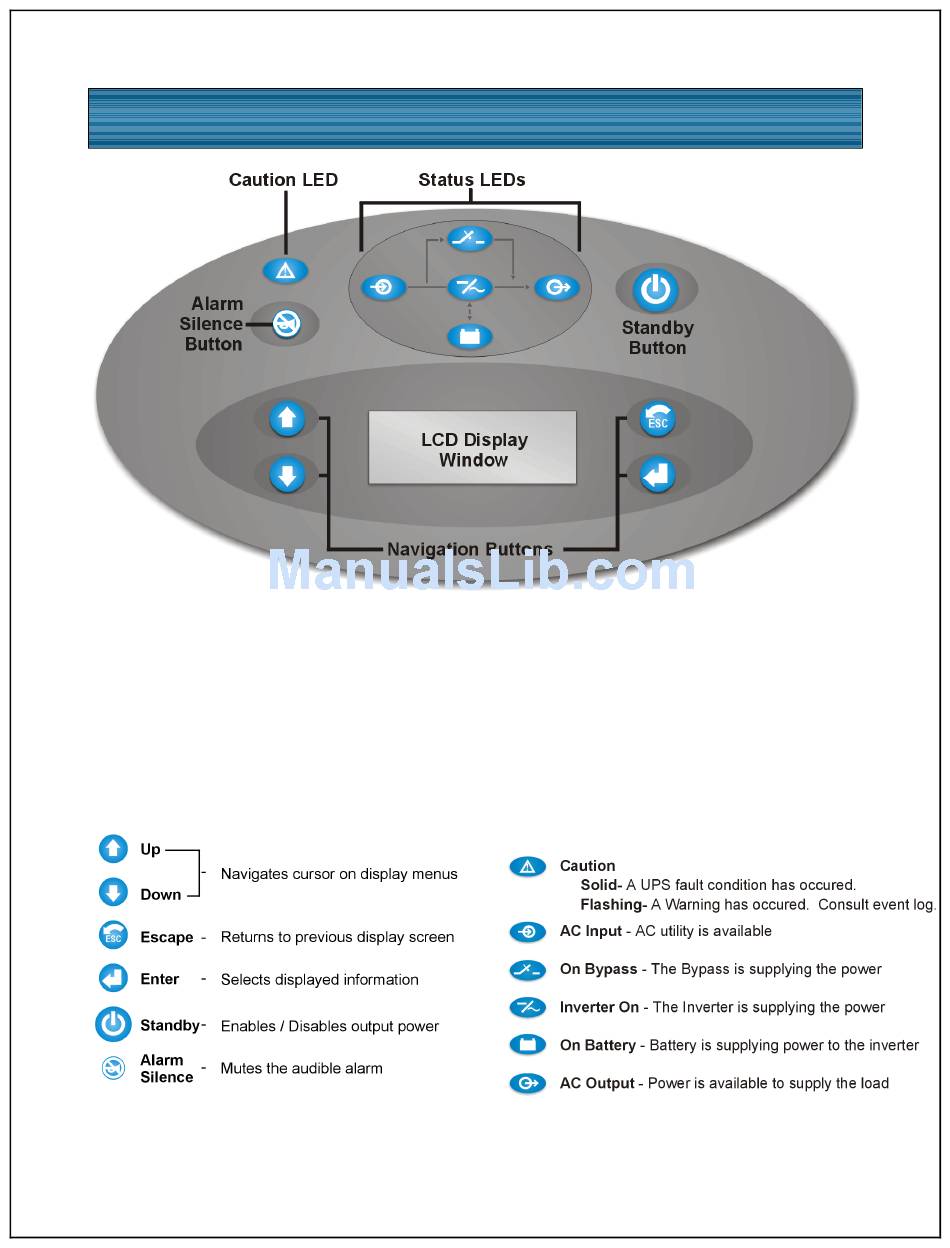

The User Interface Module informs the user of the status of the UPS, and lets him configure the UPS to
his own needs or preferences
It consists of a series of Status LED's, a 4 line by 20 character LCD display window, and buttons for
navigation (as displayed above).
Buttons
Refer to the legend below in order to properly
navigate the Nfinity User Interface.

Controls and Indicators

.
19
LEDs
Refer to the legend below to indicate occurrence
when an LED is lit.
