APBX IP4G User Manual
NOTE: It's recommended to re-set IP address of APBX via WAN at the first time, Since DHCP server on
LAN port is enabled by default, Other DHCP client enabled devices in the network may obtain IP from
APBX rather than real DHCP server. And then access APBX via LAN after configuring LAN settings.
1) Connect APBX to your PC directly or through switch.
Make sure IP address of your PC is in network 192.168.1.0/255.255.255.0, if not, you need to appoint an IP
address for your PC, for example, 192.168.1.3

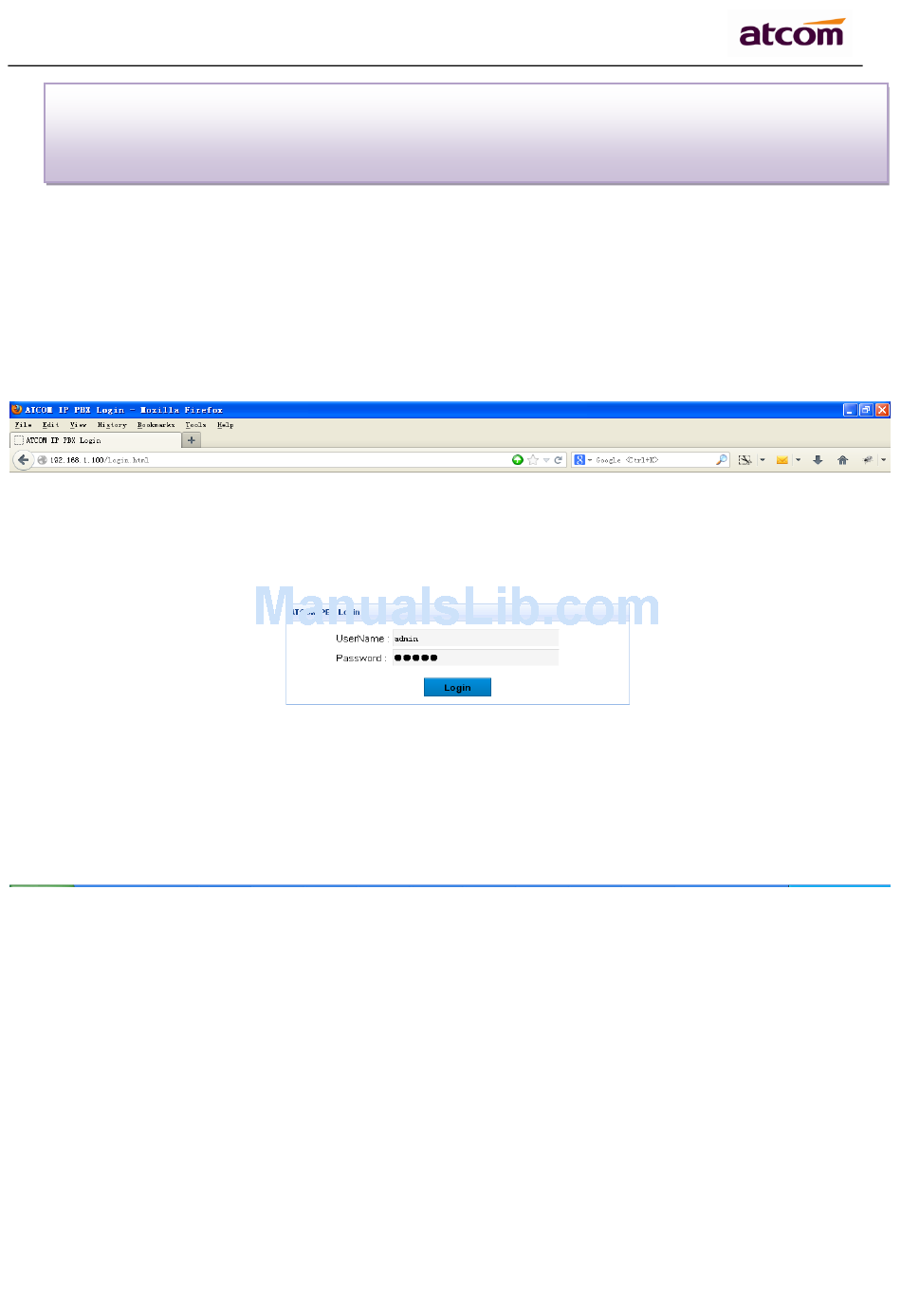

2) Login APBX as administrator via WEB GUI
User: admin
Password: atcom
3) Go to Network Settings ->WAN.
Re-set IP of WAN port.
4) Go to Network Settings -> LAN.
Re-set IP of LAN port.
2.2 WAN Settings
There are three ways to set an IP address to WAN port: DHCP, Static IP, PPPoE.
DHCP
5
ATCOM TECHNOLOGY CO., LIMITED
