I
NSTALLATION
The CX-2 can be fastened directly to a suitable surface or to a rigging clamp by
means of its adjustable mounting bracket.

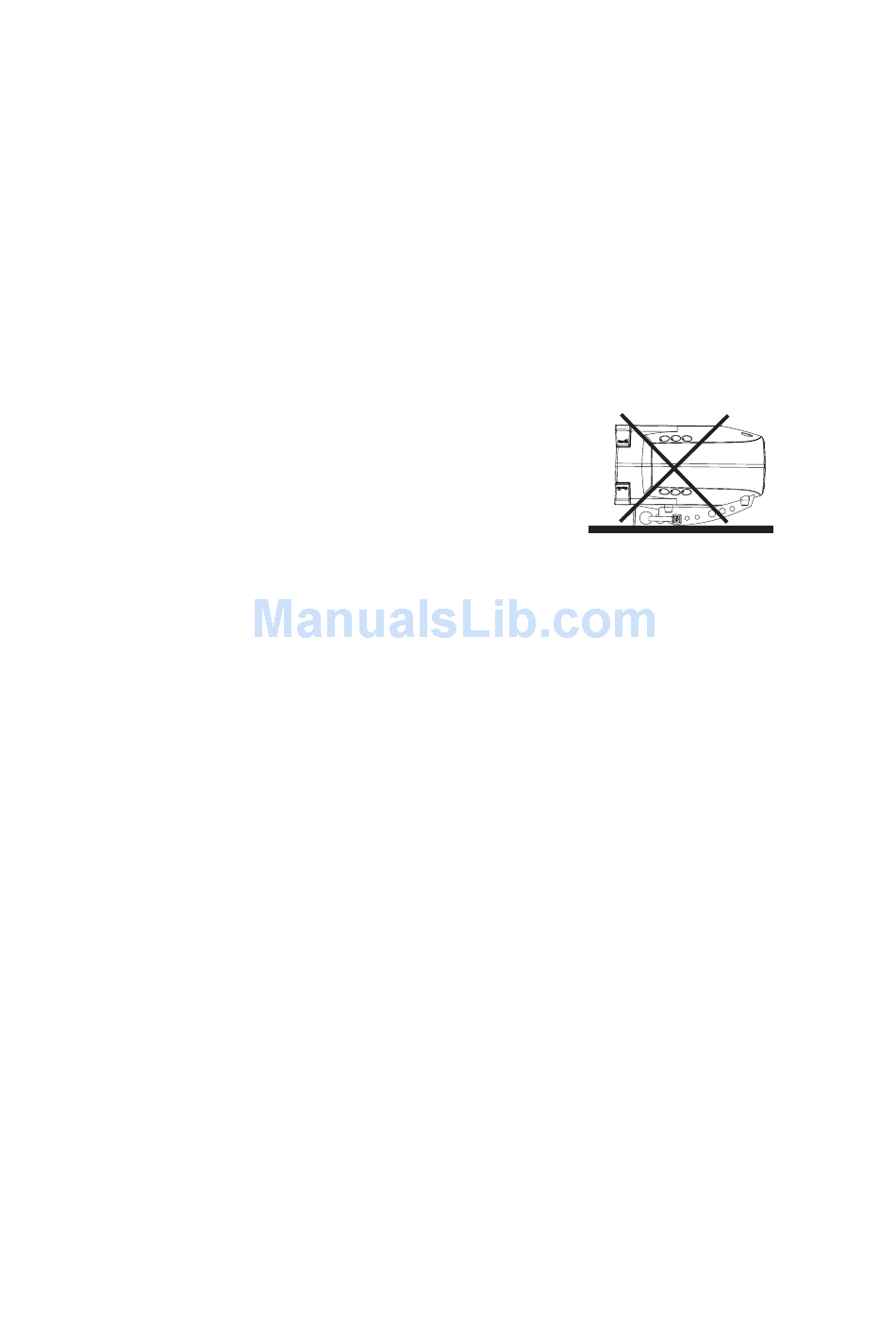

Do not lay the fixture flat on its mounting bracket
arms or position it so that there is less than 10 cm
(4 in.) clearance around the fan and air vents.
For maximum lamp life, do not place the fixture
directly on or beside a speaker cabinet or other
source of strong vibrations.
To rig t he CX- 2
Warning! Always use a secure means of secondary attachment. Block
access below the work area before proceeding.
1 Verify that the clamp (not included) is undamaged and can bear at least 10
times the fixture's weight. Bolt the clamp securely to the bracket with a grade
8.8 (minimum) M12 bolt and lock nut, or as recommended by the clamp
manufacturer, through the 13 mm hole in the center of the mounting bracket.
2 If permanently installing the fixture, verify that the hardware (not included)
and mounting surface can bear at least 10 times the fixture's weight. The four
6.2 mm holes and/or the 13 mm hole in the mounting bracket may be used.
3 Verify that the structure can support at least 10 times the weight of all
installed fixtures, clamps, cables, auxiliary equipment, etc.
4 Working from a stable platform, clamp or fasten the fixture to the structure.
5 Install a safety cable that can hold at least 10 times the weight of the fixture
through/over the support and through a hole in one of the aluminum arms.
6 Loosen the swivel locks and tilt the fixture to the desired angle. Turn the
swivel locks clockwise to tighten. If a swivel lock does not tighten fully, pull
the handle out, turn it counterclockwise, and retighten. Repeat as necessary.
7 Verify that the fixture is located at least 0.3 meters (12 in.) away from the
surface to be illuminated and at least 0.1 meters (4 in.) from any combustible
materials. Verify that the clearance around the fan and air vents is at least 0.1
meters (4 in.). Verify that there are no flammable materials nearby.
