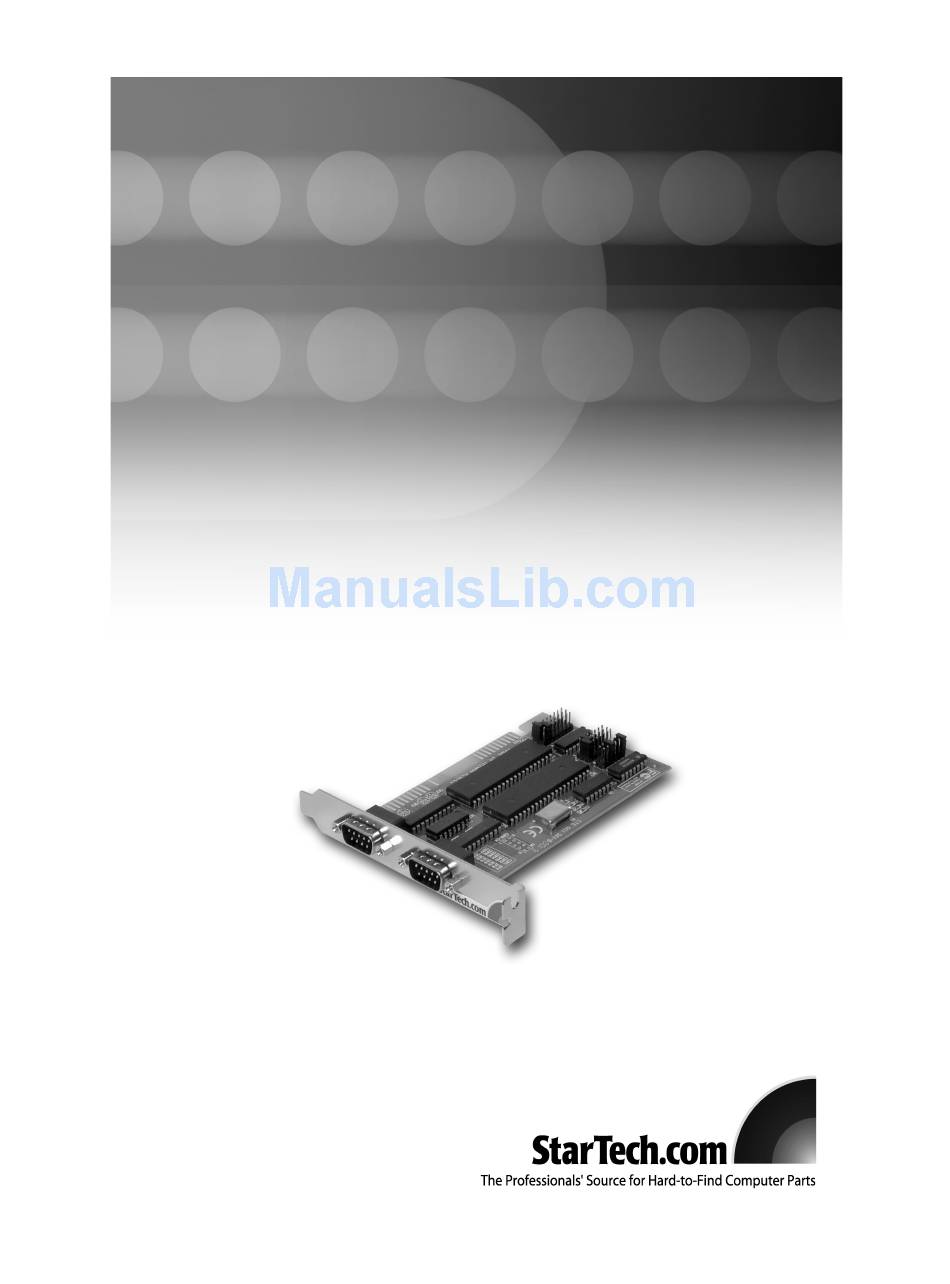

- Page 1 ISA Serial Card 1 Port RS-232 Serial ISA Card 2 Port RS-232 Serial ISA Card ISA1S550 Instruction Manual ISA2S550 Actual product may vary from photo...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Specifications ...........4 Accessory Products from StarTech.com ......5 Technical Support . -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com RS-232 ISA serial card. This product allows you to add between one or two serial ports to your computer (varies by model), using an easy jumper-driven configuration. An excellent choice to maximize your investment in existing serial-based technology or integrated custom solutions. -
Page 5: Installation
Instruction Manual Installation This section will guide you through the installation of your ISA card and the related software. Please read through the instructions carefully and complete each step in the order listed. Installing the Card 1. Make sure that your system is unplugged and you are grounded. 2. - Page 6 Instruction Manual Rate 115.2 Kbits/sec (default) 230.4 Kbits/sec 460.8 Kbits/sec Set the transfer rate for each port by setting the jumpers according to the following example: In the example above, Port A has been set to 460.8 Kbits/sec and Port B has been set to 230.4 Kbits/sec.
-
Page 7: Specifications
In the example above, Port A is set to IRQ 4 and Port B is set to IRQ 3. Specifications Interface ISA, 8-bit Ports 1 x DB-9 male (ISA1S550) 2 x DB-9 male (ISA2S550) Maxmium Data Transfer Rate 460 Kbits/sec. Configurable IRQs... -
Page 8: Accessory Products From Startech.com
Instruction Manual Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. 6 ft. Straight Through Serial/Parallel Cable DB25 M/F SC6MF 6 ft. -
Page 9: Technical Support
