Defender Digital Video Recorder Instruction Manual page 8

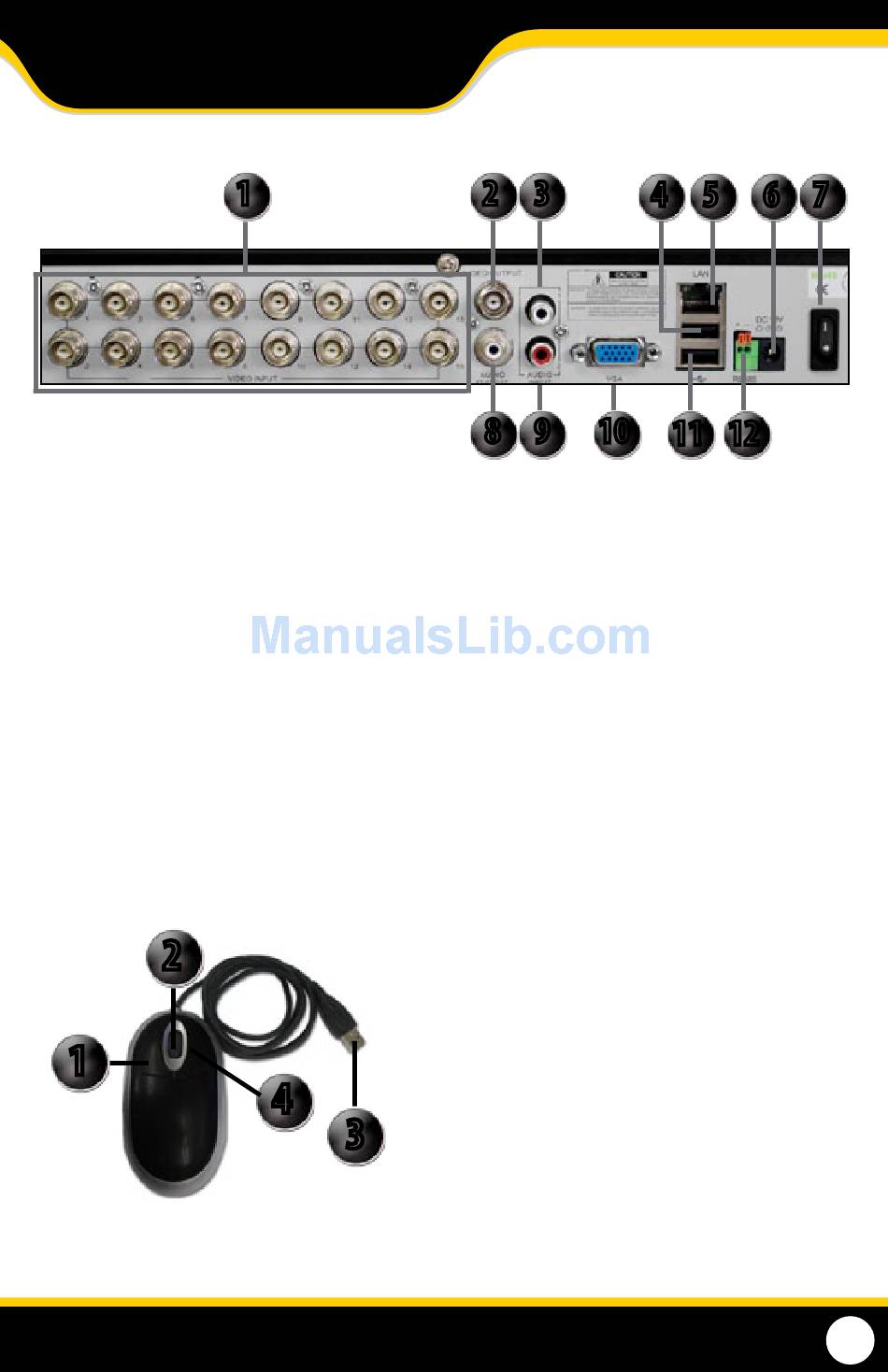

CONNECTIONS
DVR BACK
1. Camera Connect:
2. Video Output:
3. Audio Input:
4. Mouse input:
5. LAN Connection:
6. Power Connection: Connect DVR to power source.
MOUSE
2
1
1
Camera connections
for cameras.
Connects to a monitor.
Accepts a microphone and/
or audio-supported camera
(not included).
Connect the USB
(before power up).
Connects to router.
1. Select:
2. Scroll Wheel:
4
3. USB Connection:
3
4. Deselect:
2 3
8 9 10
7. Power Switch:
8. Audio Output:
9. Audio Input:
10. VGA:
11. USB Connection:
12. PTZ:
Click this button to select
highlighted object.
This wheel has no function on
this DVR.
Connects to the USB mouse port
(top port) on the back of the DVR.
Allows you to exit the menu you are
currently in. When in live view, it
will open the submenu.
4 5 6 7
11 12
Turns DVR power ON and OFF.
Connects to speaker/
audio input.
Accepts a microphone and/
or audio-supported camera
(not included).
Connects to VGA monitor.
Connect USB drive for backup.
Connects to two-wire PTZ
camera (not included).
8
