Hardware Description

Reader
Port
Copywriter USB
11 Flash
Duplicator

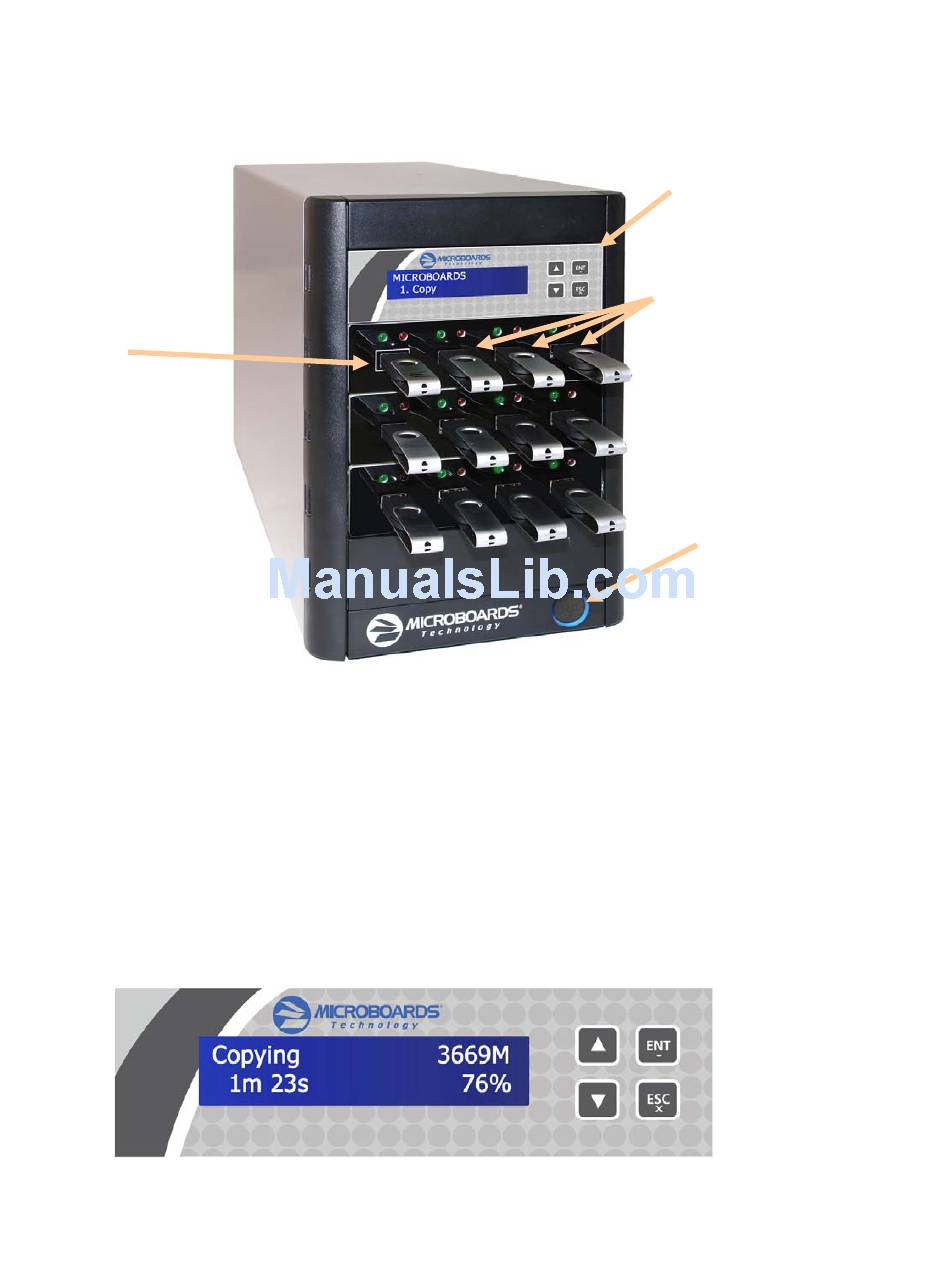

The Copywriter Flash Duplicator consists of a reader port; 7, 11, or 15 flash drive ports; and
Controller module.
The master card will always be inserted into the TOP LEFT port.
The blank cards will always be inserted into the remaining ports.
The green LEDs above each port will flash when in use or will stay solid green after a successful
duplication. The red LED above each port will light when an error on that card occurs.
The LCD display will show the different menu selections and also information pertaining to the
recording process. Here is a typical example of what is displayed during the COPY process:
Displays the function being performed, such as
Displays an estimate of the
amount of time remaining
6
Copying or Comparing
Shows the size ▲
of the Master
▼
Displays the percentage
of the master that has
been copied
Controller Interface
and Display
Recorder Ports
(all ports below the first
row are also recorder
ports)
Power Switch
Navigate through
the menu options
Accept the
ENT
menu item
showing
ESC Exit from the
menu item
showing
