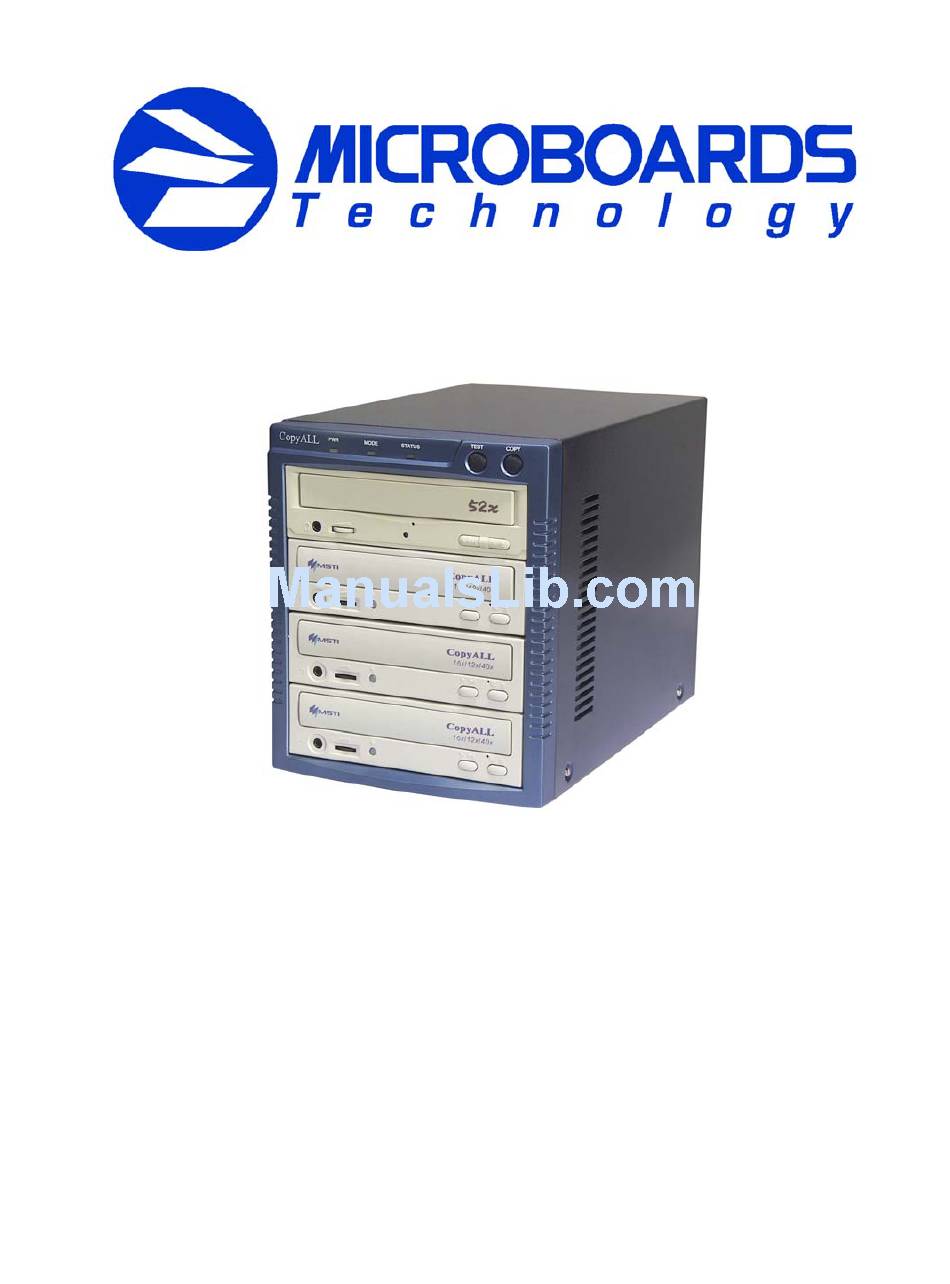

- Page 1 QD-123 CD DUPLICATOR Users Manual Version 1.2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION __________________________________________________________________ 3 1. COMPONENTS __________________________________________________________________ 3 2. INSTALLATION _________________________________________________________________ 3 3. FEATURES _____________________________________________________________________ 4 3.1 COPY MODE (Direct Write) ___________________________________________________ 4 3.2 TEST MODE _________________________________________________________________ 4 3.3 ERASE (re-write) Function _____________________________________________________ 5 4. LED LIGHT / BEEP SOUND INDICATORS __________________________________________ 6 5. -
Page 3: Introduction

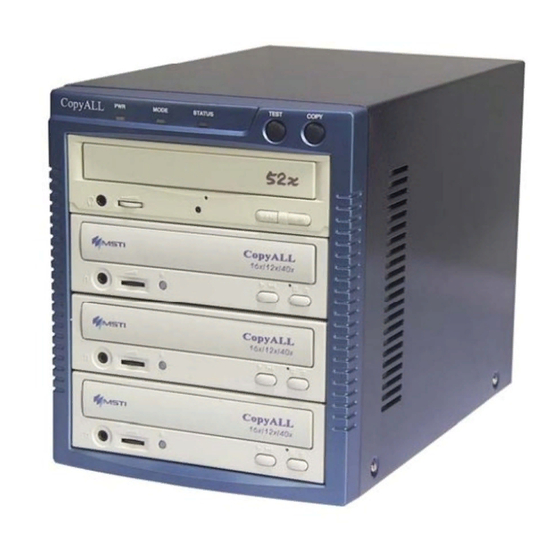

QD-123 is perfect for any user requiring easy copying of audio, video, or Data CDs. Superior technology allows the QD-123 to ship without a hard drive; duplication of CDs is done on the fly. LED indicators provide the user with status of the duplication process, minimizing the number of faulty discs. -
Page 4: Features
3. FEATURES 3.1 COPY MODE (Direct Write) If you are sure that the master CD is intact without any damage, you can make your copies by following these steps: 1. Turn power on. Put the master CD in CD-ROM and up to three blank CD’s into CD-RW drive(s). -
Page 5: Erase (Re-Write) Function
NOTE If the capacity of the original CD exceeds that of the blank CD, the system will give off two beeps, then the “MODE” LED shows fixed red and ”STATUS” LED will flash green simultaneously. When TEST is completed the system will give off three short beeps sound, and the “MODE”... -
Page 6: Led Light / Beep Sound Indicators
4. LED LIGHT / BEEP SOUND INDICATORS Operation Mode POWER Beep sound MODE STATUS NOTE (PWR) Process Status Long beeps X System starting Fixed Green Searching CD- Fixed Green Fixed Red RW drives System starting Do La Do Fixed Green Fixed Green Fixed Green succeeded... - Page 7 Operation POWER Mode Beep sound MODE STATUS NOTE (PWR) Process Status Check Master COPY starting Long beep X 1 Fixed Green Fixed Green Fixed Green disc and blank disc COPY in Fixed Green Fixed Green Flash Green processing COPY Press any key Do Re Mi Fixed Green Flash Green...
-
Page 8: Changing Firmware
16x speed. If you wish to copy CD+G discs, you will need to change modes. Once changed, the QD-123 system will copy your CD+G masters at 8x speed. This firmware will also copy all other formats as well, however the record speed for CD-DA audio masters will be 8x speed.
