GX-1 Disc Publisher
For Mac OS X
Users Manual
Microboards Technology LLC
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MicroBoards Technology GX-1

Summary of Contents for MicroBoards Technology GX-1

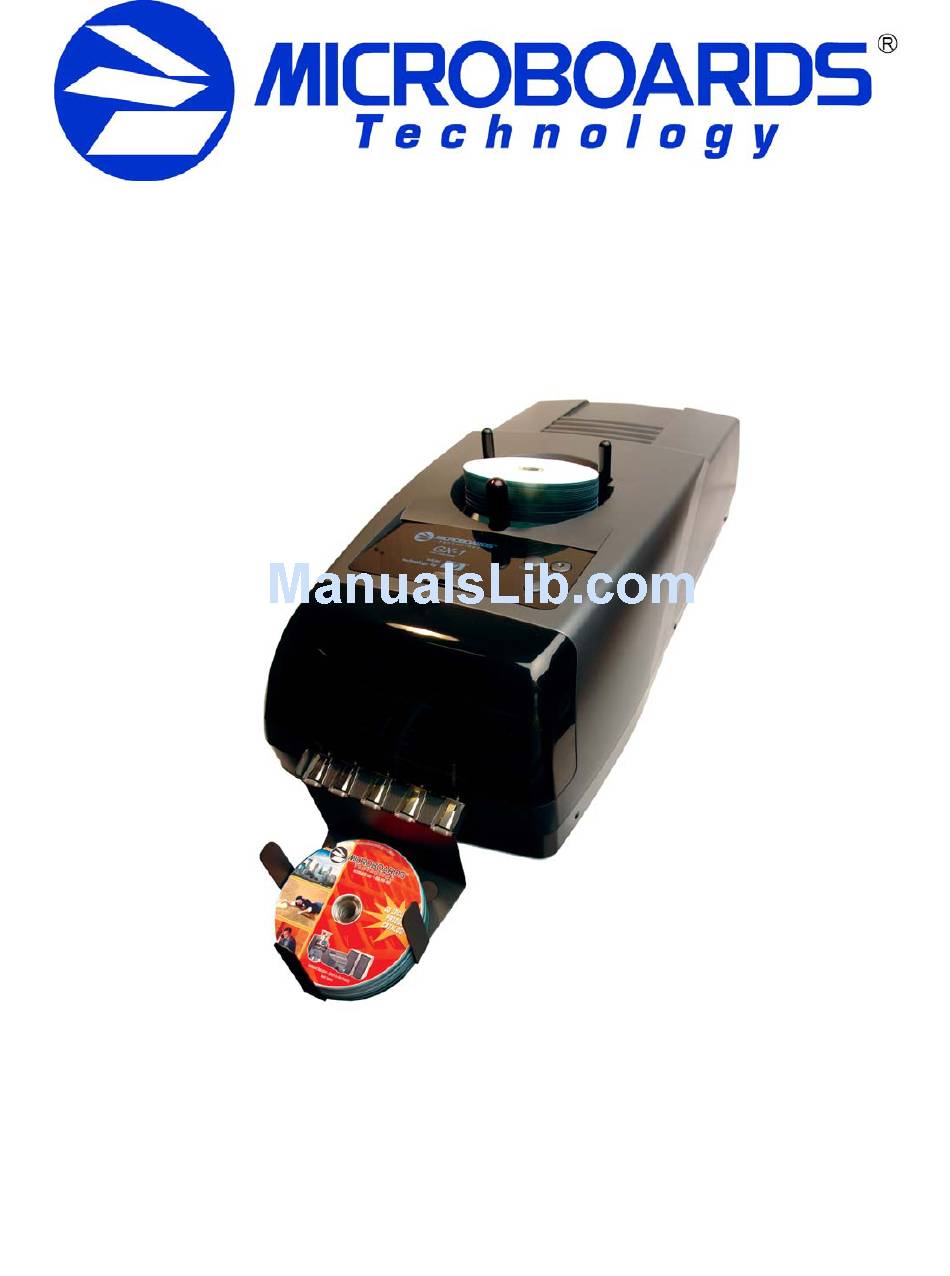

  • Page 1 GX-1 Disc Publisher For Mac OS X Users Manual Microboards Technology LLC Version 1.2...

  • Page 3: Table Of Contents

    ..................................11 EVEL ....................................11 .....................................12 LEAN ...................................12 TILITY ..................................12 UPPORT ..................................12 EGISTER THE GX-1 DISC PUBLISHER AND DISCRIBE ......................13 PRINT ONLY WITHOUT DISCRIBE ..........................13 TROUBLESHOOTING..............................14 ..............................14 RINTER NOT PRINTING ..............................14 OADING ERROR ..............................14 NK INDICATION PRINTING SPECIFICATIONS .............................15 TECHNICAL SUPPORT ..............................15...

  • Page 5: Introduction

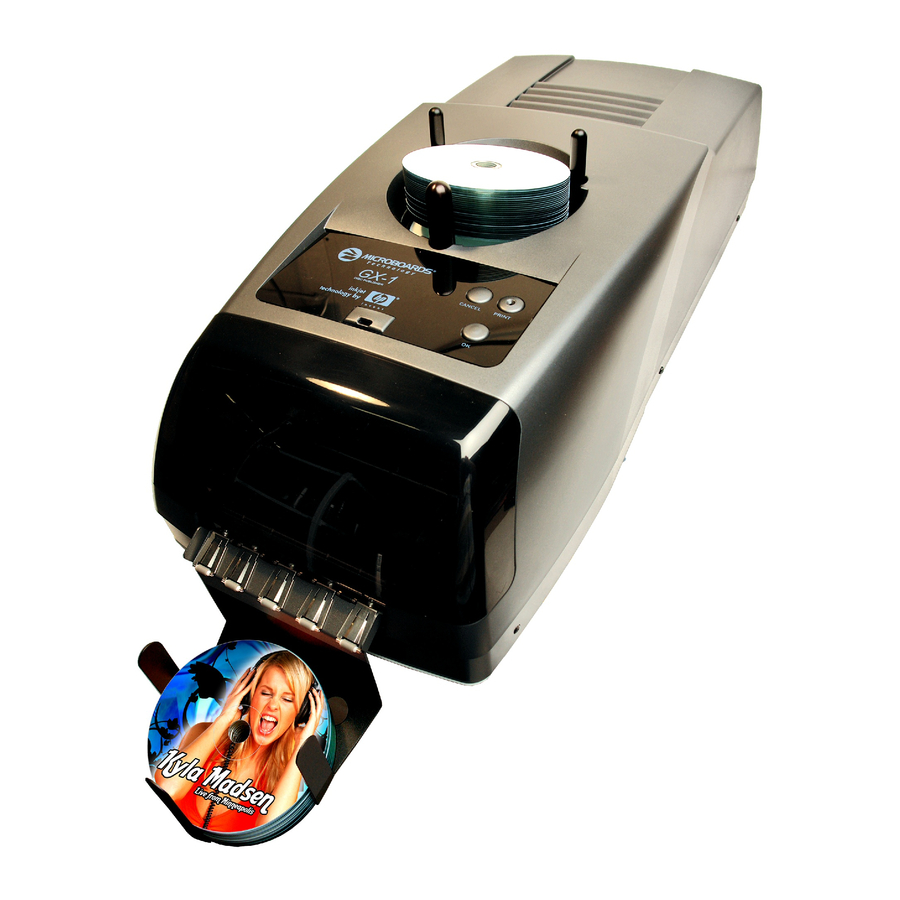

    GX-1 DISC PUBLISHER Introduction The Microboards GX-1 Disc Publisher is a single drive, 50 disc, print and record system. The GX-1 combines industrial strength printing and recording into a single, easy to use duplicator. The system includes one 16x DVD recorder. Microboards and HP co-developed the printer technology, allowing up to 4800 x 1200 dpi printing.

  • Page 6: System Requirements

    The input bin posts are pre-installed, with the wide post to the front. The Reject Bin is pre-installed on the left side of the GX-1 Disc Publisher. This bin, which slides out, should be emptied when you know discs have been rejected.

  • Page 7: Installing Ink Cartridges

    Installing Ink Cartridges Supported Ink Cartridges The GX-1 Disc Publisher uses a single color ink cartridge. The part number for this cartridge is GX- 200HC. If other cartridges are installed, the GX-1 Disc Publisher will not function. These cartridges are available from any Microboards reseller.

  • Page 8: Loading Discs

    DVD 120 mm (12 cm) inkjet printable discs. If the disc does not have an inkjet printable surface, the ink will not adhere to the surface of the disc. The GX-1 Disc Publisher will only accept 12 cm discs. Business card or 8 cm discs are not supported by this system.

  • Page 9: Installation Of Drivers And Software

    2. Install a GX-200HC Ink Cartridge (see page 7). 3. Plug in the AC power cord to the back of the GX-1 Disc Publisher. Do not turn on power to the GX-1 Disc Publisher until an ink cartridge has been installed.

  • Page 10: Printer Alignment

    Alignment The GX-1 Disc Publisher system has been aligned at the factory. The factory alignment values are on a label on the back of the GX-1 Disc Publisher. Follow these steps to enter the factory values: • Click System Preferences in the Dock.

  • Page 11: Microboards Toolbox

    The Ink Levels show how much remains of all 3 colors, Cyan, Magenta and Yellow. NOTE: If you place a used cartridge in the GX-1, the ink level may not be reported correctly. If the GX-1 can identify the cartridge, it may report the correct ink levels; if not, it will assume that the ink cartridge is new and will show ink levels of 100%.

  • Page 12: Clean

    Clicking the Register button will open your default internet browser to the Microboards Product Registration webpage. When registering your GX-1 Disc Publisher, please be sure you are including the correct serial number, which will be on the back of the GX-1 and on the box product label. This function requires an internet connection.

  • Page 13: The Gx-1 Disc Publisher And Discribe

    Discribe is the application used to control the Burn and Print functionality of the Microboards GX-1. It is able to set up publishing jobs, load the GX-1, burn to the loaded disc, unload the disc, and then print the image you have selected.

  • Page 14: Troubleshooting

    Remove any discs that are left on the belt. 2. Lift the cover and check for any discs on the front deck of the GX-1 Disc Publisher. Remove any discs found on the belts. Close the cover.

  • Page 15: Printing Specifications

    Print Quality, Color: up to 4800 x 1200 optimized dpi, with HP PhotoREt Color Technology: HP PhotoREt Memory: 64MB Connectivity: USB 2.0 required Technical Support For technical questions or support issues, please contact Microboards Technology technical support at PH: 952-556-1639, FAX: 952-556-1628, by email at support@microboards.com or on the web at http://www.microboards.com.
