MicroBoards Technology G3 User Manual

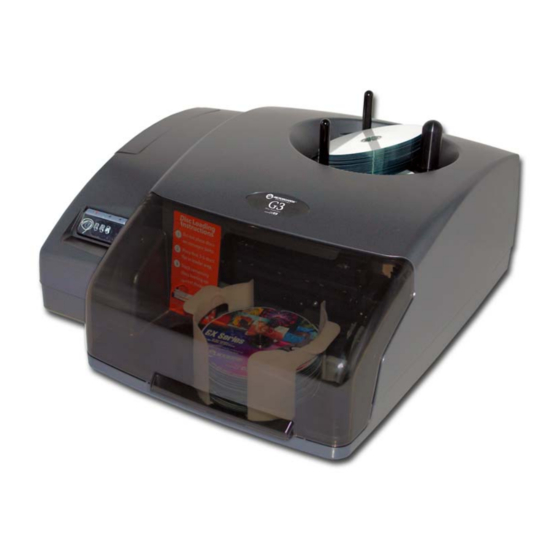

Microboards technology g3 disc publisher for mac os x
Hide thumbs Also See for G3:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
G3 Disc Publisher
For Mac OS X
Users Manual
Microboards Technology LLC
Version 1.1

Advertisement

Table of Contents
loading

Related Manuals for MicroBoards Technology G3

Summary of Contents for MicroBoards Technology G3

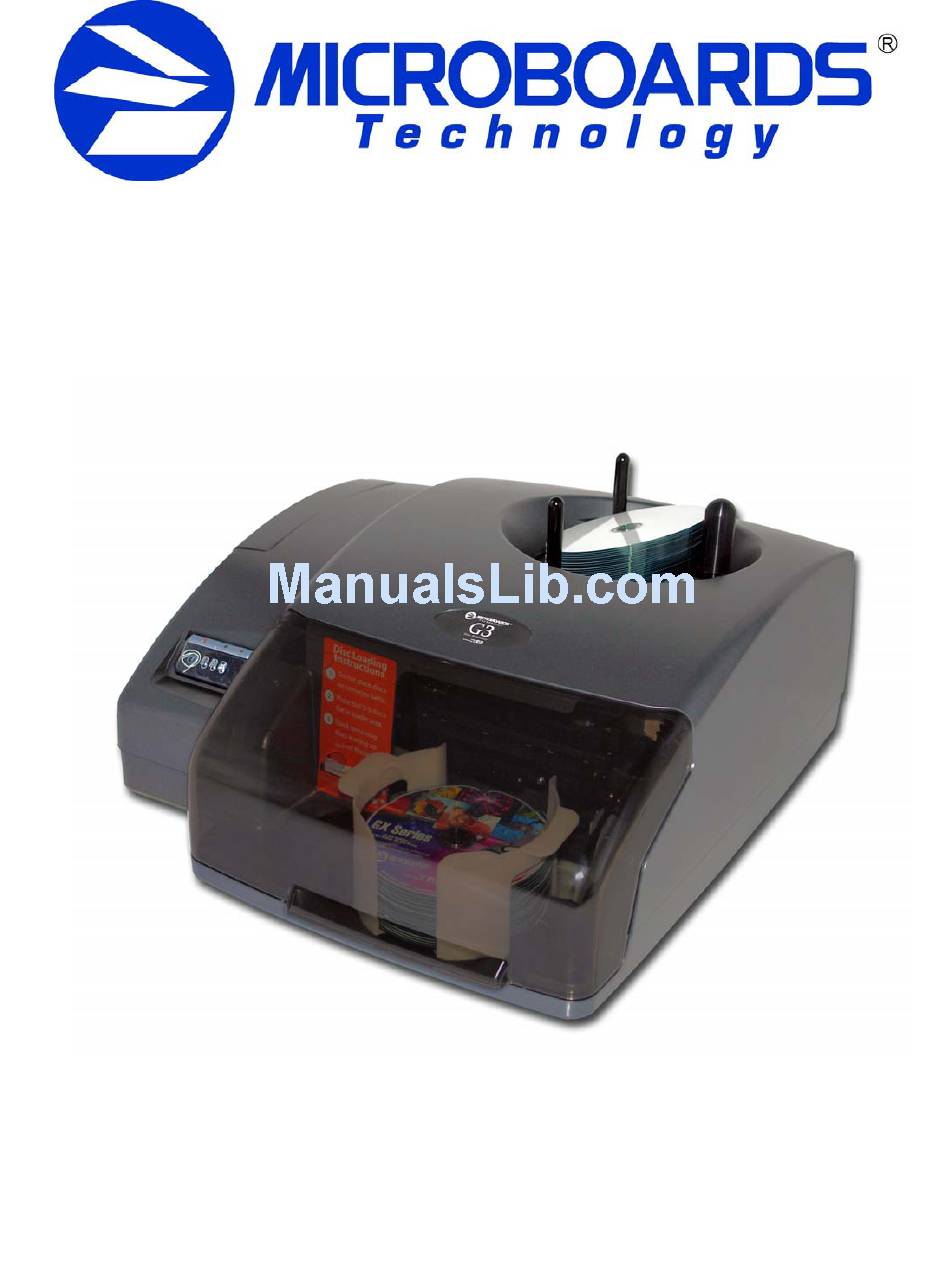

  • Page 1 G3 Disc Publisher For Mac OS X Users Manual Microboards Technology LLC Version 1.1...
  • Page 2 Any unauthorized modification to this equipment may result in the revocation by the FCC of the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Test ..........................11 Clean..........................11 Utility ..................Error! Bookmark not defined. Support..........................12 Register........................... 12 The G3 Disc Publisher and PrintWrite................12 Print Only without PrintWrite ....................13 Troubleshooting ......................... 13 Printer not printing: ......................13 Disc Loading error ......................13 Low Ink indication......................

  • Page 5: Introduction

    G3 DISC PUBLISHER Introduction The Microboards G3 Disc Publisher is a single drive, 50 disc, print and record system. The G3 combines professional quality printing and recording into a single, easy to use duplicator. The system includes one 24x DVD recorder. Microboards and HP co-developed the printer technology, allowing up to 4800 x 1200 dpi printing.

  • Page 6: System Requirements

    System Requirements The Microboards G3 Disc Publisher has the following minimum requirements and compatibilities: Operating System Mac OS 10.5 Processors Intel Processor is required System Memory Minimum 1 GB of system memory Hard Drive A separate internal 7200 RPM hard drive is recommended for storing your data. Using the same hard drive as the operating system can cause the system to perform slowly.

  • Page 7: Installing Ink Cartridges

    Installing Ink Cartridges Supported Ink Cartridges The G3 Disc Publisher uses a single color ink cartridge. The part number for this cartridge is GX- 300HC. If other cartridges are installed, the G3 Disc Publisher will not function. These cartridges are available from any Microboards reseller.

  • Page 8: Loading Discs

    Front Control Panel The AC power switch located on the back of the G3 Disc Publisher must be turned on first in order to supply power to the Front Control Panel.

  • Page 9: Installation Of Drivers And Software

    1. Plug in the AC power cord to the back of the G3 Disc Publisher. 2. Confirm that the power is turned ON to both the G3 Disc Publisher and on your Mac. 3. Connect the square shaped end of the USB cable to the back of the G3 Disc Publisher.

  • Page 10: Printer Alignment

    Printer Alignment Verify the printer alignment the first time you use the Publisher. You may need to align your printer before the printed images will be centered on your media. Changing the brand or type of media you are using may also require small alignment adjustments. Alignment •...

  • Page 11: Test

    Click the Device Information icon to view Model and Firmware Version of your GX Series printer. Test To confirm the computer is communicating with the G3 Disc Publisher, print a Test Disc. This can be done with one of the inkjet printable CD’s included with your G3 Disc Publisher, or an inkjet compatible disc you may already have.

  • Page 12: Support

    Clicking the Registration button will open your default internet browser to the Microboards Product Registration webpage. When registering your G3 Disc Publisher, please be sure you are including the correct serial number, which will be on the back of the G3 and on the box product label. This function requires an internet connection.

  • Page 13: Print Only Without Printwrite

    Remove any discs that are left on the belt. 2. Lift the cover and check for any discs on the front deck of the G3 Disc Publisher. Remove any discs found on the belts. Close the cover.

  • Page 14: Printing Specifications

    For technical questions or support issues, contact Microboards Technology technical support: United States Europe Japan PH: 952-556-1639 PH: +44 (0) 845 230 7800 PH: 03-3561-2266 FAX: 952-556-1628 www.microboards.co.uk www.microboards.co.jp support@microboards.com www.microboards.com Please have the Model and Serial Number of your G3 Disc Publisher available when contacting Technical Support.
