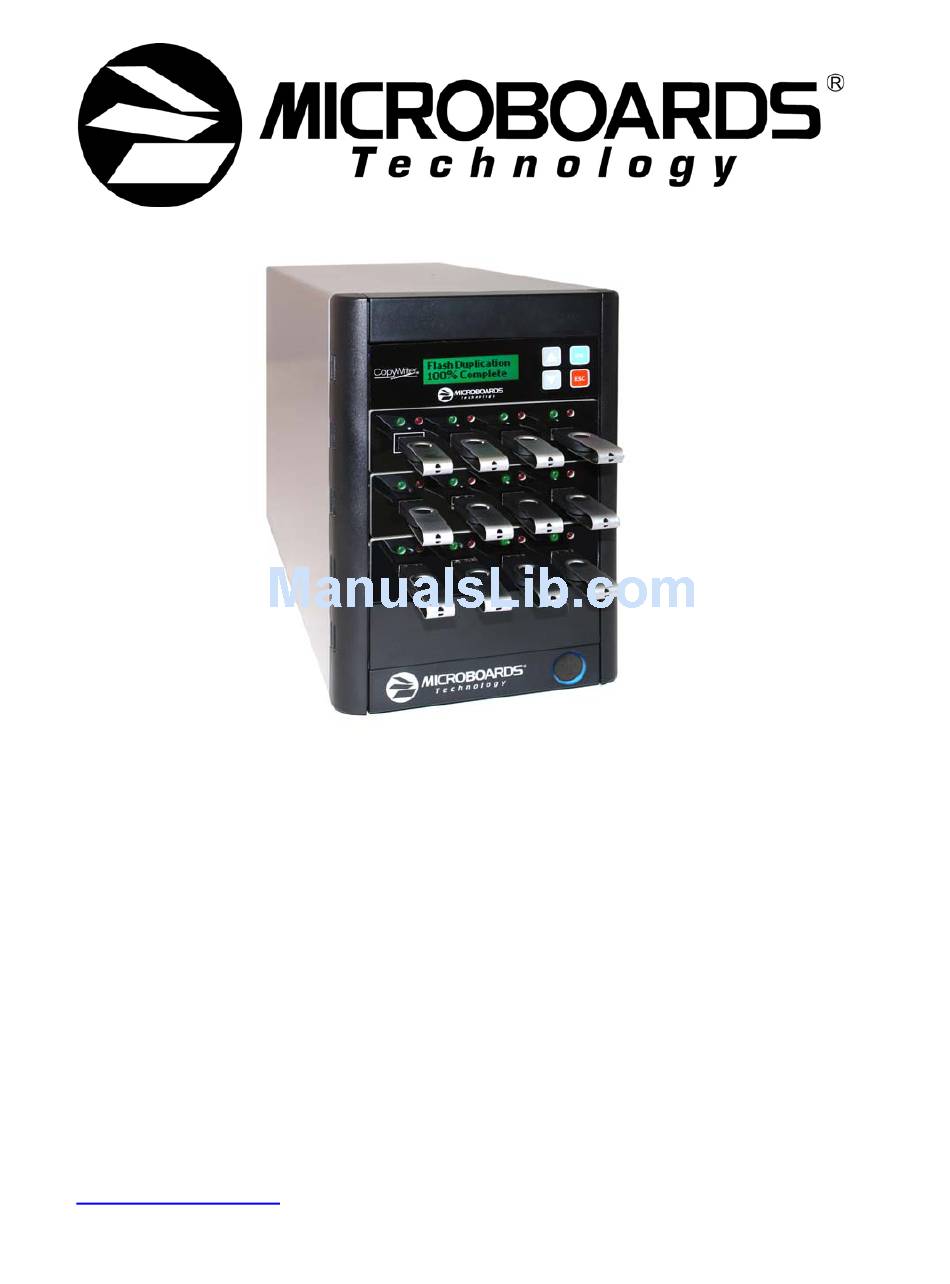

- Page 1 Copywriter Flash Duplicator Series User’s Manual www.microboards.com Version 1.1...
-
Page 3: Table Of Contents
Table of Contents Introduction... 5 What’s Included ... 5 Installation... 5 Loading and Unloading Flash Cards... 5 USB Flash ... 5 Main Menu Flowchart... 7 Main Menu... 8 Copy... 8 Asynchronous Duplication... 8 Asyn Hold Time Setting ... 8 Synchronous Duplication... 9 Compare... -
Page 5: Introduction
Introduction The Copywriter Flash Duplicator allows you to make fast copies of USB flash cards. This series is available in 3, 7, or 11 copy configuration. What’s Included When unpacking your Copywriter Flash Duplicator system, the following items should be included: •... -
Page 6: Hardware Description

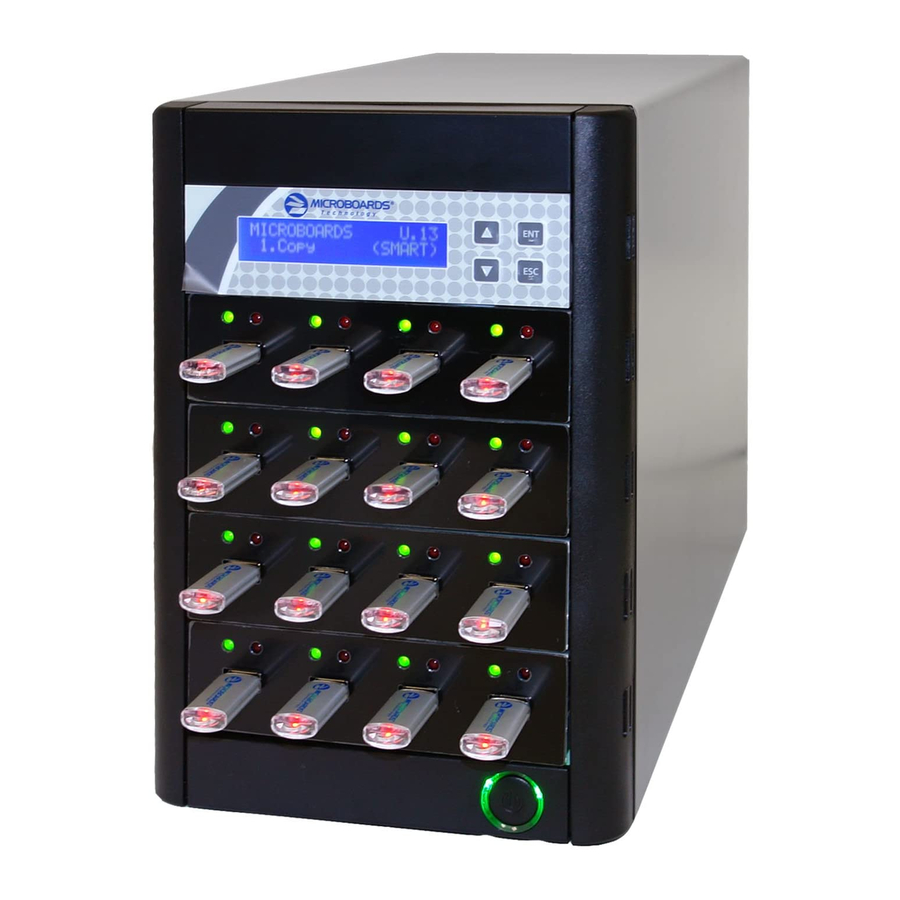

Copywriter USB 11 Flash Duplicator The Copywriter Flash Duplicator consists of a reader port, 3, 7, or 11 flash drive ports and Controller module. The master card will always be inserted into the TOP LEFT port, which is outlined. The blank cards will always be inserted into the remaining ports. -
Page 7: Main Menu Flowchart
Main Menu Flowchart 1. Copy ▼ 2. Compare ▼ 3. Copy & Compare ▼ 4. Information ▼ 5. Utility ▼ 6. Setup SYNCHRONOUS: Copy 3669M Load Next Blank Cards, TOTAL: 11/0 10% 0:53 367M Press OK Pass: 11 Fail: 0 SYNCHRONOUS: Compare 3669M... -
Page 8: Main Menu
Main Menu There are 6 different Main Menu items for the Copywriter Flash Duplicator: Copy, Compare, Copy & Compare, Information, Utility, and Setup. For the Setup options, please refer to page 9. These instructions refer to using 11 USB recorder ports (available only in the USB 11 Flash Duplicator), but the instructions will not differ when using any of the Copywriter Flash Duplicators. -
Page 9: Synchronous Duplication
Synchronous Duplication If the entire source content cannot be stored in the memory buffer, Synchronous duplication will be required. Place your master card into the reader port and your blank cards into the recorder ports. Press the OK button on the controller interface. recorder ports are filled, duplication will begin. -
Page 10: Utility
Utility The Utility function is available for erasing inserted cards and updating the Duplicator firmware. Measure Speed The Measure Speed function can be turned on to measure the exact speed of the flash read and write. Media Check This function checks the media quality, and can be set to 3 different levels: Normal 100%, Strict 100%, and Setup Range. -
Page 11: Setup Menu
Startup Menu The Startup Menu selection allows you to select the main menu item that appears when the Copywriter Flash Duplicator starts up. The default setting is 1. Copy. Main Menu items 1 through 6 can be selected. Copy Area... -
Page 12: Troubleshooting And Frequently Asked Questions
Troubleshooting and Frequently Asked Questions Is there any limitation for copy file format? You can use "Only Data Area" to copy FAT16/32, NTFS, Linux (ext3) format, it will only copy the data, and therefore the copy speed will be quicker. If you want to copy other formats, it can use "Whole Area"... -
Page 13: Specifications
United States PH: 952-556-1639 FAX: 952-556-1628 support@microboards.com www.microboards.com Please have the Model and Serial Number of your Copywriter Flash Duplicator available when contacting Technical Support. Appendix 1: List of Functions 1 Copy 2 Compare 3 Copy & Compare 4 Information 4.1 Card Information...
