Hitachi KP-FD500GV Specifications

Gigabit ethernet progressive scan ccd color camera
Hide thumbs

Advertisement

Quick Links

1
A
1. General

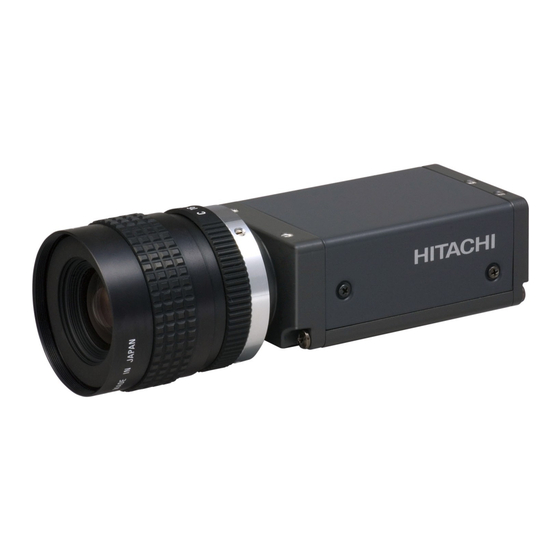

The KP-FD500GV is single CCD type RGB color camera which utilized the progressive scan CCD
image sensor with square pixel for SXGA format of 2/3-inch which adopted the RGB primal color
mosaic filter. By adoption of Gigabit Ethernet interface, high-speed connection of maximum of 1
B
Gbps can be possible. Moreover, by using hub or switcher, construction of multiple camera system
can be easily performed.
2. Outstanding features
(1) High resolution and color fidelity
The 2/3-inch 5,010,000 pixels square lattice progressive scan CCD and the RGB primary color
mosaic filter achieve a high resolution and high color fidelity of 2448(H) x 2050(V).
(2) Gigabit Ethernet interface
High-speed serial interface Gigabit Ethernet is supported and direct connection is possible to
C
PC by the diameter cable of thin as compared with parallel output. It is possible to 100m.
(3) GigE Vision (Ver. 1.00) correspondence
Based on Industrial camera interface standard GigE Vision, a maximum of 1Gbps high speed
data transmit is available and suitable for image processing.
(4) GENiCAM (Ver. 1.00) correspondence
Development of camera control system is easy because industrial camera control API
"GENiCAM" lead EMVA (European Machine Vision Association).
(5) PoE correspondence
D
Power supply can be input via Ethernet cable (Power over Ethernet).
(6) Remote control
- Multi-step electronic shutter (from 1/8 to 1/50000 second in 8 steps)
- Variable shutter (from 10 to 1/100000 second)
- The image capture at desired timing using the external trigger signal
- White balance (ATW, Manual and One-push)
- 6 color independent masking (R, G, B, Cy, Mg, Ye can be independently varied)
and other various functions are set by remote control via a Gigabit Ethernet cable.
E
-
May.31,2008
SYMBOL
DATE
KP-FD500GV
MODEL
DESIGNED
DATE
F
CHECKED
DATE
1
2
Gigabit Ethernet
Progressive scan CCD color camera
KP-FD500GV
Specifications (Preliminary) Ver.1.00
TOLERANCE
APPROVED
DATE
UNIT
STORED
DATE
SCALE
2
3
(first edition)
DESCRIPTION
Prod. Code - Order No.
KP-FD500GV
TITLE
Specifications
DWG.
No.
3
4
(DRAWN)
DESIGNED
REV.
0 0
SHEET
1
9
4
D F 0 2 2 - 4 P E - T 1
A
B
C
D
E
F

Advertisement

loading

  Also See for Hitachi KP-FD500GV

  Related Manuals for Hitachi KP-FD500GV

  Summary of Contents for Hitachi KP-FD500GV

  • Page 1 Specifications (Preliminary) Ver.1.00 1. General The KP-FD500GV is single CCD type RGB color camera which utilized the progressive scan CCD image sensor with square pixel for SXGA format of 2/3-inch which adopted the RGB primal color mosaic filter. By adoption of Gigabit Ethernet interface, high-speed connection of maximum of 1 Gbps can be possible.
  • Page 2: Specifications

    3. Specifications (1) Imaging device 2/3-inch progressive scan interline CCD Total pixels 2536 (H) x 2068 (V) Effective pixels 2456 (H) x 2058 (V) Pixel size 3.45 um (H) x 3.45 um (V) (square lattice) Color filter RGB primary color mosaic filter (2) Scanning area 8.45 mm (H) x 7.07 mm (V) (3) Scanning system...
  • Page 3 (14) External sync signal VD output 5Vp-p +/- 0.3V Strobe out 5Vp-p +/- 0.3V Output polarity High / Low adjustable Strobe delay Adjustable Strobe duration Adjustable (15) Partial scan Selectable start position and width of picture grabbing in 2H step. (16) ALC (Auto level control) Adjustable for video level (17) White balance ATW / MANUAL / One-push...
  • Page 4: Optional Accessories

    4. Composition (1) Camera (with IR cut filter) (2) CD-ROM (Operation manual, Control software and SDK) (3) Composition table 5. Optional accessories (1) Dummy glass (AR coated) ARC1214 (2) IR cut filter IRC650 (3) Junction box JU-F30, (4) Tripod adaptor TA-M1 (5) 12pin plug HR10A-10P-12S(01)
  • Page 5 6. Specification of Digital output connector (1) Gigabit Ethernet connector PIN NO. Signal LED1 LED2 TRP1+ TPR1- TRP2+ TPR3+ TRP3- TRP2- TRP4+ TRP4- Connector: RJ-45 *LED Status STATUS LED1(Green) LED2 (Yellow) Power ON Light Off Light On Transmission Blink On Light On Transmission pause Light Off...
  • Page 6 8. Output sequence when format is RAW Pixel ・・・ 2447 2448 ・ ・ ・ 2049 2050 Line 9. Spectral response IR cut filter Wave Length (nm) SHEET DWG. D F 0 2 2 - 4 P E - S 1...
  • Page 7: External View

    10. External view 13 L E U N A M R I O V E C R E P A L A U N A M   E E S SER.NO. RATED PLATE U1 25 26 (φ27.4) 26 29 14.5 SHEET DWG.
  • Page 8 (4) Compensation for loss of business, loss or damage to software, database and other contingent losses are beyond the scope of this Warranty. (5) Hitachi Kokusai Electric Inc. is not liable for the losses caused when the equipment is used in a system, use for business trades, production process, medical fields, crime prevention applications, etc.
  • Page 9: Modification History

    Modification history SIMBLE DATE CORRECTION AND REASONS DESIGNED SHEET DWG. D F 0 2 2 - 4 P E - S 1...
