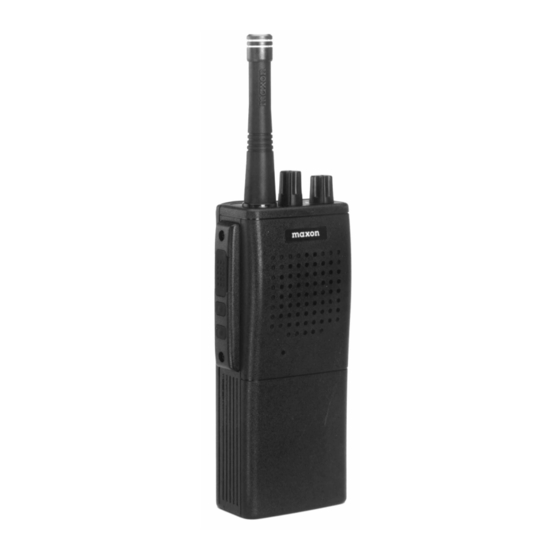

Maxon SP-130 Series Operating Instructions Manual

Maxon SP-130 Series Operating Instructions Manual

Synthesized scanning radio

Advertisement

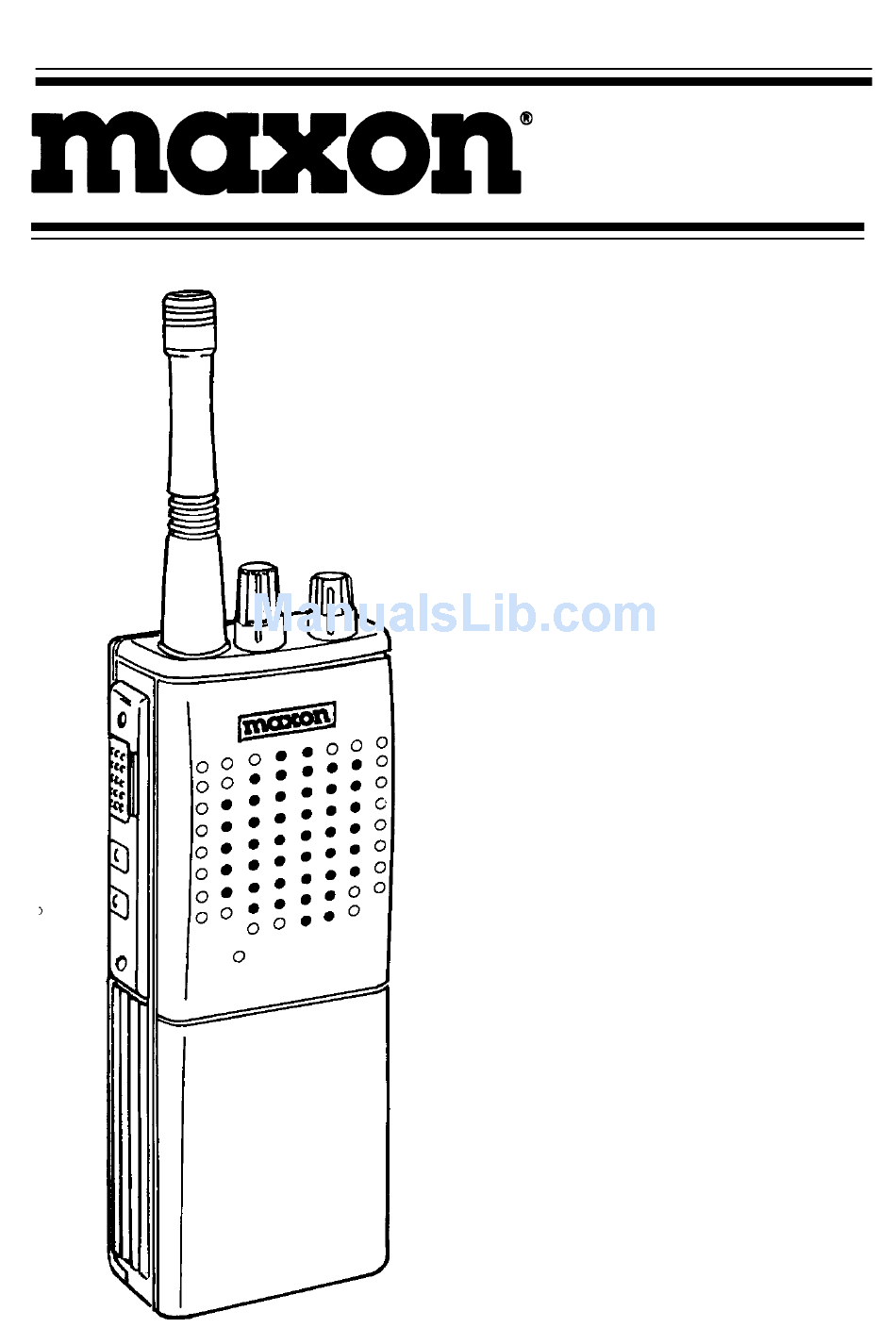

SP -130/140 Series
Synthesized Scanning Radio
Operating
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-130 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maxon SP-130 Series

  • Page 1 SP -130/140 Series Synthesized Scanning Radio Operating Instructions...
  • Page 2 We urge you to thoroughly read this manual before operating the radio. Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs.
  • Page 3: Table Of Contents

    Table of Contents Safety Information..............Unpacking Information............SP-130/140 Series Features............ Description of Radio Components......... Antenna Installation............... Installing and Removing the Battery Pack ....... Attaching and Removing the Belt Clip........Battery Charging and Care............. SP-130/140 Series Operation..........Power On-Volume..........Transmit..............Receive..............Power Off..............
  • Page 4: Safety Information

    General Docket 79-144, March 13, 1985, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act and Federal Communications Commission limits.
  • Page 5: Unpacking Information

    Unpacking Information Remove and carefully inspect the contents of your package(s) for the following items: Radio Battery Pack Antenna Spring Belt Clip Operating Instructions If any items are missing, please contact your Dealer or Maxon.
  • Page 6: Sp-130/140 Series Features

    SP-130/140 Series Features • Wideband frequency separation • 1/5 Watts programmable output power • Programmable 12.5/25 kHz channel spacing • Channel scan • Priority channel scan • Look back channel • CTCSS/DCS tone signalling • Busy channel lockout • Time-out timer...
  • Page 7: Description Of Radio Components

    Description of Radio Components 1) Antenna Receptacle 2) Channel Selector Knob 3) On/Off - Volume Control 4) Busy/TX/BT Indicator 5) Battery Latch 6) Push-To-Talk (PTT) 7) Monitor Button 8) Option Button 9) Speaker 10) Microphone 11) Accessory Connector 12) Belt Clip 13) Battery 14) Battery Charge Contacts...
  • Page 9: Antenna Installation

    Antenna Installation Fasten the antenna to the radio by turning the antenna clockwise into the receptacle on top of the radio. Installing and Removing the Battery Pack To Install: Position the guides of the battery in line with the radio battery guide rails and slide the battery into position until a click is heard.
  • Page 10: Battery Charging And Care

    Battery Charging and Care To ensure peak performance from your radio, the battery pack must be fully charged. Proper care and charging will allow maximum performance and life of your battery pack. The optional QPA-1135 Pedestal Charger provides a slow overnight charge of 12-16 hours.
  • Page 11: Sp-130/140 Series Operation

    SP-130/140 Series Operations Power On-Volume Turn the radio on by rotating the on /off - volume control clockwise until you hear a click and the self test "alert" tone. Transmit CAUTION OPERATION OF THE TRANSMITTER WITHOUT A PROPER ANTENNA INSTALLED MAY RESULT IN PERMANENT DAMAGE TO THE RADIO 1) Press the monitor button to monitor the channel for activity.
  • Page 12: Power Off

    • Low battery condition • Selecting a channel with no programmed frequency * Indicates a function that is initially programmed into the radio by your Maxon Dealer. NOTE: All audible tones can be programmed off for silent operation. STATUS DESCRIPTION...
  • Page 13: Scan Modes

    Scan Modes Scanning is a Dealer programmable feature that allows you to monitor a number of channels. Your Dealer will help you define a channel "scan list" to be programmed into a scan channel (any channel, 1- 4 on model SP-130) or (any channel, 1-16 on model SP-140). Once that channel location is selected, scan is initiated.
  • Page 14: Other Scanning Features

    Other Scanning Features • Look Back: Any channel, when not in the scan mode, can be programmed to "look back" at the "Priority" channel. This feature is ideal for those who do not need scan as defined above, but want to make sure that they never miss a call on the "Priority"...
  • Page 15: Licensing And Service Information

    Do not tamper with internal adjustments. Damage to the equipment and/or improper operation may result. There are no user serviceable items inside the radio. It is recommended that you return your radio to a qualified Maxon Dealer for any service or repairs. Recycling/Disposal of Batteries The U.S.
  • Page 16: Software Copyrights

    Maxon software programs stored in semi- conductor memories or other media. Laws in the United States and other countries preserve for Maxon certain exclusive rights for copy- righted software programs, including the exclusive right to copy or reproduce in any form the copyrighted software program.
  • Page 17: Maintenance

    Maintenance Your SP-130/140 Series Radio is designed to be maintenance free. To keep your radio in good working condition: Clean external surfaces with a clean cloth dampened in a solution of dishwasher detergent diluted in water. Apply the solution sparingly to avoid any moisture leaking into cracks and crevices.
  • Page 18: Warranty Statement

    Maxon is not responsible for any ancillary equipment which is attached or used in connection with this product. Maxon shall have no obligation to make repairs or to cause replace- ment required which result from normal wear and tear or necessitated...
  • Page 19 Maxon America, Inc. Business Radio Division 10828 NW Air World Drive Kansas City, Missouri 64153 816/891-6320, Ext. 399, FAX: 816/891-8815 Printed in Korea U.S. P/N: 680-090-2002...

This manual is also suitable for:

Sp-140 series
