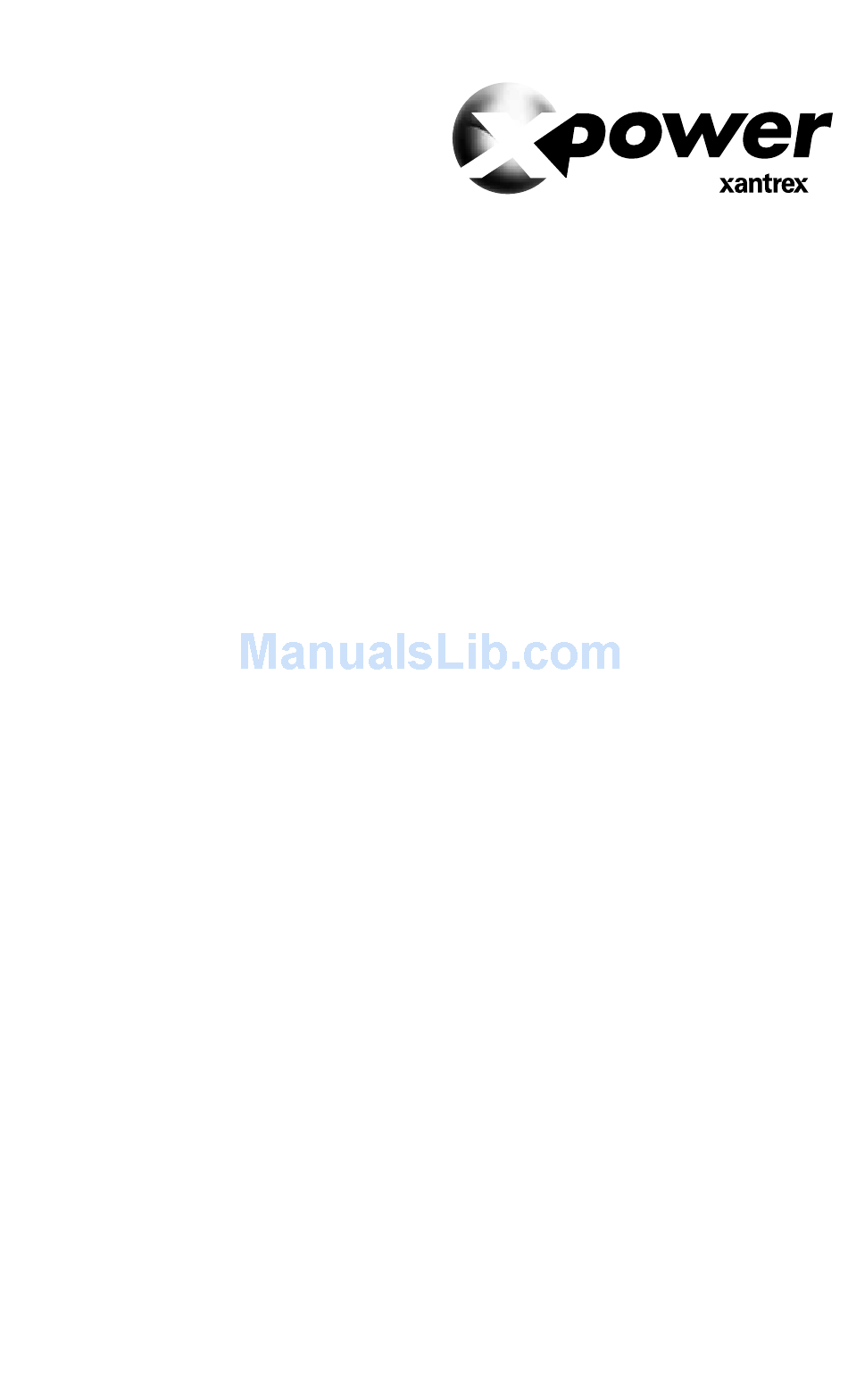

by

XPower Powerpack

300
Owner's Guide

Advertisement

Table of Contents
loading

Related Manuals for Xantrex XPower Powerpack 300

Summary of Contents for Xantrex XPower Powerpack 300

  • Page 1: Xpower Powerpack

    XPower Powerpack Owner’s Guide...
  • Page 2 Trademarks XPower Powerpack 300 is a trademark of Xantrex International. Xantrex is a registered trademark of Xantrex International. Other trademarks, registered trademarks, and product names are the property of their respective owners and are used herein for identification purposes only.
  • Page 3 Organization This guide is organized into five chapters and an appendix: Chapter 1, “Introduction”, provides an overview of the main features of the XPower Powerpack 300. Chapter 2, “Features”, provides a detailed description of the features of the XPower Powerpack.
  • Page 4 About This Guide Conventions Used The following conventions are used in this guide. WARNING Warnings identify conditions that could result in personal injury or loss of life. CAUTION Cautions identify conditions or practices that could result in damage to the unit or to other equipment. Important: These notes describe an important action item or an item that you must pay attention to.

  • Page 5: Important Safety Instructions

    AC power outlet, the DC power outlet, or the ventilation holes. Do not expose this product to water, rain, snow, or spray. Do not open the XPower Powerpack 300. There are no user- serviceable parts inside the unit. CAUTION The unit will be damaged if connected to any AC load that has its neutral conductor connected to ground.
  • Page 6 Do not use this product in an enclosure containing automotive-type lead-acid batteries. These batteries, unlike the sealed AGM battery in the XPower Powerpack 300, vent explosive hydrogen gas which can be ignited by sparks from electrical connections.
  • Page 7 Important Safety Information WARNING: Fire hazard The jump-start feature is designed for short term operation only— less than 4 seconds. Operating the jump-start feature for more than 4 seconds may cause damage to the unit. Allow the XPower Powerpack 300 to cool down for at least 3 minutes after each jump- start.
  • Page 8 Important Safety Information Precautions When Working With Your Vehicle Battery WARNING: Risk of Explosion, Fire or Burns 1. Follow all instructions published by the battery manufacturer and the manufacturer of the equipment in which the battery is installed. 2. Make sure the area around the battery is well ventilated. 3.
  • Page 9 Important Safety Information 10. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters your eyes, immediately flood them with running cold water for at least twenty minutes and get medical attention immediately. 11. Keep a supply of baking soda on hand in the area of the batteries.
  • Page 10 Important Safety Information Precautions for Using Rechargeable Appliances CAUTION The output of the XPower Powerpack 300 inverter is a non- sinusoidal modified sine wave, which is different from pure sine wave utility-supplied electricity. Certain types of load equipment may be damaged.

  • Page 11: Table Of Contents

    1 Introduction About the XPower Powerpack 300 - - - - - - - - - - - - - - - - - - - - - 1 Comprehensive Protection - - - - - - - - - - - - - - - - - - - - - - - - - - - 1...
  • Page 12 Using the Air Compressor - - - - - - - - - - - - - - - - - - - - - - - - - - 22 Over-temperature Safety Protection - - - - - - - - - - - - - - - - - 22 Inflating Tires - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23 Inflating Small Sports Equipment - - - - - - - - - - - - - - - - - - 24 Connecting to an External Battery- - - - - - - - - - - - - - - - - - - - - 25...

  • Page 13: Introduction

    Introduction About the XPower Powerpack 300 Easy-to-use and designed for years of reliable service, the XPower Powerpack can run many AC appliances and 12 V DC appliances whenever you need power for work or play, at home or on the road.

  • Page 14: Low Battery Protection

    Comprehensive Protection Low Battery Protection Low battery protection protects the internal battery from excessive discharge and possible damage. The unit automatically turns off when the internal battery is discharged to 10.5 Vdc.

  • Page 15: Features

    Features Chapter 2 describes the main features of the XPower Powerpack 300. We recommend that you familiarize yourself with these features before operating the unit. Materials List Your XPower Powerpack package includes these items: ❐ XPower Powerpack ❐ Owner’s Guide ❐...

  • Page 16: Xpower Powerpack Features

    XPower Powerpack Features XPower Powerpack Features Front Panel Detail Feature Description DC power outlet: • Powers 12 V DC auto, RV or marine appliances • Recharges XPower Powerpack from a 12 V outlet in a vehicle using the DC charging cable. Battery Level LEDs illuminate to indicate the XPower Powerpack battery charge level.
  • Page 17 XPower Powerpack Features Feature Description Battery Status LED illuminates when the XPower Powerpack is charging (when an AC charger is connected to the XPower Powerpack’s AC charger input socket and plugged into the household 120 V AC outlet). Red Incorrect Jumpstart Connection LED illuminates and an alarm sounds when the jump-starting clamps are improperly connected to the vehicle battery.

  • Page 18: Left Side View

    XPower Powerpack Features Left Side View Feature Description Pressure gauge shows the PSI (lb/in Jump-starting clamp Jump-start power switch AC charger input socket Compressor switch Nozzle packet compartment Not shown Valve connector with connector hose...

  • Page 19: Accessories

    XPower Powerpack Features Accessories Accessory Description AC charger lets you recharge the XPower Powerpack from a standard AC wall outlet and can only be used to recharge the internal battery of the XPower Powerpack. DC charging cable lets you recharge the XPower Powerpack from a 12 V system in a car, SUV, RV or a boat.

  • Page 21: Operation

    Operation Chapter 3 explains how to operate the XPower Powerpack 300 efficiently. This chapter covers: • Recharging the XPower Powerpack for first-time use • Using the flashlight • Operating AC appliances and 12 V DC appliances • Jump-starting a vehicle’s engine •...

  • Page 22: Choosing A Location

    • Motor loads with high startup power surge requirements: Sump pumps, circular saws, larger power tools, refrigerators. Visit www.xantrex.com for higher power solutions. Choosing a Location WARNING: Fire or explosion The XPower Powerpack contains components that tend to produce arcs or sparks. To prevent fire or explosion, do not operate the...

  • Page 23: Using Xpower Powerpack For The First Time

    Using XPower Powerpack for the First Time Using XPower Powerpack for the First Time Important: Prior to operating your AC appliance or 12 V DC appliance, ensure that the battery of the XPower Powerpack is fully charged. If the battery has been fully discharged, recharging with the AC charger may take up to 24 hours.
  • Page 24 Recharging with the AC Charger Important: The 24-hour charging time for the XPower Powerpack assumes that there is 120 V AC at the AC wall outlet. If the voltage is less than 120 V AC, it may take more than 24 hours to fully recharge the XPower Powerpack.

  • Page 25: Using The Flashlight

    Using the Flashlight Using the Flashlight The XPower Powerpack has a detachable flashlight that operates for up to 6 hours before needing to be recharged. To detach the flashlight, push the rim of the flashlight lens straight back, then swing the light away from the unit. To replace the flashlight, insert the flashlight base first, aligning the arrow on the flashlight base with the arrow on the Powerpack, then click the front of the flashlight into place...
  • Page 26 Using the Flashlight The flashlight is made up of four small LEDs, rather than one large LED. When the flashlight needs recharging, it will conserve power and maximize the illumination by shutting off one LED at a time, rather than dimming all the LEDs. The flashlight recharges whenever the XPower Powerpack is charging with the AC charger or DC charging cable.

  • Page 27: Operating Ac Appliances

    Operating AC Appliances Operating AC Appliances Understanding AC Appliances AC appliances are rated by how much electrical power (in watts) they consume. XPower Powerpack can power most appliances within its continuous power rating (240 W, 2 A). Some appliances may be difficult or impossible to operate from the XPower Powerpack.

  • Page 28: High Surge Appliances

    Operating AC Appliances High Surge Appliances The wattage rating of AC appliances is the average power used by the appliance. Appliances such as televisions and appliances with motors consume much more power than their average rating when they are first switched on. Although the XPower Powerpack can supply momentary surge power up to 480 W, some appliances may exceed the capabilities of the XPower Powerpack and trigger the safety...

  • Page 29: Operating Several Appliances At Once

    Operating AC Appliances Operating Several Appliances at Once You can run several AC appliances if the total rating of all the appliances (in watts) does not exceed 240 W. Run time, however, will decrease accordingly with the number of appliances being operated and the AC power being consumed.

  • Page 30: Operating 12 V Dc Appliances

    Operating 12 V DC Appliances Operating 12 V DC Appliances The XPower Powerpack can operate 12 V DC auto, RV, marine, or other portable appliances that draw 12 A or less from a 12 V DC power outlet or from a vehicle’s lighter socket.

  • Page 31: Jump-Starting A Vehicle's Engine

    Jump-Starting a Vehicle’s Engine To operate a 12 V DC appliance: 1. Open the protective cover on the DC power outlet of the XPower Powerpack. 2. Plug the 12 V DC appliance into the DC power outlet on the left side of the unit, and turn the 12 V DC appliance on (if required).
  • Page 32 Jump-Starting a Vehicle’s Engine WARNING: Fire hazard Jump-start cable clamps’ connection to the vehicle’s battery terminals must be positive to positive (red clamp to battery “+”) and negative to engine block. A reverse polarity connection (positive to negative) may cause damage to the unit and/or create a sparking/explosion hazard.
  • Page 33 Jump-Starting a Vehicle’s Engine If no alarm sounds, and the Green Jumpstart Connection LED is illuminated, then proceed to the next step. 7. Switch the jump-starting power switch. Before starting the engine, make sure the XPower Powerpack and the cables are clear of belts and fans. 8.

  • Page 34: Using The Air Compressor

    It is recommended that you follow the warnings and turn the compressor off for 10 minutes after every 10 minutes of operation. However, the XPower Powerpack 300 is equipped with an over-temperature safety protection feature that automatically turns the compressor off if it begins to overheat.

  • Page 35: Inflating Tires

    This may damage the XPower Powerpack 300. Remove and reattach the valve connector to the valve stem. To inflate your vehicle, motorcycle, or bicycle tires: 1.

  • Page 36: Inflating Small Sports Equipment

    You can use the compressor to inflate small sports equipment such as soccer balls and footballs. CAUTION The XPower Powerpack 300 cannot be used to inflate large capacity inflatables such as float tubes, large air mattresses, and inflatable boats. These types of products require extended inflating times that may damage the compressor.

  • Page 37: Connecting To An External Battery

    Connecting to an External Battery 6. Remove nozzle adaptor from valve connector and store in storage compartment. Note Leave the thumb latch in the open position for storing to relieve pressure on the internal mechanism. Connecting to an External Battery You can extend battery operating times by connecting the XPower Powerpack to a larger external battery.
  • Page 38 Connecting to an External Battery To connect the XPower Powerpack to an external battery using the jump-start cables: 1. Ensure that the jump-start power switch is 2. Connect the red positive (+) clamp of the cables to the red positive (+) terminal of the external battery. 3.

  • Page 39: Maintenance

    Maintenance Chapter 4 provides information on maintaining your internal battery, recharging options for the internal battery, and replacing user-replaceable parts. Routine maintenance is required to keep your XPower Powerpack 300 operating properly. Occasionally clean the exterior of the unit with a damp cloth to remove the accumulated dust and dirt.

  • Page 40: Recharging The Xpower Powerpack Battery

    Recharging the XPower Powerpack Battery CAUTION Due to inherent self-discharge, lead acid batteries must be charged at least every 3 months, especially in a warm environment. Leaving a battery in a discharged state, or not recharging every 3 months, may result in permanent battery damage and poor jump-starting performance.
  • Page 41 Recharging the XPower Powerpack Battery CAUTION Do not operate AC or DC appliances with the XPower Powerpack while the XPower Powerpack is being recharged with the AC charger. The AC charger may be permanently damaged if AC appliances or 12 V DC appliances are operated while the AC charger is connected.

  • Page 42: Recharging With The Dc Charging Cable

    Recharging the XPower Powerpack Battery Recharging with the DC Charging Cable Using the DC charging cable, the XPower Powerpack can be recharged while you drive your vehicle. Important: Although the charge regulation circuitry in the XPower Powerpack does not operate with this charging method, most vehicle voltage regulators will ensure that the XPower Powerpack is not overcharged.
  • Page 43 Recharging the XPower Powerpack Battery Note The Battery Level LEDs are only accurate when the XPower Powerpack has been disconnected from all appliances and all charging sources for 15 minutes. Important: • • Do not leave the XPower Powerpack permanently connected to the vehicle’s lighter socket or 12 V accessory outlet.

  • Page 44: Recharging With A Generator's Regulated 12 V Dc Outlet

    Recharging the XPower Powerpack Battery Recharging with a Generator’s Regulated 12 V DC Outlet WARNING: Fire and explosion hazard The generator output must be intended for battery charging and have an output of 15 V or less. An unregulated output or one that exceeds 15 V DC can damage the battery.

  • Page 45: Recharging From A Solar Panel

    Recharging the XPower Powerpack Battery Recharging from a Solar Panel Small, unregulated 12 V solar panels rated to produce a maximum of 2.5 A (or 30 W) can be used to charge the XPower Powerpack through the AC charger Input socket. You will need to purchase a standard 5.5 mm OD ×...

  • Page 46: Recycling

    Recycling Recycling The XPower Powerpack is designed to provide years of service. However, when the internal battery reaches the end of its service life, the XPower Powerpack itself is no longer of use. The internal battery is not designed to be user replaceable.

  • Page 47: Troubleshooting

    Troubleshooting Troubleshooting will help you identify the common problems than can occur with the XPower Powerpack 300. If you cannot solve the problem with the XPower Powerpack, record the information asked for on “Information About Your System” on page 48 and then contact your dealer.

  • Page 48: Troubleshooting Reference

    Troubleshooting Reference Troubleshooting Reference WARNING: Electric shock hazard Do not remove the cover of the XPower Powerpack or disassemble the XPower Powerpack. The XPower Powerpack does not contain any internal user-serviceable parts and attempting to service the unit yourself could result in electrical shock or burn. Table 5-1 Troubleshooting reference Problem Possible Cause...
  • Page 49 Troubleshooting Reference Table 5-1 Troubleshooting reference Problem Possible Cause Solution Overload Appliance power Unplug the appliance and shutdown requirements exceed the confirm that the appliance’s capability of the XPower power requirement is 300 W or Powerpack. less before attempting to restart the appliance.
  • Page 50 Troubleshooting Reference Table 5-1 Troubleshooting reference Problem Possible Cause Solution Measured AC Using an average-reading The modified sine wave output output voltage AC voltmeter to read of the XPower Powerpack is too low. output voltage. requires a true RMS reading meter, such as the Fluke 87 series, for accurate measurement.
  • Page 51 Troubleshooting Reference Table 5-1 Troubleshooting reference Problem Possible Cause Solution The engine XPower Powerpack Recharge the XPower being jump- battery is not fully Powerpack battery. started will not charged. start. The engine condition is Have the engine serviced. poor. The engine start capacity Use a higher power XPower exceeds the XPower Powerpack.
  • Page 52 Table 5-1 Troubleshooting reference Problem Possible Cause Solution An LED in the Flashlight is reaching the Plug the XPower Powerpack into flashlight is end of internal battery an AC or DC power source and not lit. power. place the flashlight back in the flashlight compartment for recharging.

  • Page 53: Electrical Specifications

    Specifications Electrical Specifications 12 V DC Section Internal battery type Sealed/non-spillable, AGM (Absorbed Glass Mat) lead- acid Internal battery voltage (nominal) 12 V DC Internal battery capacity (minimum) 12 Ah Internal battery CCA rating 120 CCA Internal battery CA rating 180 CA DC power outlet (maximum continuous load) 12 A with automatic reset...
  • Page 54 Electrical Specifications AC Power Section Output power • Continuous output power 240 W • Peak output power 300 W • AC output surge capacity 480 W Output voltage 120 ± 10 V AC RMS Output frequency 60 Hz ± 1 Hz Output wave form modified sinewave No load current draw...

  • Page 55: Physical Specifications

    Physical Specifications Air Compressor Pressure 250 PSI (lb/in Accessories DC charge cable 39" (1 m) 18 AWG with male to male lighter plugs (part # 449-0187-01-01) AC charger Input: 120 V AC, 60 Hz, 11 W Output: 13.5 V DC, 500 mA (part # 074-1003) Flashlight Part # 808-7130...

  • Page 57: Warranty And Return

    Technology Inc. ("Xantrex") and covers defects in workmanship and materials in your XPower Powerpack 300. This warranty period lasts for 6 months from the date of purchase at the point of sale to you, the original end user customer. You require proof of purchase to make warranty claims.
  • Page 58 Xantrex product specifications including high input volt- age from generators and lightning strikes; c) the product if repairs have been done to it other than by Xantrex or its authorized ser- vice centers (hereafter "ASCs");...
  • Page 59 Warning: Limitations On Use Please note that the XPower Powerpack 300 is not intended for use as an uninterruptible power supply and Xantrex makes no warranty or representation in connection with any use of the product for such purposes.

  • Page 60: Out Of Warranty Service

    Warranty and Return Out of Warranty Service If the warranty period for your XPower Powerpack 300 has expired, if the unit was damaged by misuse or incorrect installation, if other conditions of the warranty have not been met, or if no dated proof of purchase is available, your unit may be serviced or replaced for a flat fee.
