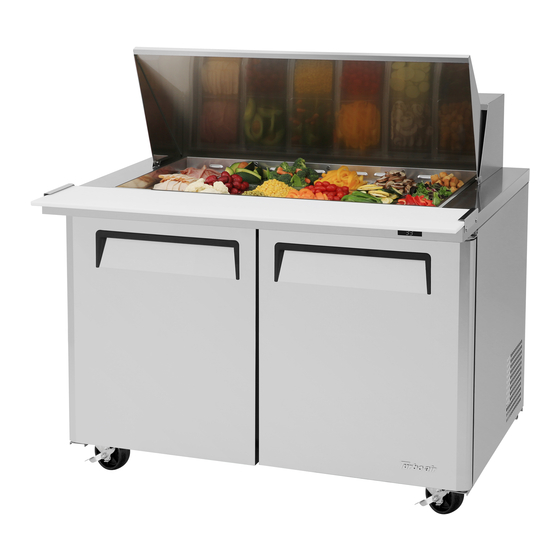

Page 1 Turbo air Speeds Up the Pace of Innovation Sandwich Salad Unit Undercounter Refrigerator, Freezer Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! TST-28SD, 48SD, 72SD TUR-28SD, 48SD, 72SD / TUF-28SD, 48SD...
Page 2: Table Of Contents
7. CLEANING & CAUTION ................6 8. BASIC OPERATION ..................7 9. BEFORE REQUESTING SERVICE ............. 8 10. WARRANTY ..................9~11 SPECIFICATION Sandwich Salad Unit MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT TST-48SD 115V/60Hz R-134a 5.0A 180lbs TST-28SD 115V/60Hz R-134a 5.5A 128lbs TST-72SD 115V/60Hz R-134a 10.8A...
Page 3: Installation Of Handle
4. INSTALLATION OF CASTOR AND CASTOR BRAKE 1) Screw the castor (in rear side) and the castor brakes (in front side) by using castor wrench. 2) Use the castor shims to level the cabinet, if necessary, by inserting them to stems of the castors. Turbo air...
Page 4: How To Clean The Pan Supporter
5. HOW TO CLEAN THE PAN SUPPORTER Guide Pan Drain Pan MODEL: TST-28SD TST-48SD TST-72SD 1) Remove the Guide Pans and Pans. Then pull out the Pan Supporter. Clean the pan supporter and reinstall in place. Turbo air...
Page 5: Installation
- Be sure that there is ample air space so that air can flow through the rear of the unit. - Turbo Air recommends that the rear of the unit be no less than 5 inches from the wall. 2. PLACE ON STRONG GROUND - Be sure the location chosen has a strong enough floor to support the total weight of the cabinet and any other contents.
Page 6: Cleaning & Caution
- Turn ‘off’ the power switch before disconnecting the power cord, whenever performing maintenance functions or cleaning the refrigerated cabinet. - Compressor warranties are void if compressor burns out due to low voltage. 2. RE-STARTING - If disconnected, wait 5 minutes before re-starting. Turbo air...
Page 7: Basic Operation
BASIC OPERATION TST-28SD, TST-48SD, TST-72SD TUR-28SD, TUR-48SD, TUR-72SD TUF-28SD, TUF-48SD 1. The controller(thermostat) is located at the top inside of the unit. 2. The factory setting for the control is ‘Normal’. 3. Setting toward “Cool” for higher temperature and “Cold” for lower temperature.
Page 8: Before Requesting Service
• The door gasket has come out. The following points are not malfunctions: • A water-flowing sound can be heard when the compressor stops. This is the sound of REFRIGERANT flowing. • The compressor does not run during the defrost cycle. Turbo air...
Page 9: Warranty
Turbo Air and upon proper installation and start-up in accordance with the instruction packet supplied with each Turbo Air unit. Turbo Air’s obligation under this warranty is limited to a period of one (1) year from the date of original installation or 15 months after shipment date from Turbo Air, whichever occurs first.
Page 10 ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. Turbo Air is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of God.
Page 11 1250 Victoria street CARSON, CA 90746 TEL: (562) 981-0123 FAX: (562) 981-0124 Toll Free: 1-800-627-0032 (U.S.A. In Canada) http://www.turboairinc.com Turbo air...
