Turbo Air Speed up the Pace of Innovation

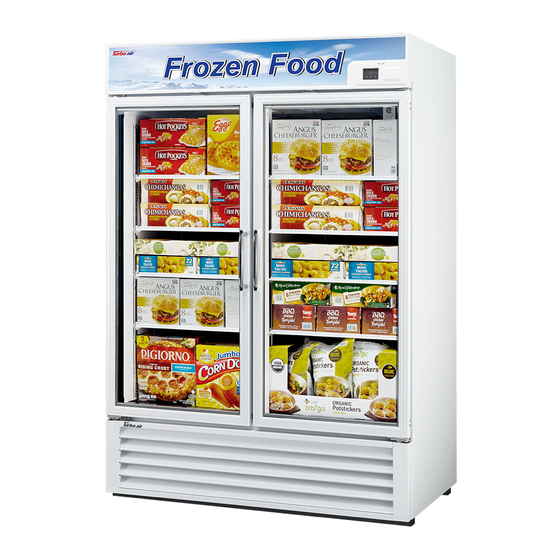

Glass Door Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
FREEZER
TGF-23F
TGF-49F
TGF-72F
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
Advertisement
Related Manuals for Turbo Air TGF-49F
Summary of Contents for Turbo Air TGF-49F
- Page 1 CAUTION! PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THIS EQUIPMENT Turbo Air Speed up the Pace of Innovation Glass Door Freezer Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! FREEZER TGF-23F...
-
Page 2: Table Of Contents
MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT TGF-23F 115V/60Hz R-404A 8.2A 376 lbs TGF-49F 1-1/2 115V / (208-220)V / 60Hz R-404A 587 lbs TGF-72F 1-1/4X2 115V / (208-220)V / 60Hz R-404A 848 lbs SERIAL NUMBER The serial number can be found on the data label located inside the unit. -
Page 3: Installation
- Be sure that there is ample air space so that air can flow through the rear of the unit. - Turbo Air recommends that the rear of the unit be no less than 5 inches from the wall. 2. PLACE ON STRONG GROUND - Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. -
Page 4: Cleaning
- Turn ʻoffʼ the power switch before disconnecting the power cord, whenever performing maintenance functions or cleaning the refrigerated cabinet. - Dual voltage freezer (TGF-49F, TGF-72F) requires receptacle as shown the right sides. - Compressor warranties are void if compressor burns out due to low voltage. -
Page 5: Basic Operation
After turning on the power, the fluorescent lamp will come on in a few minutes. 2. The default temperature setting is No. “-8˚F” for the TGF-23F. The default temperature setting is No. “-8˚F” for the TGF-49F. The default temperature setting is No. “-8˚F” for the TGF-72F. - Page 6 DISPLAY PANEL OF FREEZER (TGF-23F) TEMP CONTROL BUTTON (SEE PAGE 8) LAMP SWITCH INTERIOR TEMP INDICATOR (SEE PAGE 9) POWER SWITCH TEMPERATURE Turbo air T.F. DOOR TURBO FREEZE TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 8)
- Page 7 DISPLAY PANEL OF FREEZER (TGF-49F, TGF-72F) TEMP CONTROL BUTTON (SEE PAGE 8) LAMP SWITCH INTERIOR TEMP INDICATOR (SEE PAGE 9) POWER SWITCH LAMP POWER TEMPERATURE T.F. DOOR TURBO FREEZE TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 8)
- Page 8 TURBO FREEZE 1. If you push the T.F. (Turbo Freeze) button, the compressor will run for 120 minutes to bring down the temperature more quickly. 2. If you push the T.F. button again during Turbo Freeze mode, the compressor will return to the normal operation.
- Page 9 INNER TEMPERATURE DISPLAY 1. It displays inside temperature. 2. Display range is -50˚F to 50˚F (-45˚C ~ +10˚C). 3. When inside temperature is lower than -50˚F, the panel will display ʻ ʼ. and, higher than +50˚F, the panel will show ʻ ʼ.
-
Page 10: Before Requesting Service
BEFORE REQUESTING SERVICE SYMPTOMS CAUSES SOLUTIONS Freezer is melting • The setting temperature is too • Push the temperature down food. high to contain food fresh. button for lower temperatures. The unit does not • There is a power connection •... - Page 11 TWO YEAR WARRANTY Turbo air warrants to the original purchaser of every new Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of two (2) year from the date of original installation or 27 months after shipment date from Turbo air , whichever occurs first.
- Page 12 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
-
Page 13: Warranty
(2) year from the date of original installation or 27 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within two (2) year of original installation or twenty seven (27) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
