Horizontal Bottle Cooler
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
TBC-24SD, 24SB / TBC-36SD, 36SB / TBC-50SD, 50SB /
TBC-65SD, 65SB / TBC-80SD, 80SB / TBC-95SD, 95SB
SD series: Stainless Steel Exterior
SB series: Black Laminated Vinyl Exterior or Black Powder Coating Exterior

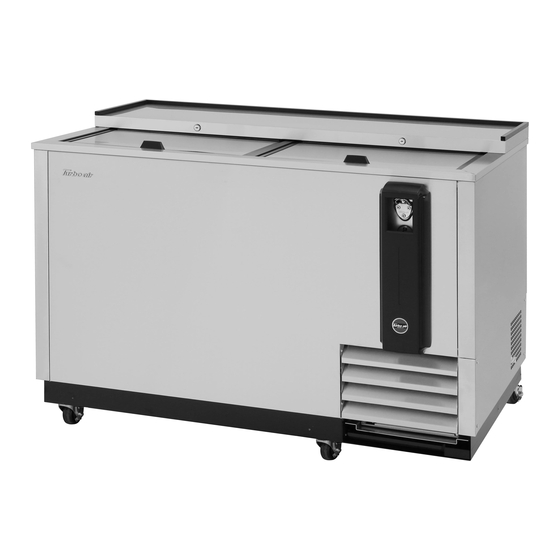

(This picture shows TBC-50SD in the SD series.)
Advertisement
Table of Contents
Related Manuals for Turbo Air TBC-24SD
Summary of Contents for Turbo Air TBC-24SD
- Page 1 Turbo air Speeds Up the Pace of Innovation Horizontal Bottle Cooler Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! TBC-24SD, 24SB / TBC-36SD, 36SB / TBC-50SD, 50SB / TBC-65SD, 65SB / TBC-80SD, 80SB / TBC-95SD, 95SB...
-
Page 2: Table Of Contents
110-120V/60Hz R-134a 8.0A 364 lbs TBC-95SD/SB 110-120V/60Hz R-134a 9.2A 375 lbs SERIAL NUMBER The serial number is located on the rating label which is on interior right side wall. Please retain the unit’s serial number for service purpose. Turbo air... -
Page 3: Installation Of The Bottom Shelves
INSTALLATION OF THE BOTTOM SHELVES 1) Before adding cans or bottles to cooler, please install bottom shelves. 2) Then install dividers. (see page 4) * Note: The size and quantities of the bottom shelves can be different according to model number. Turbo air... -
Page 4: Installation Of The Dividers
5) Push divider back wards. 6) Insert front of divider in the holes, point ‘A’ and ‘B’, where you would like it. ‘A’ ‘C’ ‘B’ * Note : The shape and quantities of the dividers can be different according to model number. Turbo air... -
Page 5: Installation Of The Opener Kit
2) On the front outside wall of bottle cooler, there are screws. 3) Hook the opener kit onto the screws, like drawing 1. 4) Push down so head of screw will insert into smaller opening, like drawing 2. 5) To detach it, follow above list in the reverse order. Turbo air... -
Page 6: How To Use The Bottle Opener
2. Grip the bottle tightly so it will not fall on removing cap. 3. The cap will drop to bottom of opener case. 4. When opener case is full, separate from cabinet. 5. Turn opener case over to empty. Turbo air... -
Page 7: Installation
1. GOOD AIR CIRCULATION - Do not place any object that will restrict air flow in front or back grills. - Turbo air highly recommends that there is ample space in rear of unit. 3 inches or more is best. -
Page 8: Cleaning & Caution
- Compressor warranties are void if compressor burns out due to low voltage. 2. RE-STARTING - If disconnected, wait 5 minutes before re-starting. 3. POSITIONING DRINKS - Do not obstruct the air inlet which is located at the back inside of the unit. Turbo air... -
Page 9: Basic Operation
3. Set toward “1” for warmer temperature and “7” for colder temperature. Temperature Controller (Thermostat) 4. The thermostat controls compressor’s cycling by sensing inside temperature. 5. When unit will not be used for a long time, turn the power switch off located under the thermostat knob. Turbo air... -
Page 10: Before Requesting Service
The following points are not malfunctions: • A water-flowing sound can be heard when the compressor stops. This is the sound of REFRIGERANT flowing. • The compressor does not run during the defrost cycle. Turbo air... -
Page 11: Warranty
Turbo Air and upon proper installation and start-up in accordance with the instruction packet supplied with each Turbo Air unit. Turbo Air’s obligation under this warranty is limited to a period of one (1) year from the date of original installation or 15 months after shipment date from Turbo Air, whichever occurs first. - Page 12 ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. Turbo Air is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of God.
- Page 13 1250 Victoria street Carson, CA 90746 U.S.A & Canada Toll Free 800-627-0032 For Service 800-381-7770 TEL: 310-900-1000 FAX: 310-900-1077 http://www.turboairinc.com...
