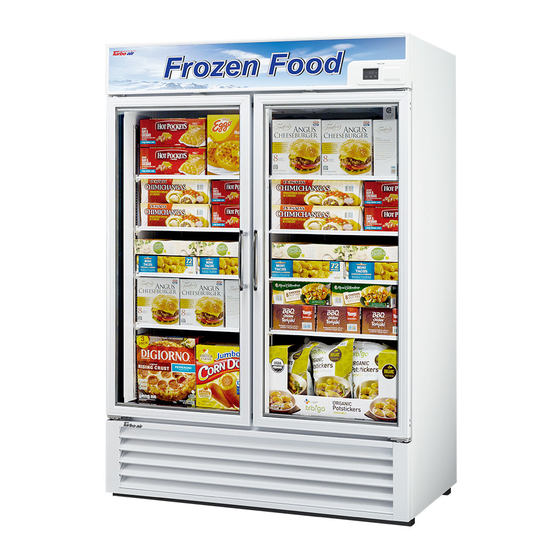

Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
SIGN PANEL
FRONT VIEW
CAUTION!
BEFORE OPERATING FREEZER
PLEASE KEEP POWER SWITCH ON
AFTER TURNING ON THE POWER, THE FLUORESCENT
LAMP WILL COME ON IN A FEW MINUTES.
SIGN PANEL
DOOR
ASSEMBLY
FRONT VIEW
SIGN PANEL
FRONT VIEW
EVAPORATOR FAN
EVAPORATOR
MOTOR BLADE
FAN MOTOR
FLUORESCENT
LAMP
DOOR
ASSEMBLY
SHELF
DOOR
HANDLE
BOTTOM
POWER SWITCH
GRILLE
LAMP SWITCH
CASTER
CONDENSER
(WITH BRAKE)
COIL
CONDENSER
FAN MOTOR
SIDE VIEW
EVAPORATOR FAN
EVAPORATOR
MOTOR BLADE
FAN MOTOR
DOOR
ASSEMBLY
SHELF
DOOR
HANDLE
BOTTOM
GRILLE
CASTER
CONDENSER
COMPRESSOR
(WITH BRAKE)
COIL
CONDENSER
FAN MOTOR
SIDE VIEW
EVAPORATOR
COIL
Model No. :
TGF-23F
BACK
SPACER
TGF-49F
TGF-72F
CASTER
COMPRESSOR
EVAPORATOR
COIL
BACK
SPACER
CASTER
Advertisement
Related Manuals for Turbo Air TGF-23F
Summary of Contents for Turbo Air TGF-23F
- Page 1 CAUTION! BEFORE OPERATING FREEZER PLEASE KEEP POWER SWITCH ON AFTER TURNING ON THE POWER, THE FLUORESCENT LAMP WILL COME ON IN A FEW MINUTES. Freezer Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! EVAPORATOR FAN EVAPORATOR EVAPORATOR...
-
Page 2: Table Of Contents
115V / (208-220)V / 60Hz R-404A 595 lbs TGF-72F 1.5X2 115V / (208-220)V / 60Hz R-404A 900 lbs SERIAL NUMBER The serial number is located on the rating label inside. Please retain the unit’s serial number for service purpose. Turbo air... -
Page 3: Installation
- Be sure that there is ample air space so that air can flow through the rear of the unit. - Turbo Air recommends that the rear of the unit be no less than 5 inches from the wall. 2. PLACE ON STRONG GROUND - Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. -
Page 4: Cleaning
- Dual voltage freezer (TGF-49F, TGF-72F) requires receptacle as shown the right sides. - Compressor warranties are void if compressor burns out due to low voltage. 2. RE-STARTING - If disconnected, wait for 5 minutes before re-starting. Turbo air... -
Page 5: Basic Operation
6. Evaporator fan motor will run after all doors are completely closed. 7. Good Air Flow in freezer is critical. Be careful to load product so that it neither presses against the back wall, nor reaches within four inches from the evaporator compartment. Turbo air... - Page 6 DISPLAY PANEL OF FREEZER (TGF-23F) TEMP CONTROL BUTTON (SEE PAGE 8) LAMP SWITCH INTERIOR TEMP INDICATOR (SEE PAGE 9) POWER SWITCH TEMPERATURE Turbo air LAMP POWER T.F. DOOR TURBO FREEZE TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 8)
- Page 7 DISPLAY PANEL OF FREEZER (TGF-49F, TGF-72F) TEMP CONTROL BUTTON (SEE PAGE 8) LAMP SWITCH INTERIOR TEMP INDICATOR (SEE PAGE 9) POWER SWITCH LAMP POWER TEMPERATURE T.F. DOOR TURBO FREEZE TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 8) Turbo air...
- Page 8 3. Once all frost is eliminated, the temperature continues to rise until it reaches 60˚F (15˚C). When this temperature is sensed by the defrost limit control, the defrost control changes to refrigeration mode. 4. The panel displays “ ” during the defrost cycle. Turbo air...
- Page 9 2. 30 seconds after any door opened, warning beep sound will be ring three (3) times. 3. 1 minute opened, warning beep sound will be ring again five (5) times. 4. 5 minutes opened, the beep sound will be ring continuously. 5. Once the door is closed, the beep sound will stop immediately. Turbo air...
-
Page 10: Before Requesting Service
• The door gasket has come out. The following points are not malfunctions: • A water-flowing sound can be heard when the compressor stops. This is the sound of REFRIGERANT flowing. • The compressor does not run against defrosting function. Turbo air... - Page 11 MANUFACTURING COMPANY ONE YEAR WARRANTY Turbo air warrants to the original purchaser of every new-Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of one (1) year from the date of original installation or 15 months after shipment date from Turbo air , whichever occurs first.
- Page 12 WHAT IS NOT COVERED BY THIS WARRANTY Turbo air’s obligation under warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than expressly covered by this warranty.
-
Page 13: Warranty
(1) year from the date of original installation or 15 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within one (1) year of original installation or fifteen (15) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
