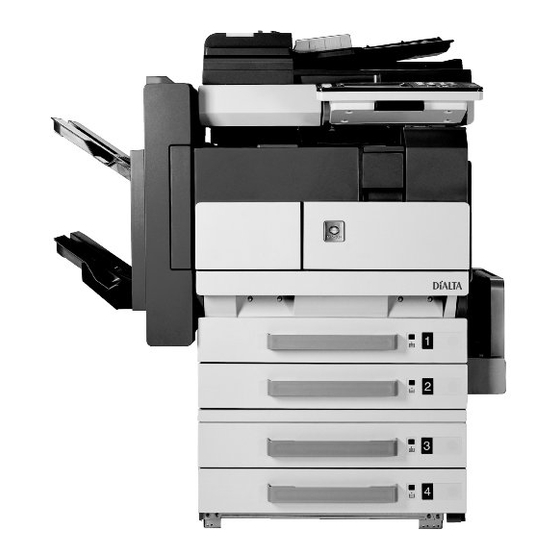

Minolta Di2010f User Manual
  1. Manuals
  2. Brands
  3. Minolta Manuals
  4. All in One Printer
  5. Di2010f
  6. User manual

Minolta Di2010f User Manual

Basic operations
Hide thumbs Also See for Di2010f:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

User Manual

[ Basic Operations ]

Di2010f/Di2510f/Di3010f/Di3510f
2
Introduction
Available Features
Before Making Copies
Basic Copy Operations
Copy Paper
Original Documents
Specifying Copy Settings
Touch Panel Messages
Troubleshooting

Advertisement

Table of Contents
loading

Related Manuals for Minolta Di2010f

Summary of Contents for Minolta Di2010f

  • Page 1: User Manual

    User Manual [ Basic Operations ] Di2010f/Di2510f/Di3010f/Di3510f Introduction Available Features Before Making Copies Basic Copy Operations Copy Paper Original Documents Specifying Copy Settings Touch Panel Messages Troubleshooting...

  • Page 2: Table Of Contents

    To turn on the machine ..............3-10 When the machine is turned on ............3-11 To turn off the machine ..............3-11 Adjusting the Angle of the Control Panel .........3-13 Using the Touch Panel ...............3-14 To use the memory recall feature ..........3-22 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 3 To load a document of mixed sizes (“Mixed Orig Detection” function)............ 6-6 Positioning Documents on the Original Glass ......6-8 To position sheet documents............6-8 To position transparent or translucent documents ......6-9 To position books or magazines........... 6-10 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 4 To clear a paper misfeed in the mailbin (MK-1) ......8-24 To clear a paper misfeed in the saddle kit ........8-26 When the Message “Cannot Staple.” Appears......8-28 When the Message “Empty punch scraps.” Appears .....8-33 To empty the punch box..............8-33 Troubleshooting Main Messages and Their Remedies...........9-2 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 5 When Incorrect Copies Are Printed ..........9-3 When the Machine Is Not Operating Correctly ......9-6 The Fax Does not Work Properly ..........9-7 Replacing the Completion Stamp ..........9-10 Replacing the Storage (Transmission) Stamp......9-10 10 Index 10.1 Index .................... 10-2 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 6: Introduction

    Appendix Index Fax Operations Read the User Manual: Fax Operations for the following items. Before Using Basic Transmission Basic Reception Using as a Telephone Verification of Results Transmitting Various Faxes Receiving Various Faxes Using the Document Functions Appendix Index Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 7 Contents Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 8: Introduction

    Introduction...

  • Page 9: Introduction

    Here we will describe the precautions prior to use, the operation of the applica- tion functions, the functions used by administrators (utilities, administrator mode), troubleshooting, specifications, etc. User Manual: Fax Operations Here we will explain the operation of the fax functions. Read “Fax Operations” when using the fax function. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 10: Explanation Of Manual Conventions

    Text formatted in this style provides additional assistance. ➜ Text formatted in this style describes the action that will ensure the desired results are achieved. [Copy] key The names of keys on the control panel are written as shown above. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 11: Explanation Of Basic Concepts And Symbols

    (X), the paper has a vertical or portrait orientation, indicat- ed by either “L” or Crosswise If the width (Y) of the paper is longer than the length (X), the paper has a horizontal or landscape orientation, in- dicated by either “C” or Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 12 With the “landscape” orientation, the paper is horizontal, like a land- scape. Display Icons Plain paper Thick paper Overhead projector transparencies Envelope Paper Supply Icons The icons shown below are displayed to indicate the amount of paper that remains. The paper is empty. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 13: Components And Their Functions

    Referred to as the “paper feed cabinet” throughout the manual. Job Separator JS-203 Allows printed pages to be separated (optional) Pull the lever when taking out the paper. *In order to use the job separator, the switchback unit must be installed. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 14 *This option can only be used with computer printouts. Referred to as the “mail bin kit” throughout the manual. Punch Kit PK-6 If this option is attached to the finisher, hole-punching is (optional)* possible. Referred to as the “punch kit” throughout the manual. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 15 Allows e-mails to be sent and this machine to be used as a (optional)* printer * The internal options are not shown. How to use the job separator (JS-203)? Allows printed pages to be separated Pull the lever when taking out the paper. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 16: Part Names And Their Functions

    Prevents printed pages from falling out of the paper output tray Used when the optional sorter is installed Touch panel Liquid crystal display in the control panel Used to specify various copy and fax settings and program or change functions Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 17 Control panel • Used to start scanning and printing operations. • Used when starting fax transmission or when starting fax reception following a telephone conversation. Document scales Used to align the document * The internal options are not shown. 1-10 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 18 Used for connecting to a standard telephone line. (LINE PORT1) Telephone line jack for line 2 Used for connecting to a standard telephone line. (LINE PORT2) In order to use LINE PORT2, the optional multi port must be installed. Di2010f/Di2510f/Di3010f/Di3510f 1-11...
  • Page 19 Prevents the documents from falling out of the document output tray. Paper Feed Unit Part Name Description Lower-right door release Used to open the lower-right door lever 3rd paper drawer Holds up to 500 sheets of paper The paper size can be adjusted freely. 4th paper drawer 1-12 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 20 Opened when clearing paper misfeeds Precautions for using the finisher, saddle kit and mail bin kit Do not place objects on top of the saddle kit or mail bin kit. Do not place objects under the paper output trays of the finisher. Di2010f/Di2510f/Di3010f/Di3510f 1-13...
  • Page 21 Additional Bin Kit (AK-1) Part Name Description 3rd paper output tray Collects printed pages Saddle Kit (SK-1) Part Name Description Paper output tray Collects printed pages Misfeed-clearing door Opened when clearing paper misfeeds that occurred in the finisher 1-14 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 22 Accommodates a number of lines to permit independent operation of each. Storage (Transmission) Stamp Unit (TX Marker STAMP UNIT 2) A stamp on originals that have been scanned makes confirmation possible. This can only be attached to the duplexing document feeder. Di2010f/Di2510f/Di3010f/Di3510f 1-15...
  • Page 23 1.5 Part Names and Their Functions 1-16 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 24: Available Features

    Available Features...

  • Page 25: Useful Operations

    Original Document Copy Note In order to perform the following procedure, the optional duplex unit and switch- back unit must be installed (for Di2010f). Position the document on the original glass with the center aligned with the book mark on the document scale.
  • Page 26 2.1 Useful Operations For book-binding, touch [Standard Book] or [RightBound], and then touch [Separation]. Next, touch [Enter]. Touch [Double-Sided], and then touch [Page Order]. Touch [Book Order], and then touch [Enter]. Press the [Start] key. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 27 Original Document Copy Note In order to perform the following procedure, the optional duplexing document feeder, duplex unit and switchback unit (for Di2010f) must be installed. Load the document into the duplexing document feeder. ❍ The document can also be positioned on the original glass.
  • Page 28 After all copies are printed, fold the pages in half to form a booklet. If the optional saddle finisher is in- stalled, the crease can be made auto- matically. For details, refer to “To make copies using the “Crease” set- ting” on page 7-10. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 29 Load the document into the duplexing document feeder. ❍ The document can also be positioned on the original glass. Press the [Copy] key, and then touch [Finishing] on the touch panel. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 30 2.1 Useful Operations Touch [Sort]. Touch [2-Point Staple]. Press the [Start] key. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 31 If the document is placed directly on the original glass and the size is detected automatically, the document will be scanned with a standard size. If the document has a non-standard size, first measure the size of the docu- ment. Position the document to be copied. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 32 Touch the button for the multiple bypass tray, and then touch [Mode Change]. Touch [Card], and then touch [Enter]. ❍ If paper with a non-standard size is loaded, touch [Custom Size], and then specify the paper size. (For details, refer to page 5-16.) Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 33 2.1 Useful Operations Touch [Zoom]. Touch [× 0.500]. Touch [Auxiliary], and then touch [Image Repeat]. Touch [Size Input]. 2-10 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 34 ❍ For this example, set the length of side Y to “2 3/4”. Press the [Start] key. Sixteen 4 in. × 1-3/8 in. tickets are copied onto one sheet of paper. Di2010f/Di2510f/Di3010f/Di3510f 2-11...

  • Page 35: Copying While Erasing An Area Around The Document

    If enlarged or reduced copies are made, the same width is erased and an en- larged or reduced copy is printed. Position the document to be copied. Press the [Copy] key, and then touch [Auxiliary] followed by [Edge/ Frame Erase] on the touch panel. 2-12 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 36 2.1 Useful Operations Select the desired position of the erased area. (Example: Erasing a frame) Touch to specify the width of the erased area. Touch [Enter]. Press the [Start] key. Di2010f/Di2510f/Di3010f/Di3510f 2-13...
  • Page 37 Note In order to perform the following procedure, the optional duplexing document feeder, duplex unit and switchback unit (for Di2010f) must be installed. Double-sided 2in1 copying and single-sided 4in1 copying reduce the paper us- age by one fourth, and double-sided 4in1 copying reduces paper usage by one eighth.
  • Page 38 2.1 Useful Operations Press the [Copy] key, and then touch [Orig. Ö Copy] followed by [4in1/Booklet] on the touch panel. Touch [Double-2in1]. Press the [Start] key. Di2010f/Di2510f/Di3010f/Di3510f 2-15...
  • Page 39 Press the [Utility] key. Touch [User’s Choice]. Touch [3/6]. ❍ To specify settings for the Energy Save mode, continue with step 4. ❍ To specify settings for the Sleep mode, skip to step 7. 2-16 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 40 Touch [Energy Save Mode]. Press the [C] (clear) key to erase the current value, and then use the keypad to specify the desired length of time until the machine enters Energy Save mode. Touch [Enter]. Touch [Sleep Mode Setting]. Di2010f/Di2510f/Di3010f/Di3510f 2-17...
  • Page 41 2.1 Useful Operations Use the keypad to specify the desired length of time until the machine enters Sleep mode. Touch [Enter]. 2-18 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 42: Before Making Copies

    Before Making Copies...

  • Page 43: Names Of Control Panel Parts And Their Functions

    • Press to erase a setting (such as the zoom ratio or size) selected using the keypad. • Any letters and numbers being entered are deleted. [Stop] key • Press to stop a copy operation. • Press to stop the scanning of a document. • Fax transmission is stopped. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 44: Utility Mode Operations

    • From this screen, the current settings can also be stored as a copy program. [Accessibility] key Press to activate or deactivate the user accessibility functions. [Enlarge] key Press to enlarge the screens that appear in the touch panel. [Contrast] dial Use to adjust the contrast of the touch panel. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 45: Checking The Settings

    Touch [Next] or [Back] until the screen containing the setting that you wish to change is displayed. Touch the button for the setting that you wish to change. The screen for specifying the setting appears. Change the setting according to the corresponding procedure. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 46: User Accessibility Operations

    Select whether the screens appear in the touch panel in black on white or in white on black. Press the [Accessibility] key in the control panel. Touch [Screen Mode]. Touch [Inverted Screen] to display the screens in white on black. To return the screens to the normal display, touch [Normal Screen]. Touch [Enter]. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 47: To Change The Key Settings ("Key Speed Settings" Function)

    Length of time (in seconds) that a key must be held down before repeatedly entering characters and numbers Example) When the [1] key is held down: Interval Time Delay Time Touch [CHECK] to check the specified settings. Touch [Enter]. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 48: To Change The Auto Panel Reset Time ("Confirming Screen" Function)

    Press the [Accessibility] key in the control panel. Touch [Notification Screen]. Select the desired time setting. ❍ Touch [3 sec.], [10 sec.] or [60 sec.]. ❍ To leave the “The job is accepted.” screen displayed until [Enter] is touched, touch [No Limit]. Touch [Enter]. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 49: To Change The Volume Of Touch Panel Beeps And Alarms ("Sound Setting" Function)

    The volumes of the beep that is sounded when a touch panel button is touched and of the alarm that is sounded when a malfunction occurs can be specified. Press the [Accessibility] key in the control panel. Touch [Sound Setting]. Select the desired volume setting. Touch [Enter]. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 50: Enlarging The Touch Panel Screens

    Touch in this area to Touch in this area to scroll toward the lower- Touch this arrow to scroll down through the scroll toward the lower- left corner of the screen. screen. right corner of the screen. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 51: Turning The Machine On And Off

    3.5 Turning the Machine On and Off Turning the Machine On and Off To turn on the machine Set the power switch to “I”. Make sure that the sub power switch has been pressed in. 3-10 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 52: When The Machine Is Turned On

    Do not turn off the machine while it is scanning or sending or receiving data, otherwise all scanned data or transmission data will be deleted. Do not turn off the machine while a queued job or stored data is waiting to be printed, otherwise the jobs will be deleted. Di2010f/Di2510f/Di3010f/Di3510f 3-11...
  • Page 53 The settings specifying whether or not and the time until the machine enters En- ergy Save mode can be changed. For details, refer to “Changing Default Set- tings” of “Utility Mode Operations” in the Advanced Operations volume of the User Manual. 3-12 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 54: Adjusting The Angle Of The Control Panel

    Adjust the control panel to the angle that allows for easy operation. ➜ Pull the control panel release lever, and then adjust the angle of the control panel. ➀ Upper position (base position) ➁ Middle position ➂ Lower position Di2010f/Di2510f/Di3010f/Di3510f 3-13...

  • Page 55: Using The Touch Panel

    Number of copies: 1 Finishing: Non-Sort Zoom: 1.000 (Full Size) Paper: AutoPaper Density: Text/Photo Orig. Ö Copy: Single-Sided Ö Single-Sided Fax mode Resolution: Standard Contrast: Medium Transmission mode: Memory transmission Reception mode: Automatic reception Transmission source: Within document 3-14 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 56 3.7 Using the Touch Panel < FAX and Copy Screen > This screen allows you to fax and copy without worrying about switching between them. < Copy Screen > This screen is for using copy functions. Di2010f/Di2510f/Di3010f/Di3510f 3-15...

  • Page 57: Index

    User Manual. The default settings can be changed using the various functions on the User’s Choice screen. For details, refer to “Changing Default Settings” of “Utility Mode Operations” in the Advanced Operations volume of the User Manual. 3-16 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 58 The current settings are shown with graphics. Additional message display • The status of the job is shown with graphics. • The remaining amount of memory and graphics warning about empty toner or an empty paper drawer are displayed here. Di2010f/Di2510f/Di3010f/Di3510f 3-17...
  • Page 59 Print: Displays the print status of documents being copied or printed Com.: Displays the results from sending and receiving faxes. Doc.: Bulletin board documents, documents in the confidential box, and stored docu- ments can be checked. 3-18 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 60 The statuses of up to four jobs are displayed. To view the sta- tus of a job that is not dis- played, touch [↑] or [↓]. Check the details, and then touch [Enter]. ❍ To delete a job, touch [Delete]. Di2010f/Di2510f/Di3010f/Di3510f 3-19...
  • Page 61 3.7 Using the Touch Panel To check the printing order Touch [Job List]. Touch [Print Order]. Check the printing order. ❍ Touch [↑] and [↓] to view other parts of the list. After checking the necessary information, touch [Enter]. 3-20 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 62 Touch [Job List]. Touch [Print]. Select the job whose status you wish to check. ❍ Touch [↑] and [↓] to view other parts of the list. ❍ To delete a job, touch [Delete]. After checking the necessary information, touch [Enter]. Di2010f/Di2510f/Di3010f/Di3510f 3-21...

  • Page 63: To Use The Memory Recall Feature

    - The [Panel Reset] key was pressed while printing was stopped. To use the memory recall feature After copying is finished, touch [Job List]. Touch [Memory Recall Waiting]. The information for the job still saved in the memory is displayed. 3-22 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 64 At this time, the Finishing set- ting and the number of copies can be changed. Press the [Start] key. The copies are printed. After copying confidential documents, press the [Panel Reset] key to erase the data from the memory. Di2010f/Di2510f/Di3010f/Di3510f 3-23...
  • Page 65 ❍ Documents awaiting transmission can only be deleted when [Delete] is displayed. ❍ mark is displayed when designated time transmission is set. Touch [Enter] until the original screen is returned to. 3-24 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 66 Touch [Doc.], then touch [Bultn. Board]. Select the documents to be verified. Verify the details of the documents. ❍ Touch [Print] to print a document. ❍ Touch [Delete] to delete a document. Touch [Enter] until the original screen is returned to. Di2010f/Di2510f/Di3010f/Di3510f 3-25...
  • Page 67 Press the arrow keys to search for the desired document. Touching [Check] displays the detailed data. ❍ Touch [Print] to print a document. ❍ Touch [Delete] to delete a document. ❍ To transmit, touch [Check], then touch [Forwarding]. Touch [Enter]. 3-26 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 68 Verify the stored documents. ❍ Press the arrow keys to search for the desired document. ❍ Touch [Print] to print a document. ❍ Touch [Delete] to delete a document. ❍ To transmit, touch [Check], then touch [Forwarding]. Touch [Enter]. Di2010f/Di2510f/Di3010f/Di3510f 3-27...
  • Page 69 3.7 Using the Touch Panel 3-28 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 70: Basic Copy Operations

    Basic Copy Operations...

  • Page 71: Copying From The Fax And Copy Screen

    The Fax Screen is displayed when you input 0 or a number of three or more dig- its starting with a non-zero number. On the Di3501f, the Fax Screen is displyed when you input 0 or number of four or more digits starting with a non-zero number. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 72: Making Basic Copies

    To copy a book or copy while using less paper, touch [Orig. Ö Copy]. ❍ For details, refer to “Selecting the Orig. Ö Copy Settings” (page 7-19). ❍ To change the density of the copy, touch [Density]. For details, refer to “Selecting a Copy Density” (page 7-32). Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 73: Administrator Management Operations

    ❍ On the Di3510f, up to 999 copies can be printed. On the Di3010f, Di2510f or Di2010f up to 99 copies can be printed. ❍ To change the setting, press the [C] (clear) key, and then enter the correct setting.

  • Page 74: Stopping Copying

    The message “Copy cycle temporarily suspended.” appears. To continue copying, press the [Start] key. Copying continues. To delete the stopped copy job, select the button for the job that you wish to delete. The job is deleted. Touch [Exit]. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 75: Appendix

    Press the [Interrupt] key. The indicator on the [Interrupt] key goes off and the Interrupt mode is cancelled. The copy settings for the job before copying was interrupted appear, and copying of the job that was interrupted automatically continues. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 76: Making Copies Using Accounts

    To make copies when accounts are specified If accounts have been specified, the screen shown at the right appears, allowing you to select an account. Touch the button for your account. Using the keypad, enter the 6-digit access code assigned to your account. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 77 4.5 Making Copies Using Accounts Press the [Access] key. The Basics screen appears. Make copies using the desired copy settings. When you are finished making copies, press the [Access] key. The access code input screen appears again. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 78: Copy Paper

    Copy Paper...

  • Page 79: Paper Specifications

    — — 3rd paper drawer (LCC*) — — — — 3rd paper drawer — — — — 4th paper drawer — — — — Double-sided copies — — — — * LCC: Large-capacity cabinet 2: Available —: Not available Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 80 3rd paper drawer (LCC*) — — — — — 3rd paper drawer — — — — — 4th paper drawer — — — — — Double-sided copies — — — — — * LCC: Large-capacity cabinet 2: Available —: Not available Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 81 If the optional finisher is used to sort/group, punch holes and staple, only plain paper can be used. The paper size setting for the 3rd paper drawer (large-capacity cabinet) can be changed in order to load A4-size paper. Contact your service representative to change the paper size setting. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 82: Unsuitable Paper

    Paper of a non-standard shape (not rectangular) Paper that is bound with glue, staples or paper clips Paper with labels attached Paper with ribbons, hooks, buttons, etc. attached Curled or wrinkled paper Art paper, coated paper or inkjet printer paper Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 83: Print Area

    Paper output direction A: 0.16 ± 0.08 in. (4 ± 2 mm) (at full size) B: 0.16 ± 0.08 in. (4 ± 2 mm) (at full size) C: 0.16 ± 0.08 in. (4 ± 2 mm) (at full size) Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 84: Paper Storage

    Not exposed to a flame ❍ Not exposed to high humidity ❍ Not extremely dusty Unwrapped paper should be placed in a plastic bag and stored in a cool, dark location. Keep paper out of the reach of children. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 85: Automatically Selecting The Paper Source

    Order for Selecting Another Paper Drawer When a different paper drawer is automatically selected, the next paper drawer in the following list is chosen. 1st paper drawer → 2nd paper drawer → 3rd paper drawer → 4th paper drawer Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 86: Loading Paper

    When loading additional paper, re- move any paper remaining in the drawer, place it on top of the new paper, and then align the paper in the stack well before loading it into the drawer. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 87 Pull out the paper drawer to be loaded with the paper. Slide the paper guides to fit the size of the paper to be loaded. Note Make sure that the paper guides fit firmly in their slots. 5-10 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 88 (the side facing up when the package was unwrapped) faces up. Note Be careful not to touch the my- lar. Mylar Re-adjust the paper guides to fit the size of the paper. Close the paper drawer. Di2010f/Di2510f/Di3010f/Di3510f 5-11...
  • Page 89 Load the paper into the left side of Mylar the drawer so that the front side of the paper (the side facing up when the package was unwrapped) faces up. Load paper into the right side of the drawer first. 5-12 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 90: To Load Plain Paper

    Note Do not load so much paper that the top of the stack is high- er than the mark. Make sure that the paper Paper guides guides are pushed up against the edges of the paper. Di2010f/Di2510f/Di3010f/Di3510f 5-13...

  • Page 91: To Load Postcards

    Do not load more than 10 enve- lopes. 5-14 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 92: To Load Overhead Projector Transparencies

    5.6 Loading Paper Note Do not load envelopes crosswise. To load overhead projector transparencies ➜ When loading overhead projector transparencies, load them in the same orientation as the document. Note Do not load more than 50 trans- parencies. Di2010f/Di2510f/Di3010f/Di3510f 5-15...

  • Page 93: To Load Label Sheets

    If non-standard-sized paper is loaded, it will be necessary to enter the paper size. Two non-standard paper sizes can be stored for easy selection. For details, refer to the next section. Touch [Paper]. Touch the button for the multiple bypass tray, and then touch [Mode Change]. 5-16 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 94 Touch . Then, touch to select the length of side Y for the paper that is loaded. ❍ Touch until the cursor moves below the digit that you wish to change. Touch [Enter]. Di2010f/Di2510f/Di3010f/Di3510f 5-17...

  • Page 95: To Store A Non-Standard (Custom) Paper Size

    Two non-standard paper sizes can be stored. Storing paper sizes that are used often enables the paper size to be selected quickly. Touch the button for the multiple bypass tray, and then touch [Mode Change]. Touch [Custom Size]. The Custom Size screen appears. Touch [Memorize Paper Size]. 5-18 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 96 ❍ To store another custom paper size, repeat steps 4 and 5. Touch [Enter]. This completes the storing of custom paper sizes. Di2010f/Di2510f/Di3010f/Di3510f 5-19...

  • Page 97: To Select A Stored Non-Standard (Custom) Paper Size

    Position the document(s) to be copied. Touch [Paper]. Touch the button for the multiple bypass tray, and then touch [Mode Change]. Touch [Custom Size]. Touch either [1] or [2] to select the stored custom paper size, and then touch [Enter]. 5-20 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 98 5.6 Loading Paper Press the [Start] key. The copies are printed. Di2010f/Di2510f/Di3010f/Di3510f 5-21...

  • Page 99: Selecting The Paper Setting

    Touch the button for the multiple bypass tray, and then touch [Mode Change]. Touch the button for the type of paper loaded into the multiple bypass tray, and then touch [Enter]. Press the [Start] key. The copies are printed. 5-22 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 100: Original Documents

    Original Docu- ments...

  • Page 101: Feeding The Document

    × × 2 in. 8-1/2 in. L), Invoice C (5-1/2 in. 8-1/2 in. C) “Mixed Orig Detection” Function Single-Sided Documents Double-Sided Documents Paper Type Plain Paper (13-1/4 lbs. to 34 lbs.) Document Size Refer to "Mixed Width Document Sizes". Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 102 Paper feed direction direction Unit: inch Note An area of 10 mm on all sides of the document cannot be scanned. When posi- tioned on the original glass, any document with the A3T-size or smaller can be faxed. Unit: inch Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 103 Documents that have just been printed with this machine Documents on paper that cannot be fed Curled documents Wrinkled or torn documents Overhead transparencies If non-standard-sized paper is determined to be close to a standard size, copying with the “Auto Paper” or “Auto Size” settings is possible. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 104: Feeding The Document Through The Duplexing Document Feeder

    Ä than the mark. Adjust the document guides to the size of the document. Note Be sure to load the document correctly, otherwise the pages may not be fed in straight. Make the various settings for faxing or copying. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 105: To Load A Document Of Mixed Sizes ("Mixed Orig Detection" Function)

    Stack the pages of the document face up as shown, making sure that all pages are aligned at the top edge and on the left side. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 106 Note Certain document size combinations are not possible with the “Mixed Orig Detection” function. For details, refer to page 6-3. In the Basics screen, touch [Mixed Orig Detection]. Select the desired copy settings, and then press the [Start] key. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 107: Positioning Documents On The Original Glass

    Follow the procedure described below when copying plain paper or documents that cannot be fed through the duplexing document feeder. Lift open the original cover, or the duplexing document feeder if it is installed, and then position the document face down on the original glass. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 108: To Position Transparent Or Translucent Documents

    Place a blank sheet of paper of the same size over the document. Carefully close the original cover, or the duplexing document feeder if it is installed. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 109: To Position Books Or Magazines

    Do not place objects exceeding 6-1/2 lbs. on the original glass. If a book is placed on the original glass, do not press it down with extreme force, otherwise the original glass may be damaged. 6-10 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 110: Di2010F/Di2510F/Di3010F/Di3510F

    7. Shows the selected File Margin setting from the Auxiliary screen if a binding margin is specified for the copy (Advanced Operations volume) 8. Shows the stapling or hole-punching position that must be selected (page 7-7 and page 7-9) * A dash (—) indicates that no setting should be selected. Di2010f/Di2510f/Di3010f/Di3510f 6-11...
  • Page 111 Hole Punch — — Sided 2-Point Staple Single- Corner Staple — — — Sided Single- Corner Staple — — — Sided Single- Hole Punch — — Sided 2-Point Staple Single- Hole Punch — — — Sided 2-Point Staple 6-12 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 112 Hole Punch — — — 2in1 2-Point Staple Single- Corner Staple — — — 2in1 Single- Corner Staple — — — 2in1 Single- Hole Punch — — — 2in1 2-Point Staple Single- Hole Punch — — 2in1 2-Point Staple Di2010f/Di2510f/Di3010f/Di3510f 6-13...
  • Page 113 Hole Punch — — 4in1 2-Point Staple Single- Corner Staple — — — 4in1 Single- Corner Staple — — — 4in1 Single- Hole Punch — — 4in1 2-Point Staple Single- Hole Punch — — — 4in1 2-Point Staple 6-14 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 114 Double- Hole Punch — — Sided 2-Point Staple Double- Corner Staple — — Sided Double- Corner Staple — — — Sided Double- Hole Punch — — Sided 2-Point Staple Double- Hole Punch — — — Sided 2-Point Staple Di2010f/Di2510f/Di3010f/Di3510f 6-15...
  • Page 115 Hole Punch — — — 2in1 2-Point Staple Double- Corner Staple — — — 2in1 Double- Corner Staple — — 2in1 Double- Hole Punch — — — 2in1 2-Point Staple Double- Hole Punch — — 2in1 2-Point Staple 6-16 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 116 11 12 Double- Corner Staple — — — 4in1 9 10 11 12 Double- Hole Punch — — 4in1 2-Point Staple 9 10 11 12 Double- Hole Punch — — — 4in1 2-Point Staple 9 10 11 12 Di2010f/Di2510f/Di3010f/Di3510f 6-17...
  • Page 117 Sided 2-Point Staple Single- Hole Punch — — Sided 2-Point Staple Single- Corner Staple — — Sided Single- Corner Staple — — Sided Single- Hole Punch — — Sided 2-Point Staple Single- Hole Punch — Sided 2-Point Staple 6-18 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 118 2-Point Staple Single- Hole Punch — — — 2in1 2-Point Staple Single- Corner Staple — — 2in1 Single- Corner Staple — — 2in1 Single- Hole Punch — — 2in1 2-Point Staple Single- Hole Punch — 2in1 2-Point Staple Di2010f/Di2510f/Di3010f/Di3510f 6-19...
  • Page 119 4in1 2-Point Staple Single- Hole Punch — — 4in1 2-Point Staple Single- Corner Staple — — 4in1 Single- Corner Staple — — 4in1 Single- Hole Punch — — 4in1 2-Point Staple Single- Hole Punch — 4in1 2-Point Staple 6-20 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 120 — Sided 2-Point Staple Double- Hole Punch — — Sided 2-Point Staple Double- Corner Staple — — Sided Double- Corner Staple — Sided Double- Hole Punch — Sided 2-Point Staple Double- Hole Punch — — Sided 2-Point Staple Di2010f/Di2510f/Di3010f/Di3510f 6-21...
  • Page 121 3 4 5 6 Double- Hole Punch — — — 2in1 2-Point Staple Double- Corner Staple — — 2in1 Double- Corner Staple — 2in1 Double- Hole Punch — — 2in1 2-Point Staple Double- Hole Punch — 2in1 2-Point Staple 6-22 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 122 — 4in1 9 10 11 12 Double- Corner Staple — 4in1 9 10 11 12 Double- Hole Punch — 4in1 2-Point Staple 9 10 11 12 Double- Hole Punch — — 4in1 2-Point Staple 9 10 11 12 Di2010f/Di2510f/Di3010f/Di3510f 6-23...
  • Page 123 Hole Punch — — Sided 2-Point Staple Single- Corner Staple — — — Sided Single- Corner Staple — — — Sided Single- Hole Punch — — Sided 2-Point Staple Single- Hole Punch — — — Sided 2-Point Staple 6-24 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 124 Single- Hole Punch — — 2in1 2-Point Staple Single- Corner Staple — — — 2in1 Single- Corner Staple — — 2in1 Single- Hole Punch — — — 2in1 2-Point Staple Single- Hole Punch — — 2in1 2-Point Staple Di2010f/Di2510f/Di3010f/Di3510f 6-25...
  • Page 125 Hole Punch — — 4in1 2-Point Staple Single- Corner Staple — — — 4in1 Single- Corner Staple — — — 4in1 Single- Hole Punch — — 4in1 2-Point Staple Single- Hole Punch — — — 4in1 2-Point Staple 6-26 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 126 Double- Hole Punch — — Sided 2-Point Staple Double- Corner Staple — — Sided Double- Corner Staple — — — Sided Double- Hole Punch — — Sided 2-Point Staple Double- Hole Punch — — — Sided 2-Point Staple Di2010f/Di2510f/Di3010f/Di3510f 6-27...
  • Page 127 Double- Hole Punch — — 2in1 2-Point Staple Double- Corner Staple — — — 2in1 Double- Corner Staple — — 2in1 Double- Hole Punch — — — 2in1 2-Point Staple Double- Hole Punch — — 2in1 2-Point Staple 6-28 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 128 11 12 Double- Corner Staple — — — 4in1 9 10 11 12 Double- Hole Punch — — 4in1 2-Point Staple 9 10 11 12 Double- Hole Punch — — — 4in1 2-Point Staple 9 10 11 12 Di2010f/Di2510f/Di3010f/Di3510f 6-29...

  • Page 129: Large Documents

    If the document is being fed through the duplexing document feeder, the “Orig- inal Direction” function is not available. When making 11 × 17 L or Legal L copies, the “2-Point Staple” and “Hole Punch” settings are not available with the following positions. 9 10 11 12 6-30 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 130: Specifying Copy Settings

    Specifying Copy Settings...

  • Page 131: Specifying Finishing Settings

    Non-Sort The copies are fed out and stacked on top of each other as they are printed. Sort The copies are automatically di- vided into the specified number of sets with each set containing a copy of each page. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 132 <Only when the finisher and the saddle kit are installed> Corner Staple Copies printed with the “Sort” or “Group” setting are automatically stapled together in the upper-left corner. Note Thick paper, envelopes and over- head projector transparencies cannot be stapled. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 133 The default setting is “Non-Sort”. The default setting can be changed using a function on the User’s Choice screen. For de- tails, refer to “Changing Default Settings” of “Utility Mode Operations” in the Ad- vanced Operations volume of the User Manual. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 134 None of the following can be selected: a stapling or the “Hole Punch” setting and the “Page Insertion”, the “Cover Mode” and the “Image Repeat” functions. A paper drawer cannot be selected. Shift Sorting Each copy set is fed out shifted to alternating sides. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 135 7.1 Specifying Finishing Settings Crisscross Sorting Each copy set is fed out in an alternating crisscross pattern. Shift Grouping Each page set is fed out shifted to alternating sides. Crisscross Grouping Each page set is fed out in an alternating crisscross pattern. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 136 If “Corner Staple” was selected, skip to step 7. ❍ If “2-Point Staple” was selected, continue with step 4. Touch [Select Position]. Touch the button for the desired stapling position. Touch [Enter]. Press the [Start] key. The copies are printed. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 137 “Separate Scan” function. For details, refer to “Auxiliary Functions” in the Advanced Operations volume of the User Manual. When copying while using a stapling setting, be sure that the maximum number of pages that can be stapled together is not exceeded. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 138 If copying is started without the hole punch position specified or if "OFF" was selected, the hole punch position is automatically specified according to the document orientation, as shown below. To adjust the position of the punched holes, contact your service represen- tative. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 139: To Make Copies Using The "Crease" Setting

    Orig. Ö Copy screen. (Refer to page 7-22.) Position the document(s) to be copied. Press the [Copy] key. Select “Non-Sort”, “Sort” or “Group”, and then touch [Crease]. Press the [Start] key. The copies are printed. 7-10 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 140 Paper size: 5-1/2 8-1/2C Document size: Letter or Legal L Document size: Letter or Legal L Paper size: Letter or Legal L × × × Document size: 11 17 L Document size: 11 17 L Paper size: 11 17 L Di2010f/Di2510f/Di3010f/Di3510f 7-11...
  • Page 141 Document size: Letter L or Document size: Letter L or Paper size: Letter L or Legal L Legal L Legal L × × × Document size: 11 17 L Document size: 11 17 L Paper size: 11 17 L 7-12 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 142 When copying with the "Hole Punch" setting selected, be careful of the orientation of the document. When the finisher (FN-117) and saddle kit are installed Screen Document Orientation Icon Feeding From the Duplexing Scanning From the Original Document Feeder Glass Di2010f/Di2510f/Di3010f/Di3510f 7-13...

  • Page 143: Specifying A Zoom Setting

    Selecting the “Minimal” setting ensures that any part of the original positioned at the edge of the page will not be cut off in the copy. ❍ The zoom ratio of the “Minimal” setting can be changed to any ratio between 0.900 and 0.999. 7-14 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 144: To Select A Zoom Setting

    Touch [Zoom]. A screen appears, showing the available Zoom settings. Select the desired Zoom setting. Specifying a “CustomZoom” Setting To enter a custom zoom ratio Press the [Copy] key. Touch [Zoom]. A screen appears, showing the available Zoom settings. Di2010f/Di2510f/Di3010f/Di3510f 7-15...

  • Page 145: To Store Customzoom And Minimal Zoom Ratios

    (between 0.250 and 4.000). ❍ To store a Minimal zoom ratio, type in the desired zoom ratio between 0.900 and 0.999. The entered zoom ratio is displayed. Touch [1], [2] or [Minimal]. Touch [Enter]. The entered zoom ratio is stored. 7-16 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 146: To Recall A Stored Custom Zoom Ratio

    Touch [Enter]. The entered zoom ratio is recalled. To specify different vertical and horizontal scaling proportions (“X/Y Zoom” setting) Press the [Copy] key. Touch [Zoom]. A screen appears, showing the available Zoom settings. Touch [CustomZoom]. Touch [X/Y Zoom]. The X/Y Zoom screen appears. Di2010f/Di2510f/Di3010f/Di3510f 7-17...
  • Page 147 Use the keypad to type in the desired length of side X (between 0.250 and 4.000). Use the keypad to type in the desired length of side Y (between 0.250 and 4.000). Touch [Enter]. The entered zoom ratio is applied. 7-18 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 148: Selecting The Orig. > Copy Settings

    Single-Sided Ö Double-2in1 A double-sided copy is produced from four single-sided documents. Double-Sided Ö Single-Sided <Only if the duplexing document feeder is installed> Two single-sided copies are pro- duced from a double-sided docu- ment. Di2010f/Di2510f/Di3010f/Di3510f 7-19...
  • Page 149 <Only if the duplexing document feeder is installed> A double-sided copy is produced from two double-sided documents. Single-Sided Ö Single-4in1 A single-sided copy is produced from four single-sided documents. Single-Sided Ö Double-4in1 A double-sided copy is produced from eight single-sided docu- ments. 7-20 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 150 Book (Separation) Ö Single-Sided Two single-sided copies are pro- duced from a bound document. Book (Spreadsheet) Ö Single-Sid- A single-sided copy is produced from a bound document. Book (Separation) Ö Double-Sid- A double-sided copy is produced from a bound document. Di2010f/Di2510f/Di3010f/Di3510f 7-21...

  • Page 151: To Specify Orig. Ö Copy Settings

    Position the document(s) to be copied. ❍ For details, refer to “6 Original Documents”. Press the [Copy] key. Touch [Orig Ö Copy]. Select the setting for the type of document to be copied. (For the example at the right, touch [Single-Sided].) 7-22 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 152 4in1” settings, touch [4in1/Booklet]. Touch [Original Direction]. ❍ Select an Original Direction setting if the document is loaded in an orientation other than the standard. Select the appropriate document orientation setting. Touch [Enter]. Press the [Start] key. The copies are printed. Di2010f/Di2510f/Di3010f/Di3510f 7-23...
  • Page 153 Sided” or the “Double-Sided Ö Single-Sided” settings selected. Original document with Original document without binding margin binding margin Position the document(s) to be copied. ❍ For details, refer to “6 Original Documents”. Press the [Copy] key. Touch [Orig Ö Copy]. Touch [Margin]. 7-24 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 154 Top binding position Touch to select the desired binding margin width. ❍ The binding margin can be set between 0 in. and 3/4 in., in 1/ 16 in. increments. Touch [Enter]. Press the [Start] key. The copies are printed. Di2010f/Di2510f/Di3010f/Di3510f 7-25...
  • Page 155 To adjust the width of the area erased from the bottom of the second side, contact your service representative. 7-26 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 156 (“Separation”). To erase around the text or along the binding, touch [Book Erase]. Select the desired Book Erase setting. To adjust the width of the area erased from the center of the page, contact your service rep- resentative. Di2010f/Di2510f/Di3010f/Di3510f 7-27...
  • Page 157 The erased area can be set between 1/4 in. and 3/4 in., in 1/16 in. increments. As a default, the width of the area erased along the binding is 5/16 in. To change this default setting, consult your service representa- tive. Touch [Enter]. 7-28 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 158 7.3 Selecting the Orig. > Copy Settings Select the desired copy settings. Note The “Book” Orig. setting can- not be selected if a 2in1, 4in1 or the Booklet Copy setting are selected. Press the [Start] key. The copies are printed. Di2010f/Di2510f/Di3010f/Di3510f 7-29...
  • Page 159 (“Standard Book” or “RightBound”). Touch [Separation], and then touch [Enter]. Touch [Double-Sided]. Touch [Page Order]. Select the setting for the desired page order, and then touch [Enter]. Both the left and the right sides are double-sided. 7-30 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 160 “Single-Sided Ö Double-Sided” or “Double-Sided Ö Double- Sided”. The default settings can be changed using the various functions on the User’s Choice screen. For details, refer to “Changing Default Settings” of “Utility Mode Operations” in the Advanced Operations volume of the User Manual. Di2010f/Di2510f/Di3010f/Di3510f 7-31...

  • Page 161: Specifying A Copy Density

    The density is automatically adjusted for the document. Position the document(s) to be copied. ❍ For details, refer to “6 Original Documents”. Press the [Copy] key. Touch [Density]. Touch [Text]. Touch [Auto], or touch [Lighter] and [Darker] to select the desired Density setting. 7-32 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 162 “Text” setting. Selecting the “Text/Photo” Setting Select the “Text/Photo” setting when copying documents containing both text and photos. Position the document(s) to be copied. ❍ For details, refer to “6 Original Documents”. Press the [Copy] key. Touch [Density]. Di2010f/Di2510f/Di3010f/Di3510f 7-33...
  • Page 163 However, the density can be made lighter or darker using a function on the User’s Choice screen. For details, refer to “Changing Default Settings” of “Utility Mode Operations” in the Advanced Operations volume of the User Manual. 7-34 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 164: Touch Panel Messages

    Touch Panel Messages...

  • Page 165: When The Message "Please Add Toner." Appears

    When the toner is empty, the message shown below appears and printing can no longer be performed. Follow the procedure described below to replace the toner bottle. To replace the toner bottle Open the front door. Pull the toner hopper out as far as possible. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 166 ❍ Since the toner within the bottle may have become compacted, be sure to break it up by performing this step. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 167 With the seal on the toner bottle facing upward, insert the bottle. Flip down on the toner bottle holder until it locks into place. Grab the seal on the toner bottler, and then slowly pull it off toward you. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 168 When the front door is closed, the toner automatically begins refilling. While toner is being refilled, do not turn off the machine or open any other doors. If the print is faint immediately after the toner bottle is replaced, replenish the toner. (Refer to page 9-3.) Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 169: When The Message "Stapler Empty." Appears

    Be sure to replace the staple cartridge only after the message appears. The ma- chine may be damaged if the staple cartridge is removed before the message appears. To replace the staple cartridge for finisher FN-117 Open the front door. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 170 8.2 When the Message “Stapler empty.” Appears Pull the staple cartridge holder out toward you. Press in the area marked “PUSH” to unlock the staple holder. Remove the empty staple cartridge from the staple cartridge holder. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 171 8.2 When the Message “Stapler empty.” Appears Insert the new staple cartridge into the staple cartridge holder, and then carefully remove the stopper. Insert the refilled staple cartridge holder until it locks into place. Close the front door. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 172: To Replace The Staple Cartridge For The Saddle Finisher

    To replace the staple cartridge for the saddle finisher While holding up the paper output tray, remove the staple cartridge. Press in the area marked “PUSH” to unlock the staple holder. Remove the empty staple cartridge from the staple cartridge holder. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 173 Insert the refilled staple cartridge holder until it locks into place. CAUTION Be careful when installing the staple cartridge holder. ➜ Be sure that the staple cartridge holder is inserted facing the correct direction. Lower the paper output tray. 8-10 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 174: When A Paper Misfeed Occurs

    A paper misfeed in the multiple bypass A paper misfeed in the mailbin tray (page 8-17) (page 8-24) A paper misfeed in the 1st or 2nd A paper misfeed in the saddle kit paper drawer (page 8-18) (page 8-26) Di2010f/Di2510f/Di3010f/Di3510f 8-11...

  • Page 175: To Clear A Paper Misfeed In The Duplexing Document Feeder

    Pull up the lever for the misfeed- clearing cover, and then open the cover. Carefully pull out any misfed documents. Swing up the document guide lever. Turn the dial to feed out any misfed documents. 8-12 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 176: To Clear A Paper Misfeed In The Fusing Section

    Touching any part other those indicated may result in burns. If you get burnt, immediately cool the skin under cold water, and then seek professional medical attention. Pull up the right-side door release lever, and then open the right-side door. Di2010f/Di2510f/Di3010f/Di3510f 8-13...
  • Page 177 Decreased copy quality may result if the surface of the image transfer roller is touched. ➜ Be careful not to touch the surface of the image transfer roller. Image transfer roller Carefully pull out any misfed paper. Open the fusing unit guide. 8-14 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 178 8.3 When a Paper Misfeed Occurs Carefully pull out any misfed paper. Open the switching guide, and then carefully pull out any misfed paper in the switchback unit. Carefully pull out any misfed paper in the fusing section. Di2010f/Di2510f/Di3010f/Di3510f 8-15...
  • Page 179 If the paper is misfed as described below, contact your service representative. - The paper is wrapped around the image transfer roller. - The paper is folded or shredded by the image transfer roller. - The paper that was removed tore and partly remains in the fusing unit. 8-16 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 180: To Clear A Paper Misfeed In The Duplex Unit

    Pull out any misfed paper from the multiple bypass tray. If the misfed paper cannot be pulled out, pull the lever for the sliding plate of the multiple bypass tray, and then pull the sliding plate toward you. Di2010f/Di2510f/Di3010f/Di3510f 8-17...

  • Page 181: To Clear A Paper Misfeed In The 1St Or 2Nd Paper Drawer

    To clear a paper misfeed in the 1st or 2nd paper drawer Open the multiple bypass tray. Pull up the lower-right door release lever to open the lower- right door of the paper feed unit indicated in the touch panel message. 8-18 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 182: To Clear A Paper Misfeed In The 3Rd Or 4Th Paper Drawer

    To clear a paper misfeed in the 3rd or 4th paper drawer Pull up the lower-right door release lever to open the lower- right door of the paper feed unit indicated in the touch panel message. Carefully pull out any misfed paper. Close the lower-right door. Di2010f/Di2510f/Di3010f/Di3510f 8-19...

  • Page 183: To Clear A Paper Misfeed In The Large-Capacity Cabinet

    To clear a paper misfeed in the large-capacity cabinet Pull up the lower-right door release lever to open the lower- right door of the paper feed unit indicated in the touch panel message. Carefully pull out any misfed paper. Close the lower-right door. 8-20 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 184: To Clear A Paper Misfeed In The Finisher (Fn-117)

    8.3 When a Paper Misfeed Occurs To clear a paper misfeed in the finisher (FN-117) Open the front door. Lower lever FN1, and then pull out any misfed paper. Turn knob FN2. Di2010f/Di2510f/Di3010f/Di3510f 8-21...
  • Page 185 Pull out the punch box. Lower lever FN3, and then pull out any misfed paper. Return lever FN1 and lever FN3 to their original position. <If the punch kit is installed> Insert the punch box into its original position. Lower lever FN4. 8-22 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 186 8.3 When a Paper Misfeed Occurs Turn dial FN5 or dial FN6, and then pull out any misfed paper. Return lever FN4 to its original position. Close the front door. Di2010f/Di2510f/Di3010f/Di3510f 8-23...

  • Page 187: To Clear A Paper Misfeed In The Mailbin (Mk-1)

    8.3 When a Paper Misfeed Occurs To clear a paper misfeed in the mailbin (MK-1) Open the front door. Turn dial FN5 or dial FN6, and then pull out any misfed paper. While pressing down lever FN7, pull out any misfed paper. 8-24 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 188 8.3 When a Paper Misfeed Occurs Pull handle FN8 to open the misfeed-clearing door. Pull out any misfed paper in the mailbin. Close the misfeed-clearing door. Close the front door. Di2010f/Di2510f/Di3010f/Di3510f 8-25...

  • Page 189: To Clear A Paper Misfeed In The Saddle Kit

    8.3 When a Paper Misfeed Occurs To clear a paper misfeed in the saddle kit Open the front door. Turn dial FN5 or dial FN6, and then pull out any misfed paper. Remove all paper from the paper output tray. 8-26 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 190 8.3 When a Paper Misfeed Occurs Open the misfeed-clearing door, and then pull out any misfed paper. Close the misfeed-clearing door. Close the front door. Di2010f/Di2510f/Di3010f/Di3510f 8-27...

  • Page 191: When The Message "Cannot Staple." Appears

    When the message “Cannot Staple.” appears, clear the jammed staples as de- scribed below. If the following procedure is not followed and the paper is pulled out with too much force, the stapler unit may be damaged. Remove all paper from the finisher. 8-28 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 192 8.4 When the Message “Cannot Staple.” Appears Open the front door. Lower lever FN1, and then pull out any misfed paper. Turn dial FN2. Di2010f/Di2510f/Di3010f/Di3510f 8-29...
  • Page 193 Pull out the punch box. Lower lever FN3, and then pull out any misfed paper. Return lever FN1 and lever FN3 to their original position. <If the punch kit is installed> Insert the punch box into its original position. Lower lever FN4. 8-30 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 194 Turn dial FN5 or dial FN6, and then pull out any misfed paper. Return lever FN4 to its original position. Turn the dial to the left to move the stapler toward the front. Pull the staple cartridge holder out toward you. Di2010f/Di2510f/Di3010f/Di3510f 8-31...
  • Page 195 Return the guide to its original position. Insert the staple cartridge holder until it locks into place. Close the front door. Note If stapling still cannot be performed, even after performing the above proce- dure, contact your service representative. 8-32 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 196: When The Message "Empty Punch Scraps." Appears

    If the punch kit is attached to the finisher, the following message will appear when the punch box is full. Follow the procedure described below to empty the punch box. To empty the punch box Empty and re-install the punch box as described below. Open the front door. Di2010f/Di2510f/Di3010f/Di3510f 8-33...
  • Page 197 8.5 When the Message “Empty punch scraps.” Appears Pull out the punch box. Empty the punch box. Insert the punch box into its original position. Close the front door. 8-34 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 198: Troubleshooting

    Troubleshoot-...

  • Page 199: Main Messages And Their Remedies

    [Finish]. not be scanned while scanning manually. Properly close the section(s) The door or cover indicated by Make sure that all doors and indicated by the arrow(s). the arrow is open. covers are properly closed. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 200: When Incorrect Copies Are Printed

    The printed output is blurry. The paper is damp. Replace the paper. The document was not pressed Position the document so that it close enough against the is pressed closely against the original glass. original glass. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 201 The printed page is curled. The paper that was used (as Remove the paper from the with recycled paper) curls paper drawer, turn it over, and easily. then load it again. Replace the paper with paper that is not damp. Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 202 Custom Zoom setting was selected paper size. selected). Otherwise, set Zoom to “Auto Size” to reduce the copy to the selected paper size. * If the problem is not corrected even after the operations described above are performed, contact your service representative. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 203: When The Machine Is Not Operating Correctly

    Close the breaker for the circuit has been tripped. electrical circuit. * If the problem is not corrected even after the operations described are performed, turn off the machine,unplug its power supply cord, and the contact your service representative. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 204: The Fax Does Not Work Properly

    After the document stored in memory has been sent and the memory remaining increased, send again. When the transmission Is the stamp (replaceable stamp) Replace the stamp (replaceable stamp is faint. close to the end of its operational stamp). (optional) life? Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 205: Reception Is Poor

    There are black streaks Is there any problem with the Make a copy from the product. If on the received paper. connection to the receiving fax? there are no back streaks on the paper, transmit again to the destination. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 206: Telephone Calls Are Difficult To Make

    The telephone ring is too Is the monitor volume too quiet Adjust the monitor volume. quiet (loud). (loud)? The destination’s voice Is the receiver volume too low? Increase the receiver volume. is hard to hear on the receiver of the external telephone receiver. Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 207: Replacing The Completion Stamp

    An optional completion stamp is necessary. Replacing the Storage (Transmission) Stamp Pull the lever for the paper feed cover, and open it. Pull the lever for the setting guide, and open it. Remove the stamp. 9-10 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 208 9.5 Replacing the Completion Stamp Set the new stamp. Replace the guide, and return the paper feed cover. Di2010f/Di2510f/Di3010f/Di3510f 9-11...
  • Page 209 9.5 Replacing the Completion Stamp 9-12 Di2010f/Di2510f/Di3010f/Di3510f...

  • Page 210: Index

    Index...
  • Page 211 Checking the print order ..............3-20 Checking the settings ................3-4 Checking the status of a job .............. 3-19 Clearing jammed staples ..............8-28 Control panel ................1-10 Access key ..................3-2 Accessibility key ................3-3 Clear key ..................3-2 10-2 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 212 Document guides ................1-12 Document output tray ................1-12 Document pad ...................1-10 Document scales ................1-10 Double-2in1 ..................7-19 Double-4in1 ..................7-20 Double-sided ..................7-19 Drawer release button ...............1-14 Duplex unit ..................1-10 Duplex unit door ................1-10 Duplexing document feeder ..............1-6 Duplexing document feeder connector ..........1-11 Di2010f/Di2510f/Di3010f/Di3510f 10-3...
  • Page 213 Job separator ..................1-6 Landscape ..................1-5 Large capacity cabinet ................ 1-6 Loading documents for specific applications ........6-11 Loading paper ..................5-9 large-capacity cabinet ..............5-12 multiple bypass tray ..............5-13 paper drawer ................5-10 Lower-right door ................1-14 10-4 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 214 Output tray cover ................1-13 Overhead projector transparencies ........... 5-2 5-15 Paper feed unit ..................1-7 Paper guide ..................1-9 Paper misfeed 1st or 2nd paper drawer ...............8-18 3rd or 4th paper drawer ...............8-19 duplex unit ..................8-17 duplexing document feeder ............8-12 Di2010f/Di2510f/Di3010f/Di3510f 10-5...
  • Page 215 ................8-9 Replacing the toner bottle ..............8-2 Right-side door ..................1-9 Right-side door release lever .............. 1-9 Saddle kit .................... 1-7 Screen tabs ..................3-17 Selected settings ................3-17 Shift grouping ..................7-6 Shift sorting ..................7-5 10-6 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 216 Telephone line jack for line 2 .............1-11 Touch panel ................1-9 3-14 Transmission stamp ................9-10 Transmission stamp unit ..............1-15 Tray extension ..................1-9 Turning the machine on and off ............3-10 Useful operations .................2-2 X/Y zoom setting ................7-17 Zoom setting ..................7-14 Di2010f/Di2510f/Di3010f/Di3510f 10-7...
  • Page 217 10.1 Index 10-8 Di2010f/Di2510f/Di3010f/Di3510f...
  • Page 218 Copyright 2003 MINOLTA CO., LTD. Printed in Japan The information contained in this manual is subject to change without notice to incorporate improvements made on the product or products the manual covers. MINOLTA CO., LTD. 2003. 04 3-13, 2-chome, Azuchi-Machi, Chuo-ku, Osaka. 541-8556, Japan...
