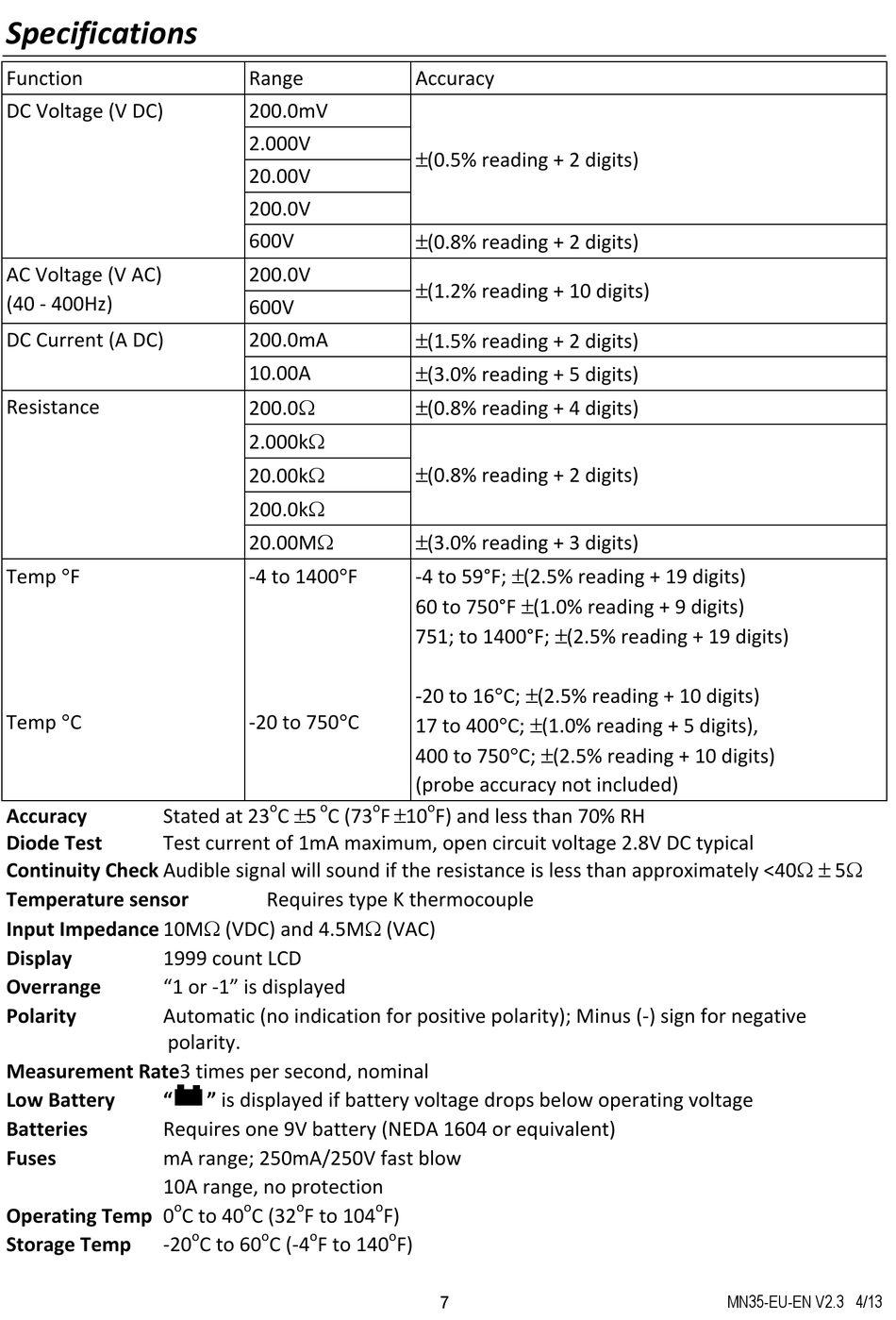

Specifications
Function
DC Voltage (V DC)
AC Voltage (V AC)
(40 ‐ 400Hz)
DC Current (A DC)
Resistance
Temp F
Temp C
Accuracy Stated at 23
Diode Test Test current of 1mA maximum, open circuit voltage 2.8V DC typical
Continuity Check Audible signal will sound if the resistance is less than approximately <40  5
Temperature sensor
Input Impedance 10M (VDC) and 4.5M (VAC)
Display 1999 count LCD
Overrange "1 or ‐1" is displayed
Polarity Automatic (no indication for positive polarity); Minus (‐) sign for negative
polarity.
Measurement Rate3 times per second, nominal
Low Battery " " is displayed if battery voltage drops below operating voltage
Batteries Requires one 9V battery (NEDA 1604 or equivalent)
Fuses mA range; 250mA/250V fast blow
10A range, no protection
o
Operating Temp 0
Storage Temp ‐20
Range
200.0mV
2.000V
20.00V
200.0V
600V
200.0V
600V
200.0mA
10.00A
200.0
2.000k
20.00k
200.0k
20.00M
‐4 to 1400F
‐20 to 750C
o o
C 5 C (73
Requires type K thermocouple
o o
C to 40 C (32 F to 104
o o o
C to 60 C (‐4 F to 140
Accuracy
(0.5% reading + 2 digits)
(0.8% reading + 2 digits)
(1.2% reading + 10 digits)
(1.5% reading + 2 digits)
(3.0% reading + 5 digits)
(0.8% reading + 4 digits)
(0.8% reading + 2 digits)
(3.0% reading + 3 digits)
‐4 to 59°F; (2.5% reading + 19 digits)
60 to 750°F (1.0% reading + 9 digits)
751; to 1400°F; (2.5% reading + 19 digits)
‐20 to 16C; (2.5% reading + 10 digits)
17 to 400C; (1.0% reading + 5 digits),
400 to 750C; (2.5% reading + 10 digits)
(probe accuracy not included)
o 10 o
F F) and less than 70% RH
o
F)
o
F)
7
MN35-EU-EN V2.3 4/13
