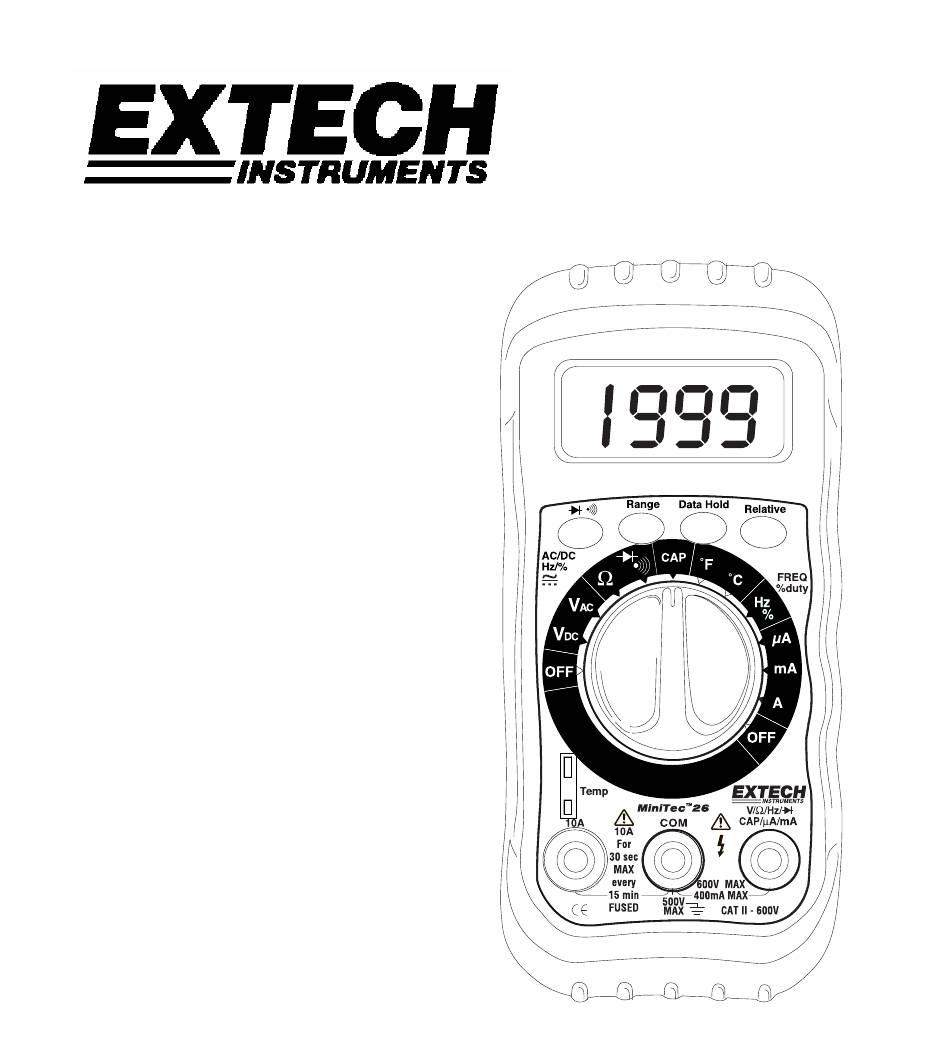

- Page 1 User’s Manual MiniTec Series Model MN26 Mini Autoranging MultiMeter...

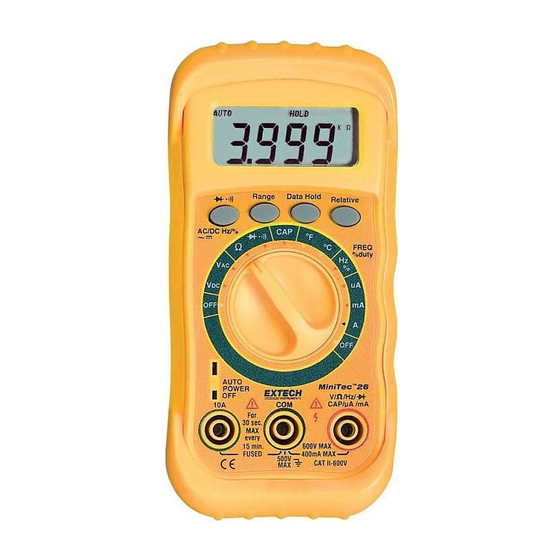

- Page 2 Introduction Congratulations on your purchase of Extech’s MN26 Autoranging Multimeter. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, Diode Test and Continuity. Proper use and care of this meter will provide many years of reliable service. Safety International Safety Symbols This symbol, adjacent to another symbol or terminal,...
-
Page 3: Specifications
Always discharge capacitors and remove power from the device under test before performing Capacitance, Diode, Resistance or Continuity tests. Remove the battery from the meter if the meter is to be stored for long periods. To avoid electric shock, do not measure AC current on any circuit whose voltage exceeds 250V AC. - Page 4 Function Range Resolution Accuracy AC Current ±(1.8% reading + 5 digits) 400µA 0.1µA (A AC) 4000µA 1µA (40 - 400Hz) 40mA 0.01mA (40 - 200Hz for 400mA 0.1mA 400µA, 4mA ±(3.0% reading + 7 digits) 0.01A ranges) ±(1.2% reading + 4 digits) Resistance 400Ω...
- Page 5 Function Range Resolution Accuracy ±(1.2% reading + 2 digits) Duty Cycle 0.1 to 99.9% 0.1% Pulse width: 100µs - 100ms Temp °F ±(3.0% reading + 3 digits) -4 to 1400°F 1°F (probe % not included) Temp °C -20 to 760°C 1°C Input Limits Function...
-
Page 6: Meter Description
mA, µA ranges, 0.5A/250V fast blow Fuses 10A range, 10A/250V fast blow Operating Temperature F to 122 F (0 C to 50 Storage Temperature F to 140 F (-20 C to 60 Relative Humidity <70% operating, <80% storage Operating Altitude 7000ft (2000 meters) maximum. - Page 7 Symbols AC (alternating current or voltage) DC (direct current or voltage) •))) Continuity Diode test mV, V millivolt, volt (voltage) Ω, kΩ, MΩ ohm, kilohm, megohm (resistance) uA, mA, A microamp, milliamp, Amp (current) pF, nF, uF picofarad, nanofarad, microfarad (capacitance) Hz kHz hertz, kilohertz (frequency) % duty cycle...
- Page 8 AC or DC Current Measurements CAUTION: Do not make current measurements on the 10A scale for longer than 30 seconds followed by a 15 minute cool down period. Exceeding 30 seconds may cause damage to the meter and/or the test leads. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the;...
- Page 9 Temperature Measurements WARNING: To avoid electric shock, disconnect test leads from any source of voltage before making a temperature measurement. Be sure that the thermocouple has been removed before changing to any other measurement function. Insert the type K thermocouple probe into the sub-miniature temperature socket.
- Page 10 Manual Ranging The meter powers on in the autoranging mode. Press the Range key to go to manual ranging. Each press of the range key will step to the next range as indicated by the units and decimal point location. Press and hold the Range key for one second to return to autoranging.
-
Page 11: Maintenance
Maintenance WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before removing the battery/fuse cover. WARNING: To avoid electric shock, do not operate your meter until the battery/fuse cover is in place and fastened securely. This Multimeter is designed to provide years of dependable service, if the following care instructions are performed. - Page 12 Battery Replacement WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before removing the battery/fuse cover. Disconnect the test leads from the meter. Remove the rubber holster (if in place). Open the battery door by removing the screw using a Phillips head screwdriver.
-
Page 13: Warranty
Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
