Introduction

Packaging Contents

• 1 x SVID2USB2NS video capture cable
• 1 x User Manual
• 1 x Driver CD

System Requirements

• USB 2.0 equipped computer
• Pentium 4 - 1GHz or above or equivalent AMD processor
• 128MB of RAM
• Microsoft Windows

Installation

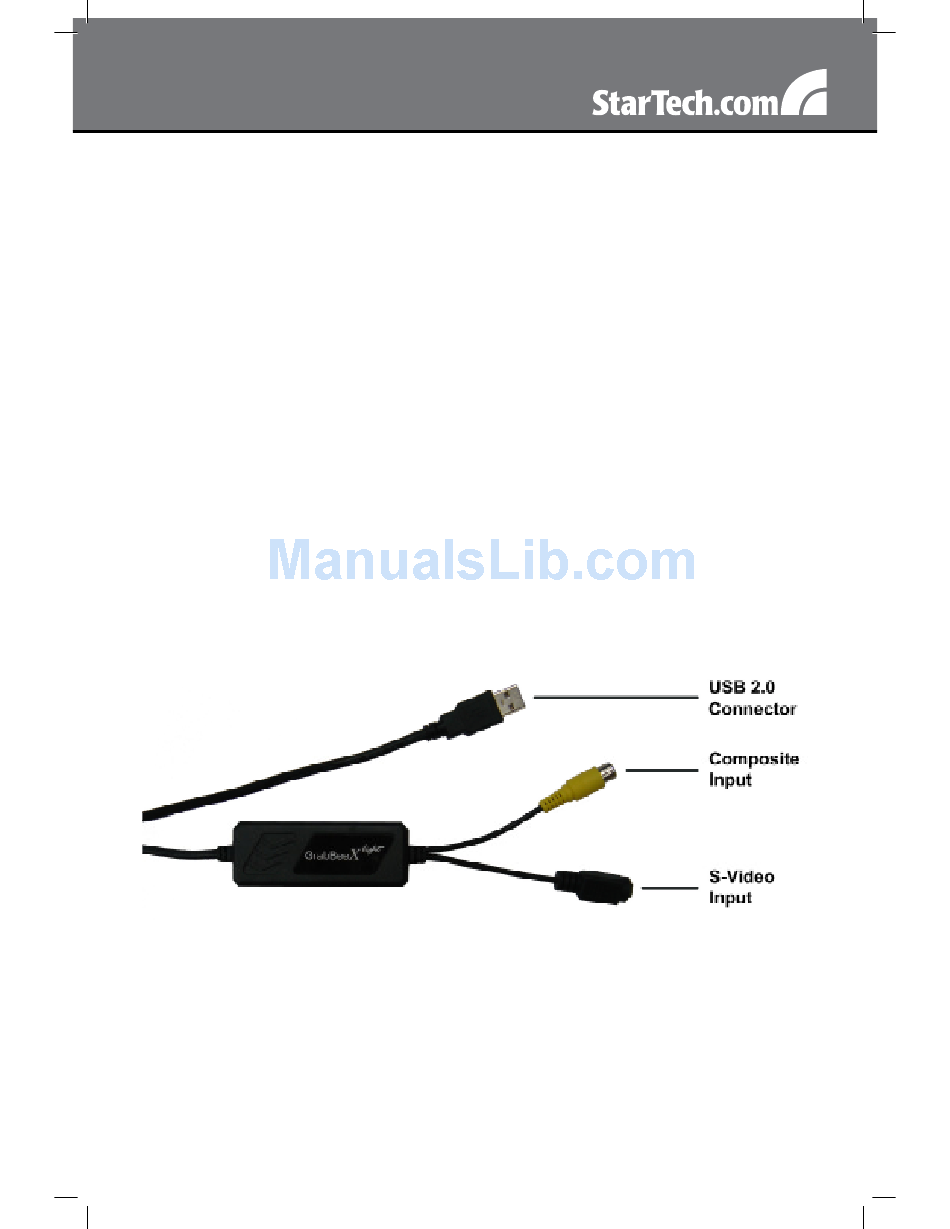

USB 2.0 connector: Connect to USB 2.0 port of your computer
S-Video input: S-Video input from external A/V device (e.g. VCR)
Composite video input: Composite video input from external A/V
Device (e.g. VCR)
* If you want capture audio, please connect audio directly to
Line-in of your Sound card.
®
2000 SP4, XP SP2 or above, or Vista
