StarTech.com SVID2USB2NS Instruction Manual

StarTech.com SVID2USB2NS Instruction Manual

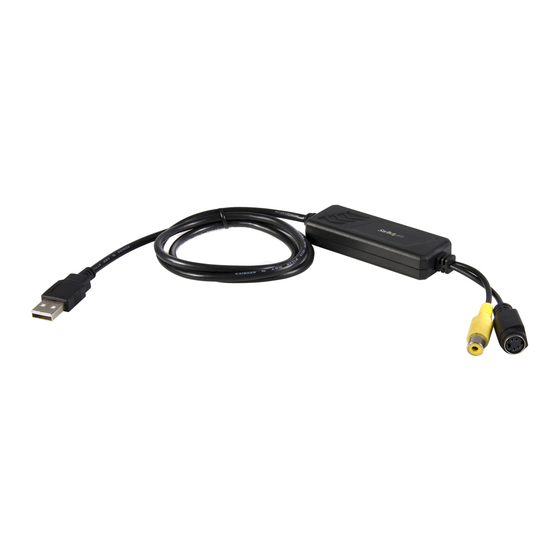

Video capture cable with composite and s-video input
Hide thumbs Also See for SVID2USB2NS:

Advertisement

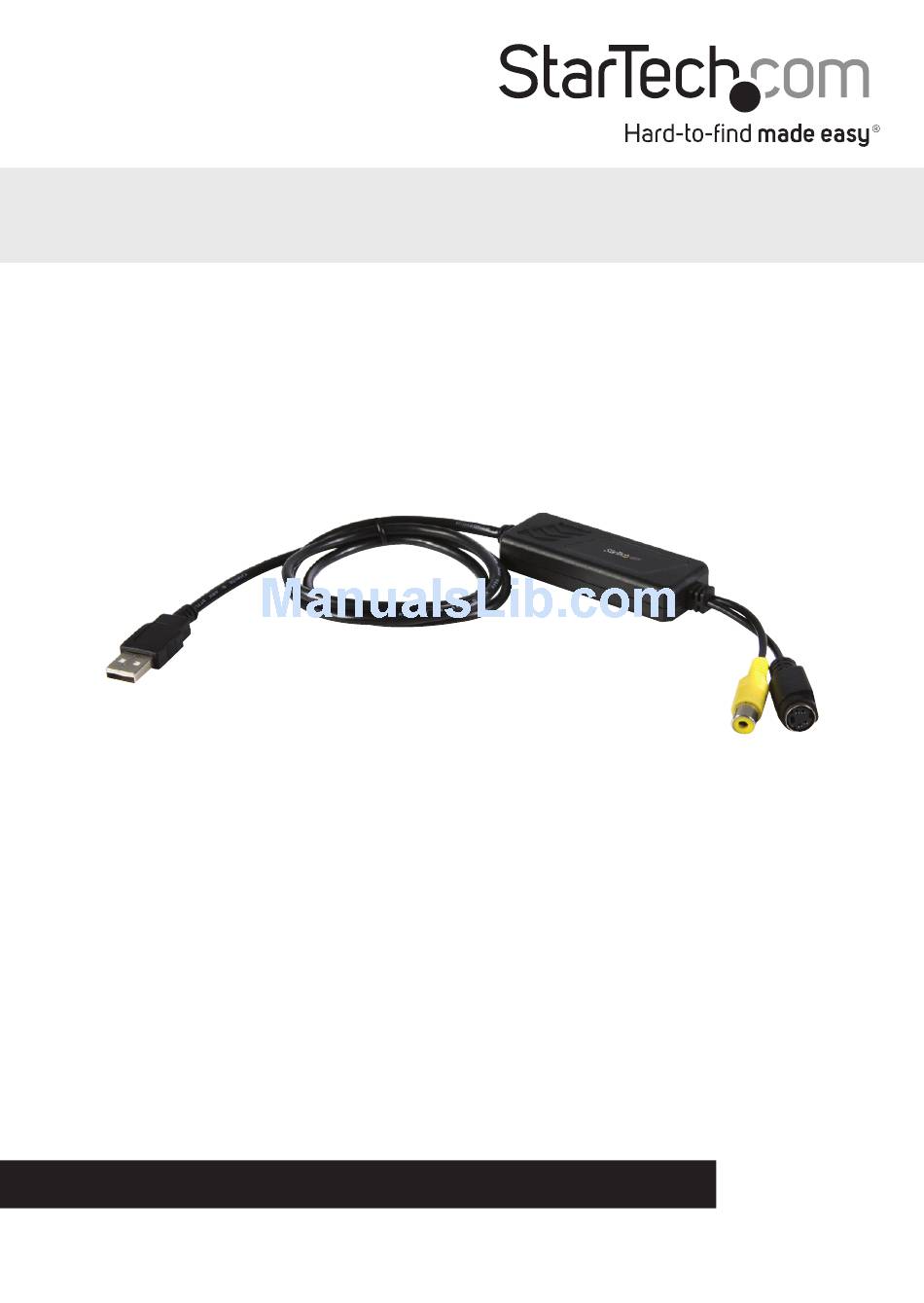

Video Capture Cable with
Composite and S-Video Input
SVID2USB2NS
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/08/2012
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVID2USB2NS and is the answer not in the manual?

Questions and answers

Summary of Contents for StarTech.com SVID2USB2NS

  • Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/08/2012...
  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Introduction ....................1 Installation ....................2 Driver Installation ............................2 Application Installation ........................... 3 Hardware Installation ..........................4 Operation ..............................4 Option ......................5 General ................................5 Encoder Property ............................5 Troubleshooting ..................7 Specifications ..................9 Technical Support ..................10 Warranty Information ................10 Instruction Manual...
  • Page 4: Introduction

    Capture Cable is a great solution for mobile applications and integrates seamlessly with laptop and desktop computers. If you require audio with your video capture please see StarTech.com’s S-Video to USB 2.0 Video Capture Cable(SVID2USB).
  • Page 5: Installation

    * If you want capture audio, please connect audio directly to Line-in of your Sound card. Driver Installation Note: Do not connect SVID2USB2NS adapter to computer USB port before driver installation! Note: Please make sure your computer has USB2.0 port correctly installed and functioning !! ( Please update your Windows®...
  • Page 6: Application Installation

    Application Installation 1. Please insert “Multimedia Installation Kit” CD-ROM into your CDROM drive; AutoRun will play; (if AutoRun does not run, please go to “My Computer” and double click the CD-ROM drive). 2. From the menu, please select the “GrabBeeX-light” product. 3.
  • Page 7: Hardware Installation

    Snapshot : Click to see your capture still image fi les Hardware Installation After the computer restarts, please plug the SVID2USB2NS device into the computer’s USB 2.0 port; System will now detect the new device and install it automatically. Please check whether the SVID2USB2NS driver was installed successfully in your computer.
  • Page 8: Option

    Option General • Lists your hard disk space information. • Snapshot default storage path : The location to saved captured image fi les. • Clip default storage path : Location to saved recorded video fi les. • Video Format : Choose your correct video format input. • Set Recording Time : Sets Recording Time length.
  • Page 9 You can “Save”, “Save All”, “Delete”, “Delete All” image fi les, fi le name’s format is “Mddhhmmssn”. M : Month (Jan->1, Feb->2….Oct->O, Nov->N, Dec->D) dd : Date; hh : Hour; mm : Minute; ss : Second n : Number Album: The Album will show all capture fi les including image and video. Please click “Clips”...
  • Page 10: Troubleshooting

    Q3 : Why is the resolution always in 320x240 under preview mode? A3 : It’s because you plugged the SVID2USB2NS in a USB 1.1 port, or perhaps even though your USB port is 2.0, it may not have upgraded to USB 2.0 drivers. Please make sure your USB port is USB 2.0, and have already upgraded the USB 2.0 host driver...
  • Page 11 Q7 : How can I get a minimum number of dropped frames during video capture? A7 : The best recording performance depends on your computer system performance, but you can also take some steps described below to improve your performance. • Try lowering the resolution format you record in.
  • Page 12: Specifications

    Specifications Video Input 1x RCA composite, 1x S-Video Audio Input None Video System NTSC, PAL, SECAM MPEG (720x480@NTSC, 720x576@PAL), Video Format MPEG4 (320x240), AVI (352x288, 352x240, 320x240) Still Image Format JPG, BMP, TIFF 25 FPS @ 720x576 (PAL), 30 Performance FPS @ 720x480 (NTSC) Power 5VDC, 350mA (max) through USB...
  • Page 13: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
